4. Preparation (continued)
Contents
4.4 Preparing the STR (continued)
4.4.1 Covers and Height (continued)

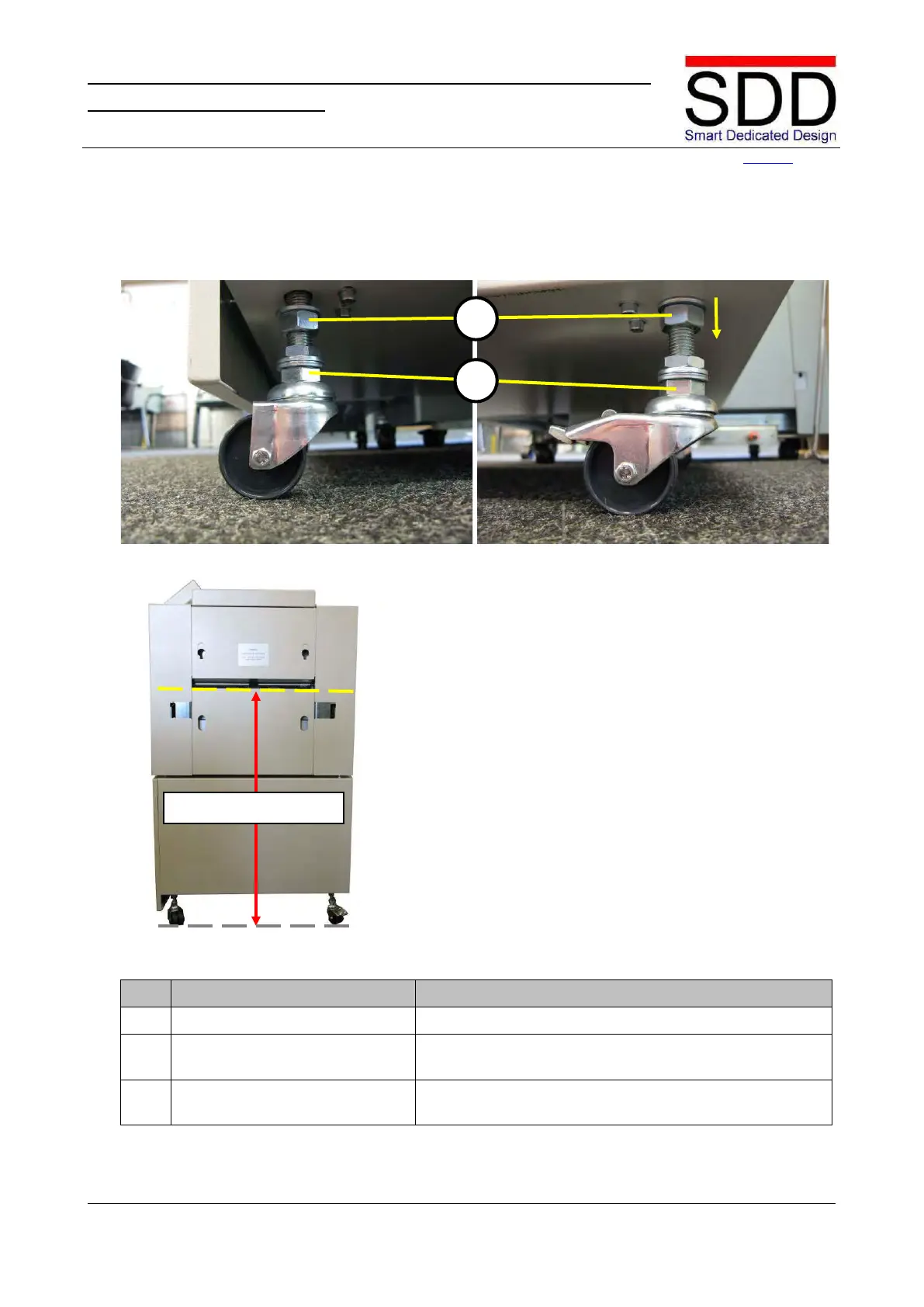

Fig. 4.4.1.4 Fig. 4.4.1.5
Fig. 4.4.1.6
Step
Action
Remarks
5.
Loosen Upper Nuts.
Loosen nut [B] on all wheels (Fig. 4.4.1.4 & 4.4.1.5).
6.
Adjust STR Infeed Height.
Adjust STR Infeed Height by turning wheelnut [C] on all
wheels (Fig. 4.4.1.4 & 4.4.1.5).
7. Set lower rim of STR Infeed to approximately 86 cm
above the floor. (Fig. 4.4.1.6)
C
B
≈ 86cm
