4. Preparation (continued)
Contents
4.4 Preparing the STR (continued)
4.4.2 Wheel Cover

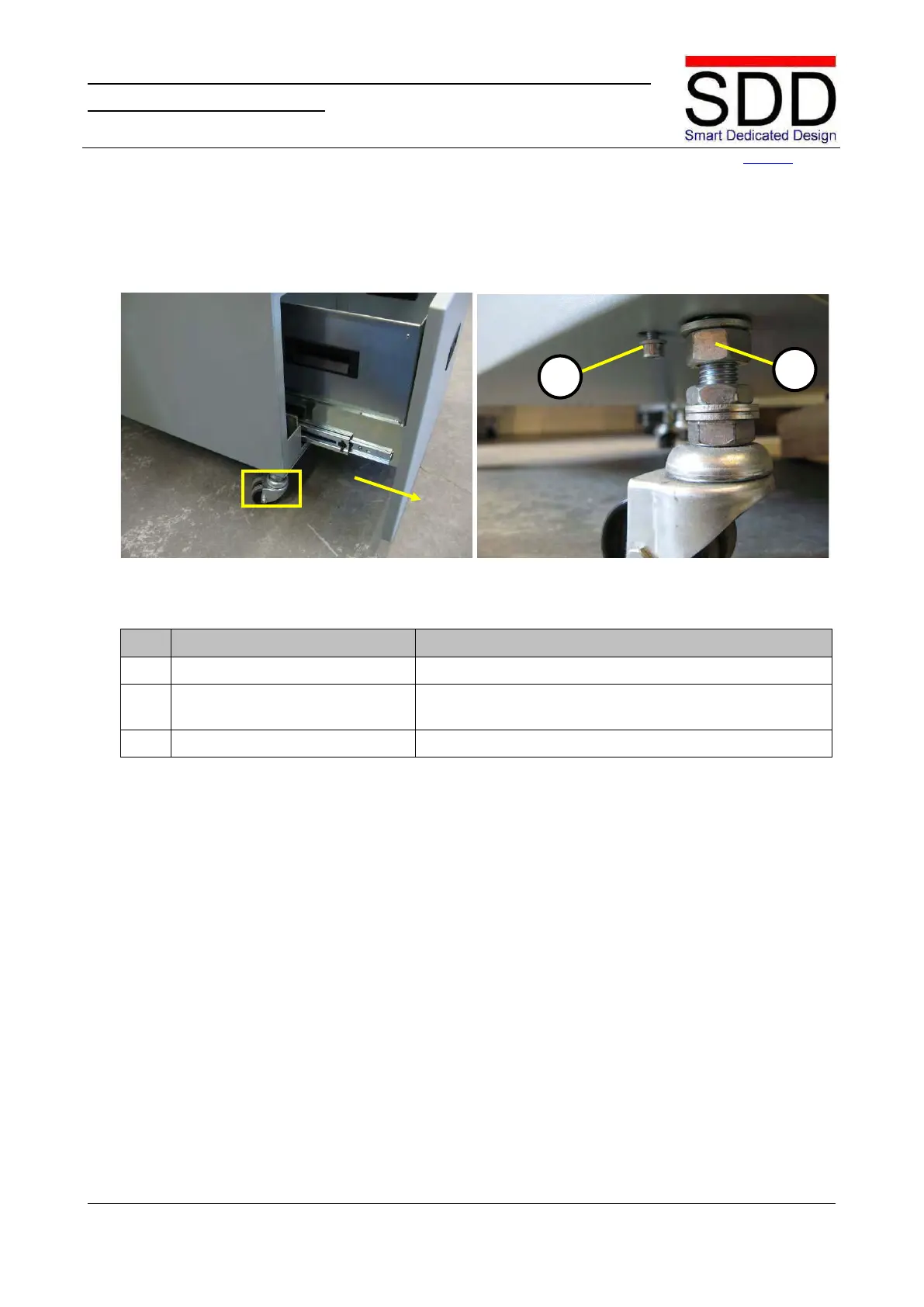

Fig. 4.4.2.1 Fig. 4.4.2.2
Step
Action
Remarks
1.
Open Trim Waste Drawer
(Fig. 4.4.2.1)
2. Loosen Allen screw Loose Allen screw [A] on the Front Left Caster (Fig.
4.4.2.1 & 4 4.2.2).
3.
Upper Wheel Nut
Make sure Upper Wheel Nut [B] is (still) loosened.
A
B
