Smart Dedicated Design STR7202 - Page 33

Installation Manual STR7202 TAG4 & SFM7704 TAG1
DBCI-0512-0052-V013
STR7202 2-Side Trimmer & SFM7704 Square Fold Module
Name: RI01
Date: 29-3-2017
Page: 33 / 72
5. Installation (continued)
Contents
5.1 Mechanical Installation (continued)
5.1.3 SFM behind STR

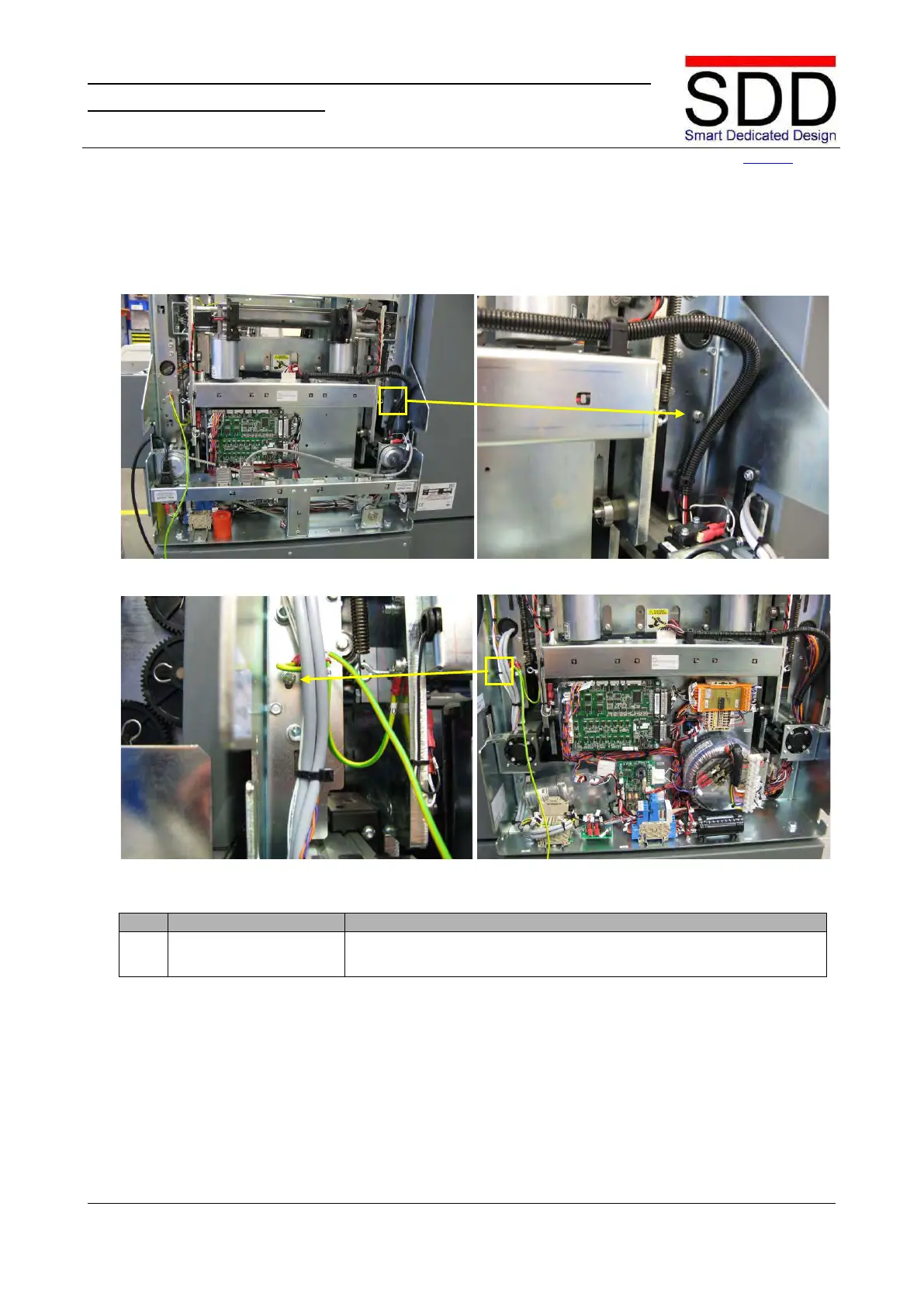

Fig. 5.1.3.1 Fig. 5.1.3.2
Fig. 5.1.3.3 Fig. 5.1.3.4
Step
Action
Remarks
1.
Check Lower Outfeed
Roller position.
For SFM behind STR this Roller should be in the high position.
Correct if necessary. (Figs. 5.1.3.1 – 5.1.3.4.)
