5. Installation (continued)
Contents
5.1 Mechanical Installation (continued)
5.1.3. SFM behind STR (continued)

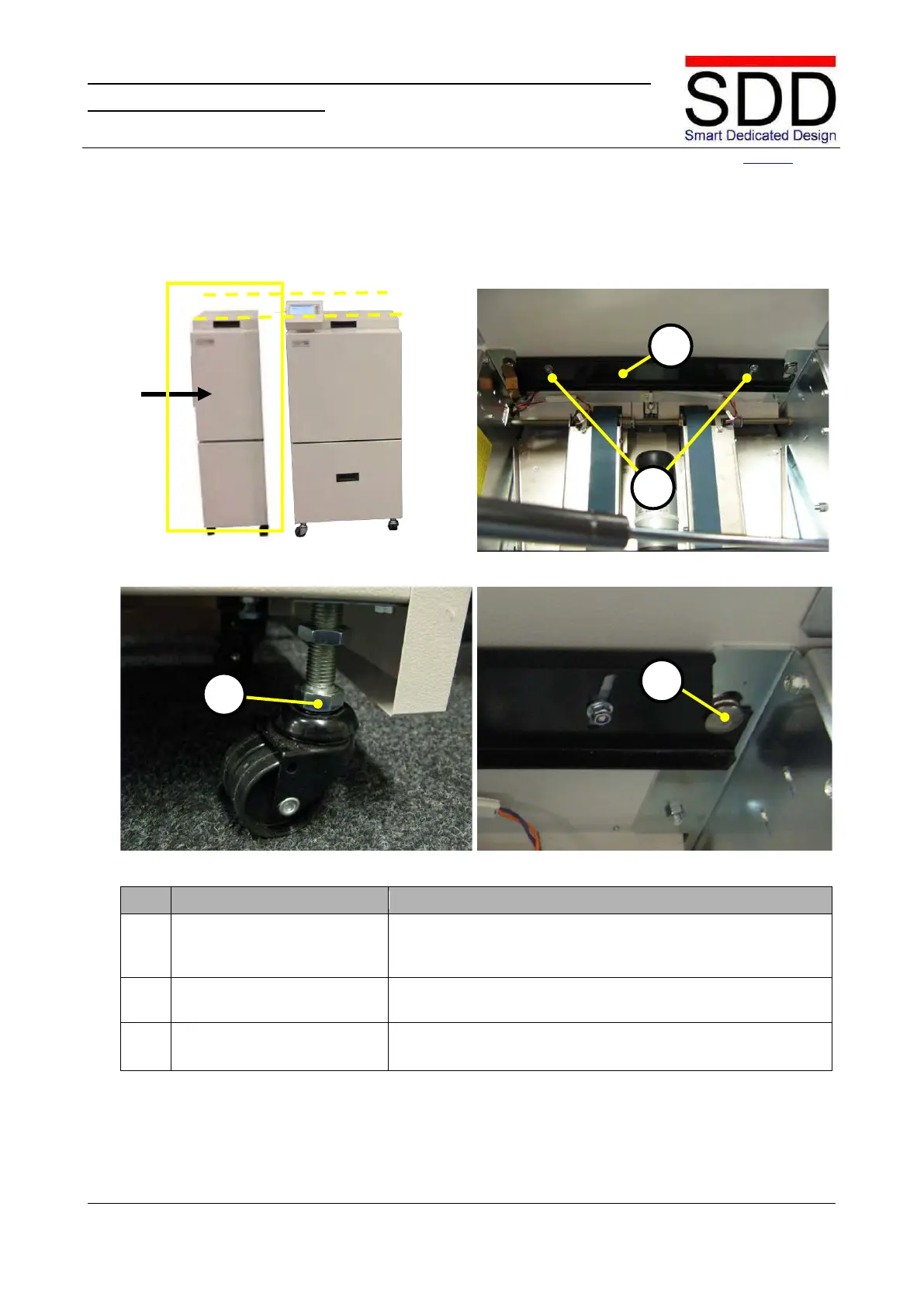

Fig. 5.1.3.5 Fig. 5.1.3.6
Fig. 5.1.3.7 Fig. 5.1.3.8
Step
Action
Remarks
1. Positioning SFM Open the SFM Top cover and lower the Locking Bracket [A]
by loosening Hex Nuts [B] (Fig. 5.1.3.6) and position the SFM
behind the STR (Fig. 5.1.3.5).
2.
Adjust height SFM
Adjust the height of the SFM by turning all wheel bolts [C]
(Fig. 5.1.3.7).
3. Check Fitting Make sure the Positioning Studs [D] of the STR fit in the
Locking Bracket of the SFM (Fig. 5.1.3.8).
C
D
B
A
