Smart Dedicated Design STR7202 - Page 37

Installation Manual STR7202 TAG4 & SFM7704 TAG1
DBCI-0512-0052-V013
STR7202 2-Side Trimmer & SFM7704 Square Fold Module
Name: RI01
Date: 29-3-2017
Page: 37 / 72
5. Installation (continued)
Contents
5.1 Mechanical Installation (continued)
5.1.4 Belt Stacker on STR (continued)

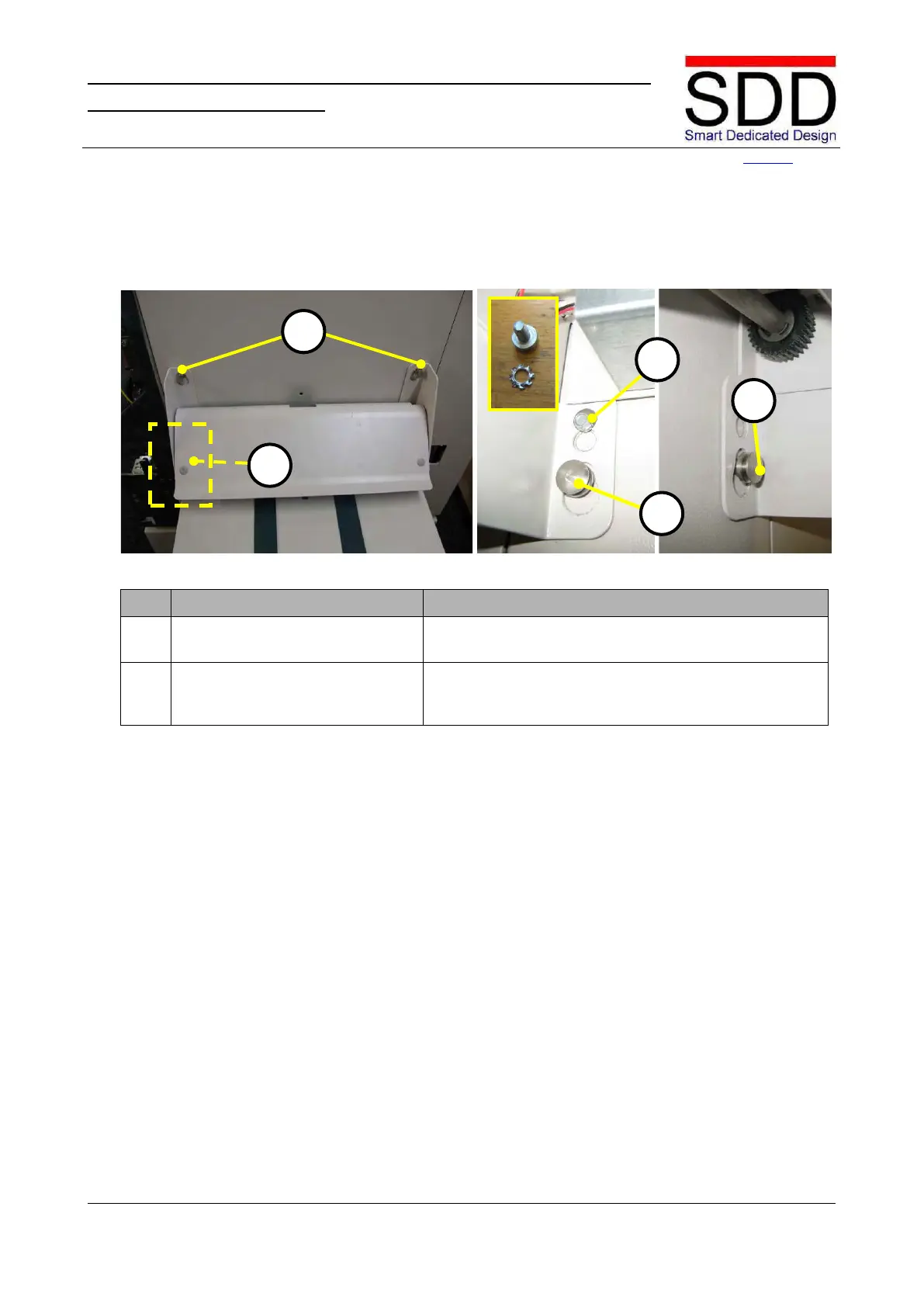

Fig. 5.1.4.5 Fig. 5.1.4.6
Step
Action
Remarks
2.
Mount Belt Stacker.
Mount the Belt Stacker on the Studs (A) and (B0 on the
STR Upper Outfeed cover (Fig. 5.1.4.5 & 5.1.4.6)
3. Secure Belt Stacker. Secure the Belt Stacker with a Taptite [C] and a Washer
M4 at the Right side underneath the Belt Stacker
(Fig.5.1.4.6)
A
C
C
B
B
