5. Installation (continued)
Contents
5.2. Electrical Installation (continued)
5.2.3 Installing Start/Stop Interface in Canon Booklet Trimmer F1
IMPORTANT:
Make sure to have the latest software installed in the Canon Booklet Trimmer F1.

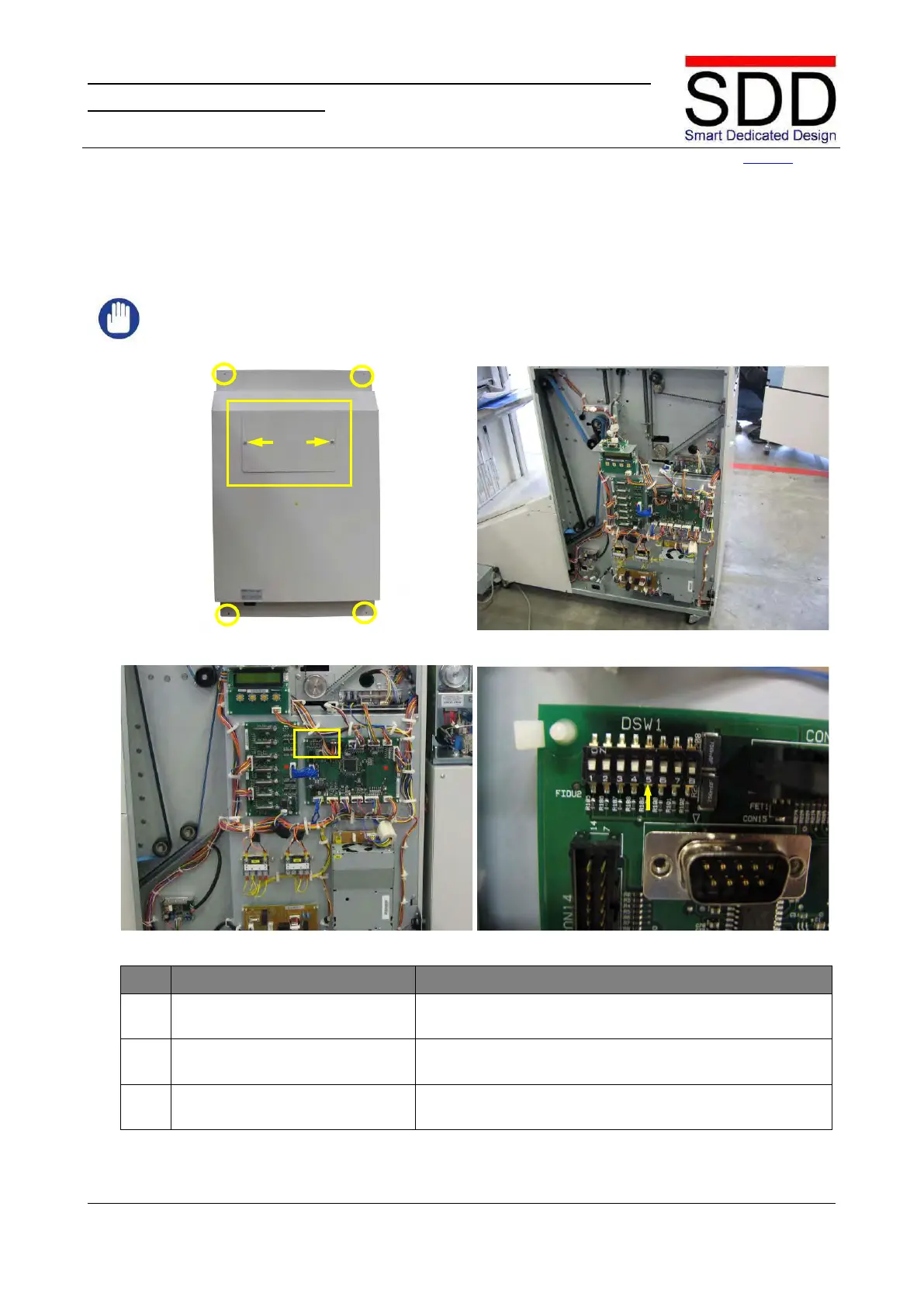

Fig. 5.2.3.1 Fig. 5.2.3.2
Fig. 5.2.3.3 Fig. 5.2.3.4
Step
Action
Remarks
1.
Remove Hatch.
Loosen two screws and lift Hatch of Rear Cover (Fig.
5.2.3.1).
2.
Remove Rear Cover.
Remove 4 x bolts from Rear Cover (Fig. 5.2.3.1) and
remove cover (Fig. 5.2.3.2).
3.
Set Dip Switch.
Locate DIP switch DSW1 (Fig. 5.2.3.3) and set #5 of
DSW1 to ‘ON’ (Fig. 5.2.3.4).
