5. Installation (continued)
Contents
5.2. Electrical Installation (continued)
5.2.3 Installing Start/Stop Interface in Canon Booklet Trimmer F1 (continued)

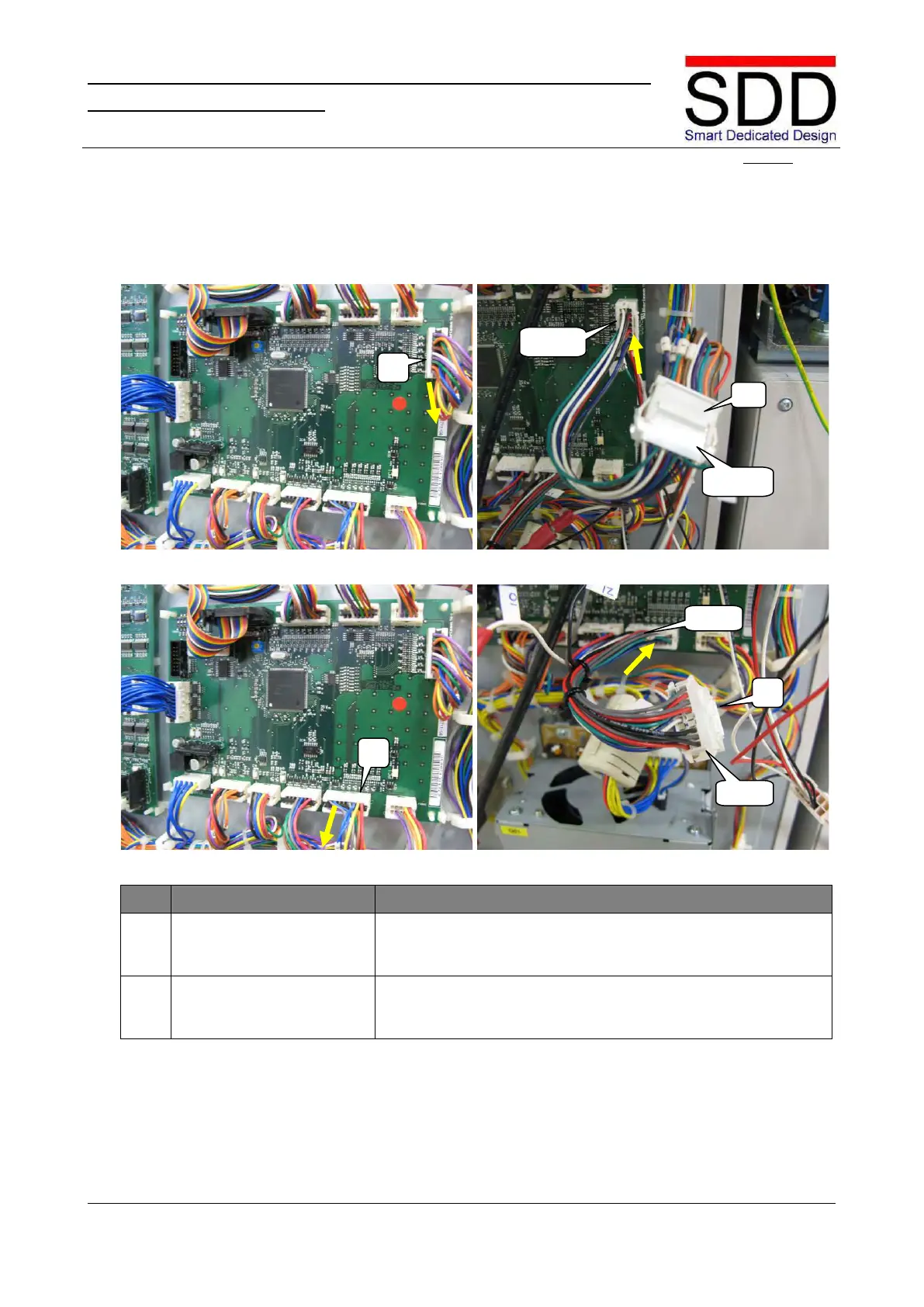

Fig. 5.2.3.9 Fig. 5.2.3.10
Fig. 5.2.3.11 Fig. 5.2.3.12
Step
Action
Remarks
6.
Install Start/Stop Interface
Cable, A part.
- Remove Connector [A] from CON5 on PCB (Fig. 5.2.3.9).
- Install [CON3] in CON5 on PCB (Fig. 5.2.3.10).
- Plug Connector [A] in [CON4] (Fig. 5.2.3.10).
7. Install Start/Stop Interface
Cable, B part.
- Remove Connector [B] from CON8 on PCB (Fig. 5.2.3.11).
- Install [CON1] in CON8 on PCB (Fig. 5.2.3.12).
- Plug Connector [B] in [CON2] (Fig. 5.2.3.12).
CON3
A
A
CON4
B
B
CON1
CON2
