Smart Dedicated Design STR7202 - Page 51

Installation Manual STR7202 TAG4 & SFM7704 TAG1
DBCI-0512-0052-V013
STR7202 2-Side Trimmer & SFM7704 Square Fold Module
Name: RI01
Date: 29-3-2017
Page: 51 / 72
5. Installation (continued)
Contents
5.2. Electrical Installation (continued)
5.2.4 Installing Start/Stop Interface in Canon D1 (continued)

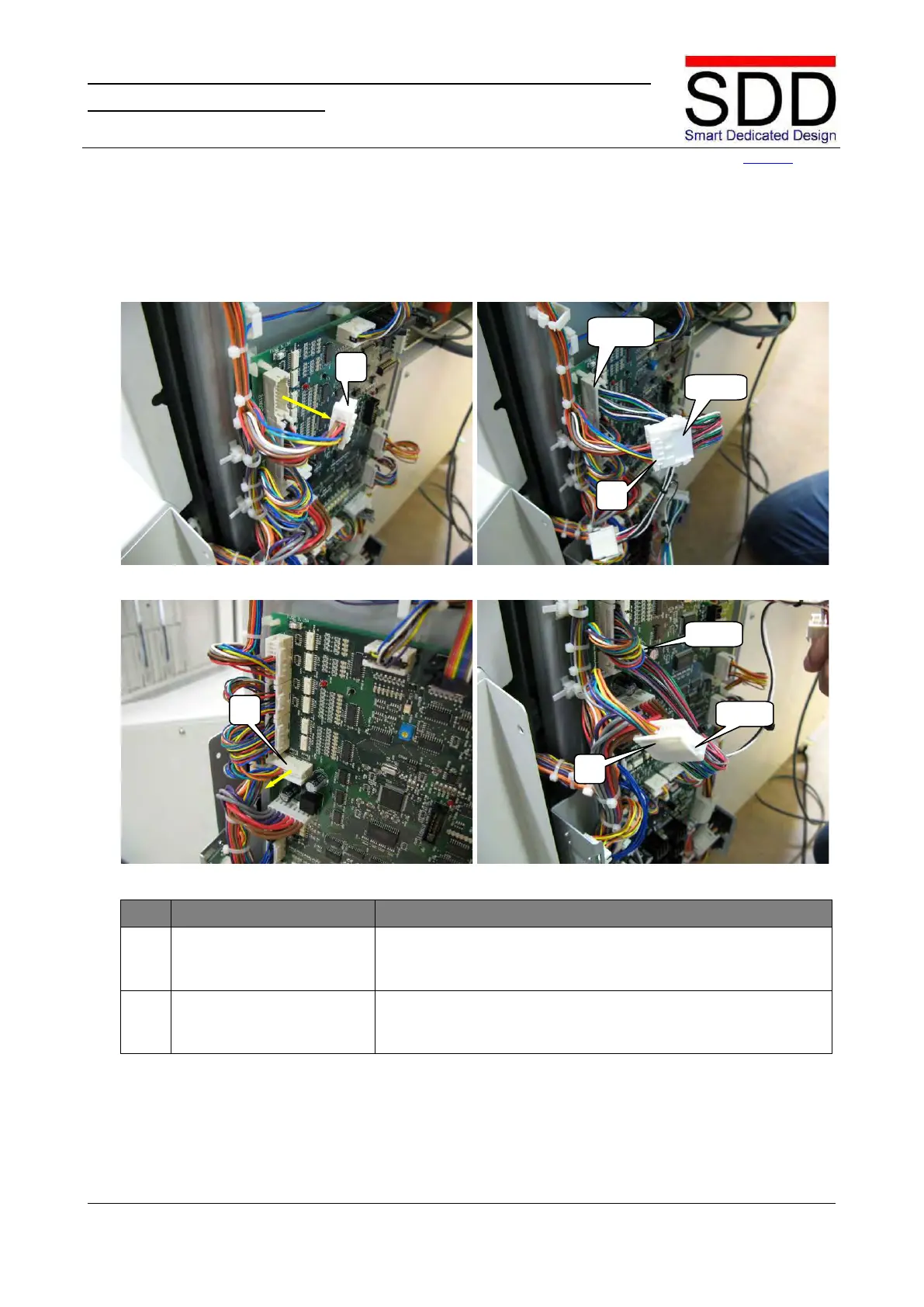

Fig. 5.2.4.9 Fig. 5.2.4.10
Fig. 5.2.4.11 Fig. 5.2.4.12
Step
Action
Remarks
6.
Install Start/Stop Interface
Cable, A part.
- Remove Connector [A] from CON12 on PCB (Fig. 5.2.4.9).
- Install [CON3] in CON12 on PCB (Fig. 5.2.4.10).
- Plug Connector [A] in [CON4] (Fig. 5.2.4.10).
7.
Install Start/Stop Interface
Cable, B part.
- Remove Connector [B] from CON13 on PCB (Fig. 5.2.4.11).
- Install [CON1] in CON13 on PCB (Fig. 5.2.4.12).
- Plug Connector [B] in [CON2] (Fig. 5.2.4.12).
CON3
CON4
A
A
B
B
CON1
CON2
