5. Installation (continued)
Contents
5.2. Electrical Installation (continued)

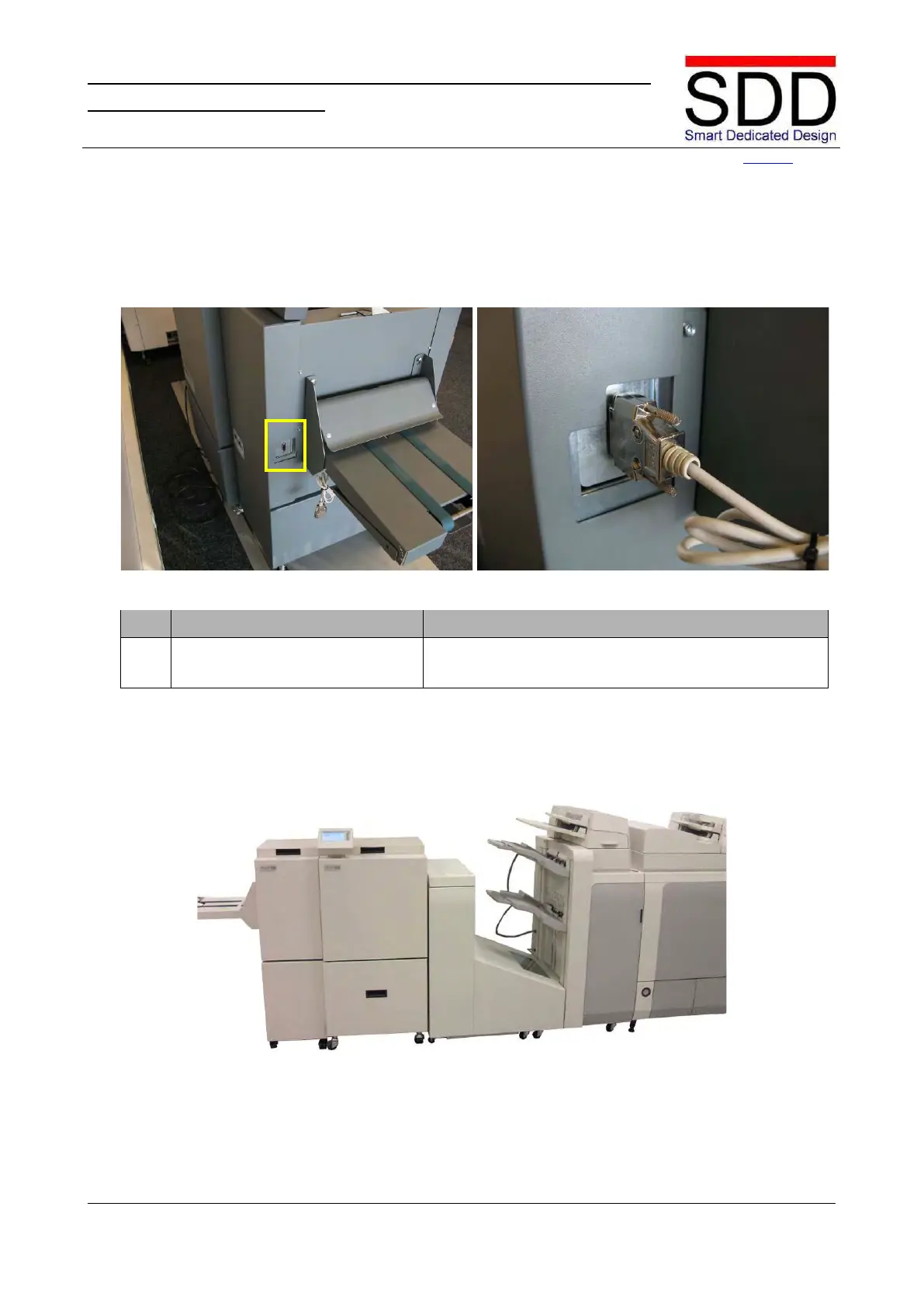

5.2.8 Connecting Belt Stacker to SFM
Fig .5.2.8.1 Fig. 5.2.8.2
Step
Action
Remarks
1. Connect Belt Stacker
Communication Cable.
Connect the Communication cable of the Belt Stacker to
the connector on the SFM (Fig. 5.2.8.1 & 5.2.8.2).
