SmarTap e-Valve - Plan System Layout; Prepare for Installaiton

19 of 51

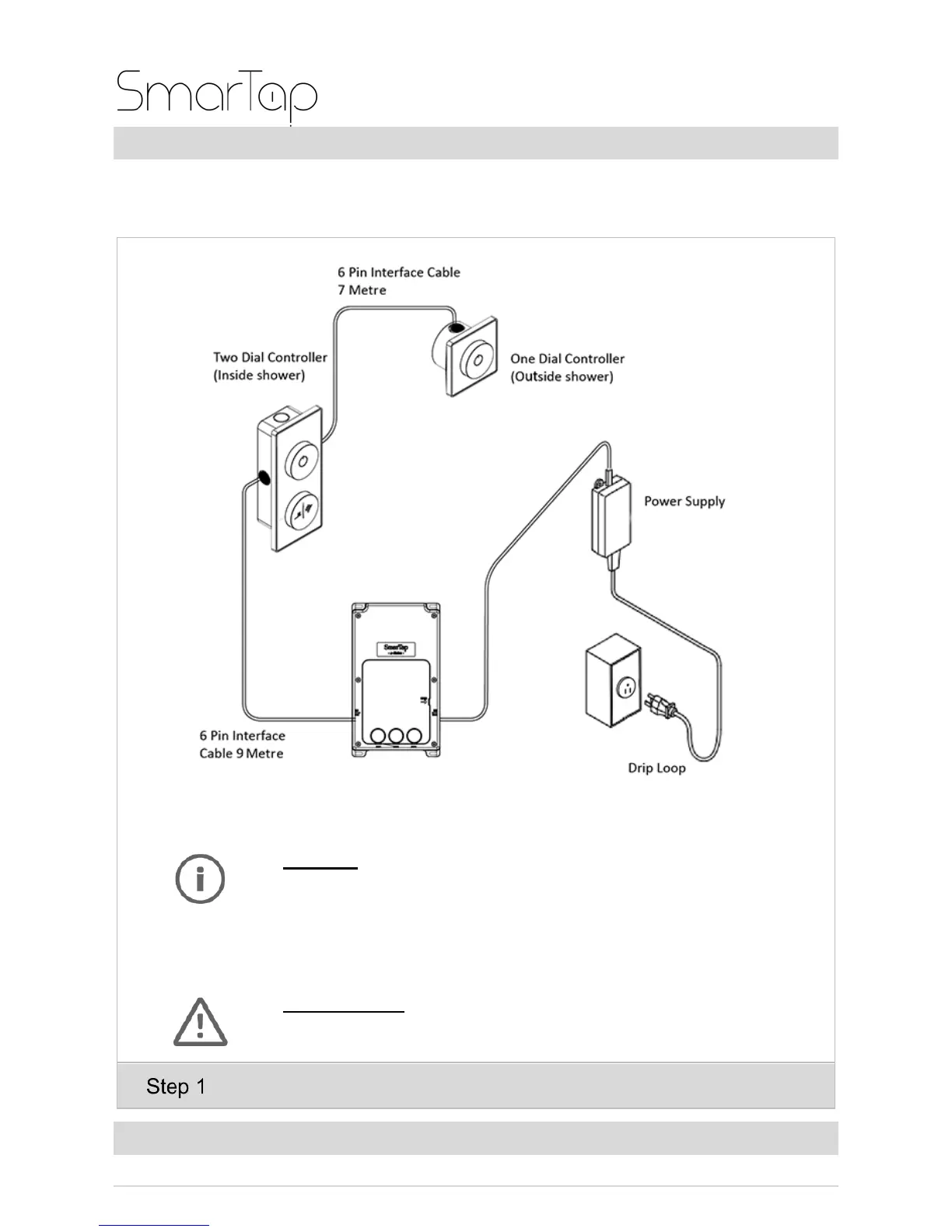

Plan System Layout
Determine the locations of all required components before beginning
installation.
1. Prepare the installation location for the e-Valve.
NOTE
LEAVE EXTRA 15 CM SPACE ON EACH SIDE FOR
FUTURE CABLE CONNECTIONS.
2. Prepare installation location for controllers.
3. Prepare installation location for the AC/DC power supply.
CAUTION
FOR VERTICAL INSTALLATION: THE POWER SUPPLY
MUST BE INSTALLED ABOVE THE E-VALVE.
Prepare for Installaiton
Prepare locations for e-Valve unit ,controllers and Power supply
