Smartgen HGM410 User Manual

HGM400 Series Genset Controller User Manual
HGM400 Series Genset Controller ISSUE 2015-05-27 Version 1.6 Page 37 of 44
previous setting menu.

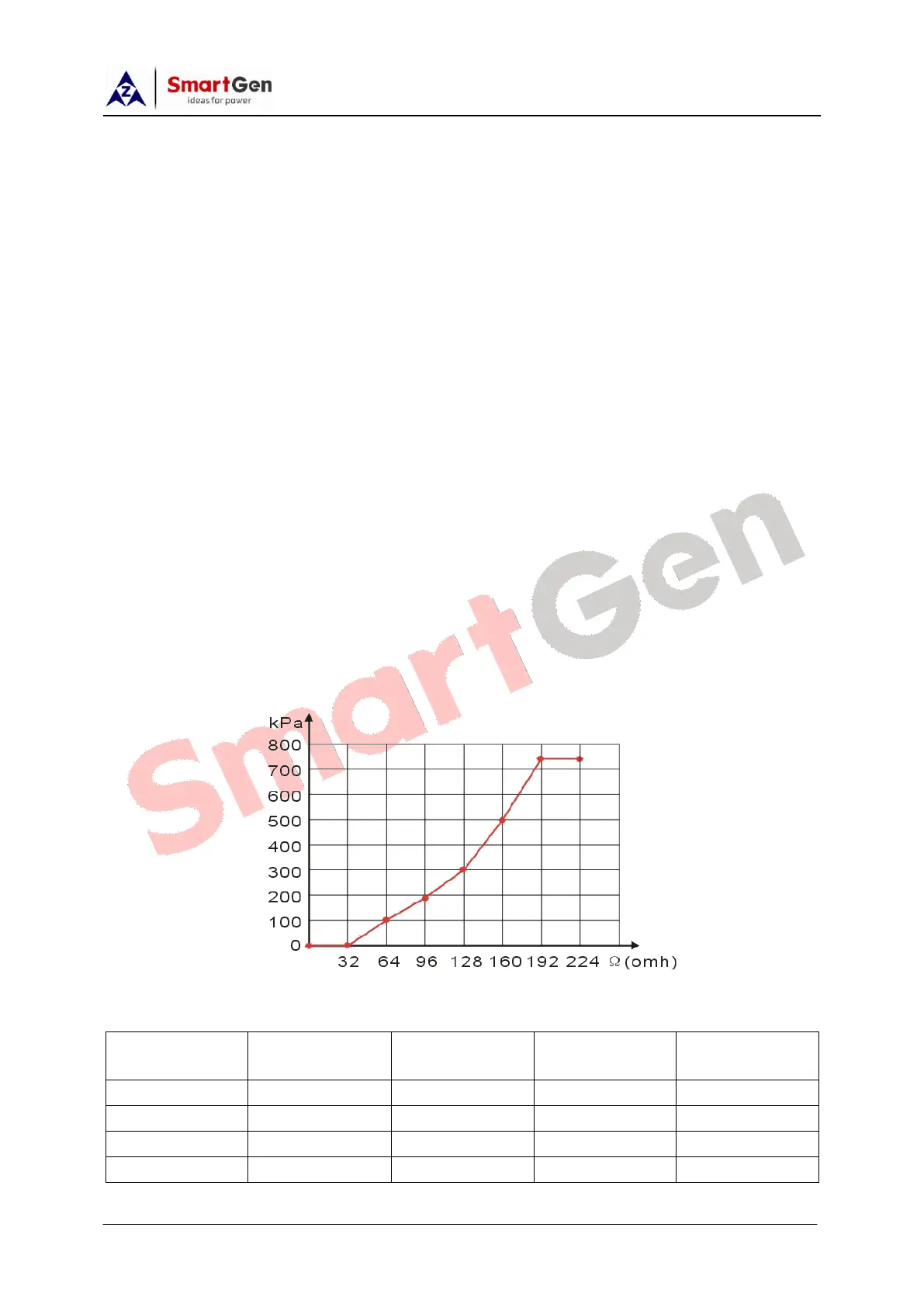

9 SENSOR SETTING
1) When reselect sensors, the sensor curve will be transferred into the standard value.
For example, if temperature sensor is SGH (120°C resistor type), its sensor curve
is SGH (120°C resistor type); if select the SGD (120°C resistor type), the
temperature sensor curve is SGD curve.
2) When there is difference between standard sensor curves and using sensor, user
can adjust it in “curve type”.
3) When input the sensor curve, X value (resistor) must be input from small to large,
otherwise, mistake occurs.
4) If select sensor type as “None”, sensor curve is not working and LCD does not
display the sensor information.
5) If there is no oil pressure sensor, but there is low oil pressure alarm switch, user
must set the oil pressure sensor as “None”, otherwise, maybe low oil pressure
shutdown occurs.
6) The headmost or backmost values in the vertical coordinates can be set as same
as below,
Common unit conversion table
N/m
2
(pa)
kgf/cm
2
bar
(p/in
2
.psi)
1Pa
1
1.02x10
－
5
1x10
－
5
1.45x10
－
4
1kgf/cm
2
9.8x10
4
1
0.98
14.2
1bar
1x10
5
1.02
1
14.5
1psi
6.89x10
3
7.03x10
－
2
6.89x10
－
2
1

Smartgen HGM410 Specifications

General

Model	HGM410
Type	Generator Controller
Display	LCD
Frequency	50/60Hz
Communication	RS485
Protection Level	IP55 (front panel)
Input Voltage	DC 8V to 35V
Power Consumption	MAX 3W
Speed Sensor Frequency	10Hz-10kHz
Relay Output (Fuel)	7A DC28V
Relay Output (Start)	7A DC28V
Relay Output (Programmable)	5A/250V AC
Protection Features	Over Voltage, Under Voltage, Over Frequency, Under Frequency, Over Current
Operating Temp.	-25°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity	5~95%RH
