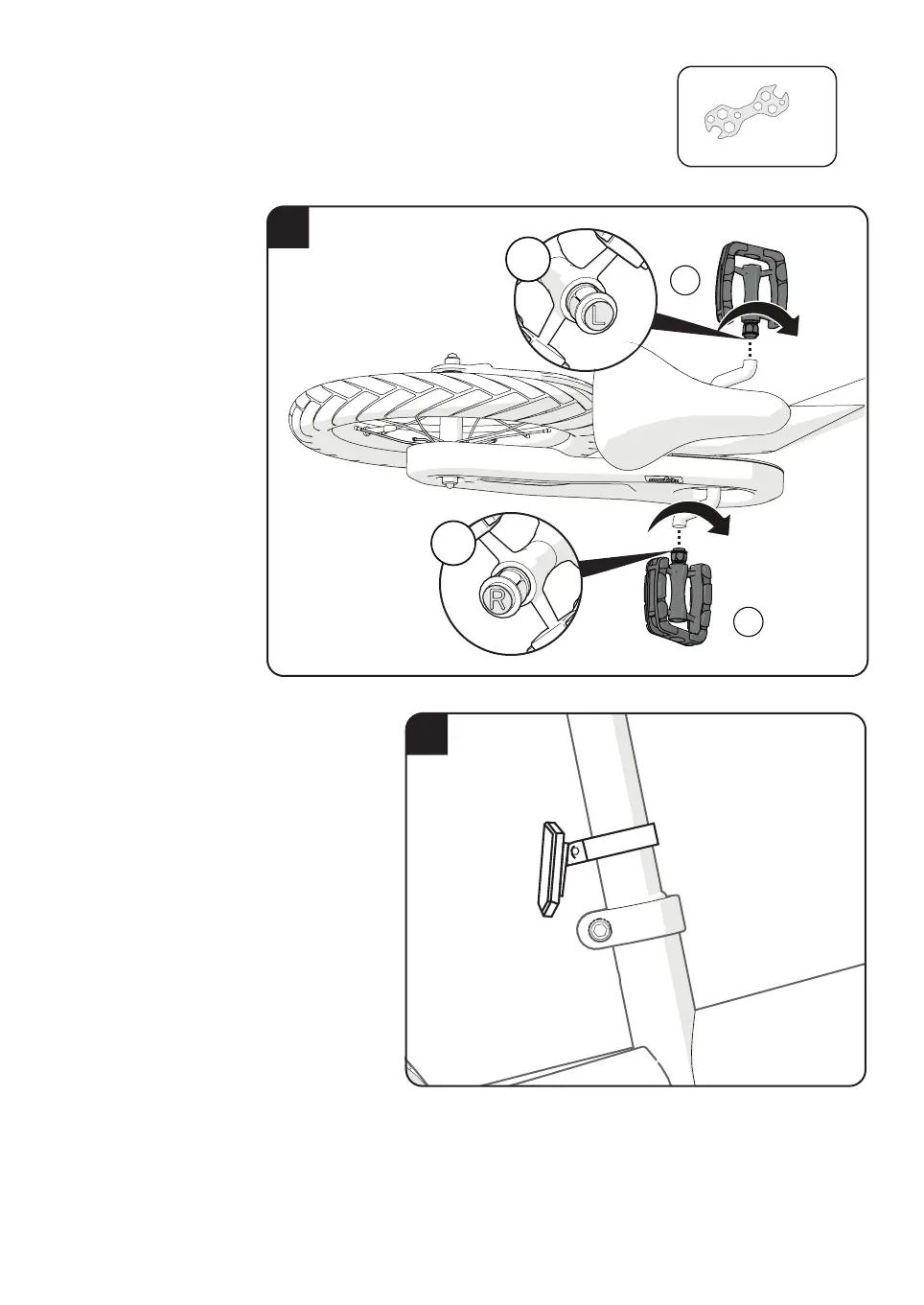

For screwing the pedals use the open wrench (15mm /0.6” ).
Step 7:
L
R
2
8
NOTE:
Be careful not to over-tighten, as it would
damage the Clamp.
Place the Seat Post red reflector
carefully so that it
points straight backward. Then tighten
the Clamp Screw.
Step 8:
R
R
L
L
NOTE:
Pay careful attention
to the side pedals
according to the
presented mark on
the pedal side.
17mm / 0.7''
15mm / 0.6''
