D. Replace the screw and
secure it for locking purpose.
WARNINGS:
The chain must stay on the sprockets. In case it
fail to operate properly.
WARNINGS:
Do not try to repair chain on your own. If any
problem arises with the chain, go to a bicycle
service shop to get the repair work done.
Chain Adjustment
Adjustment:

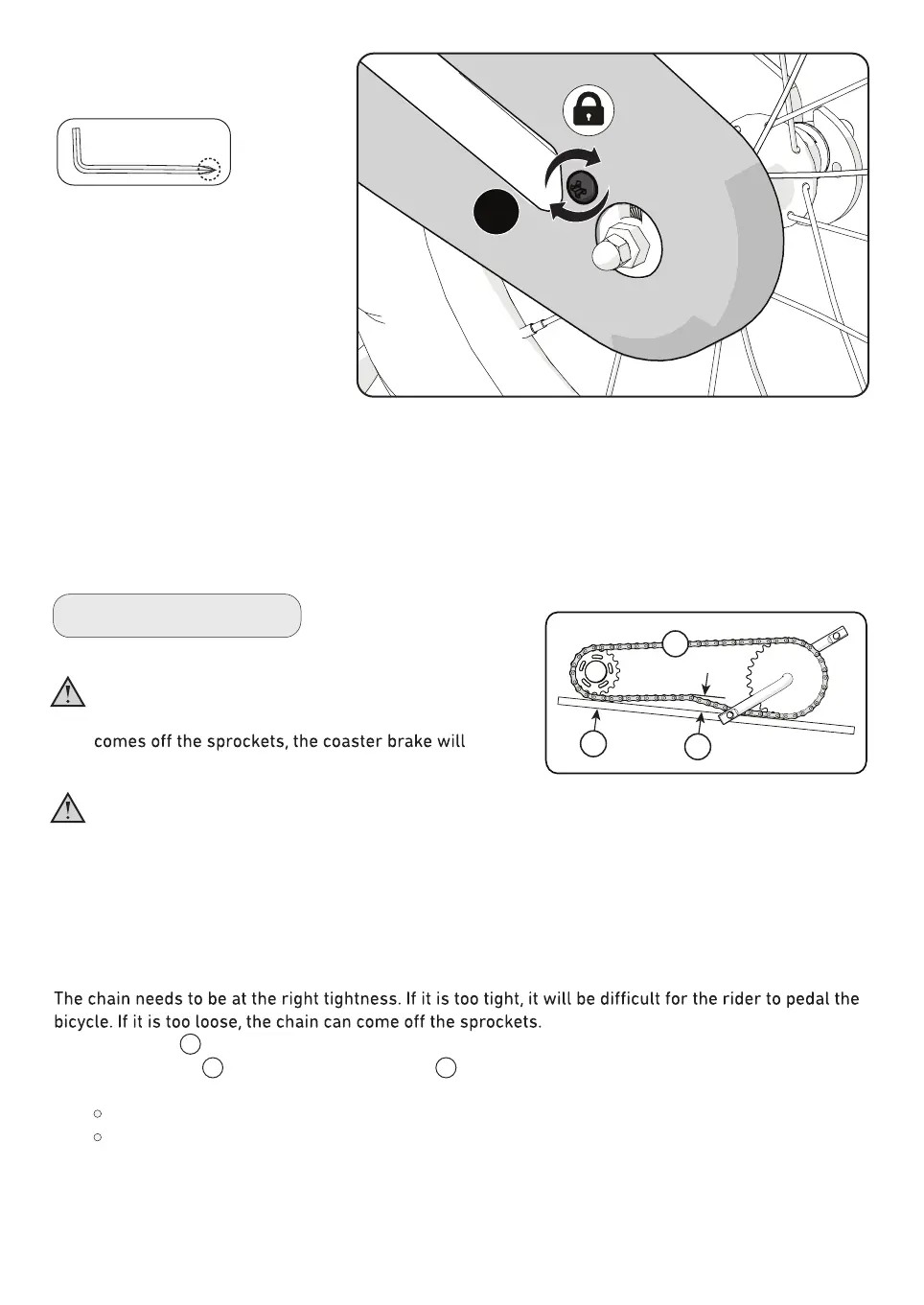

When the chain C is at the correct tightness, the rider can rotate the crank freely and pull it no more
than one-half inch A away from a straightedge B as shown in the image. You need to adjust the
tightness of the chain by following these guidelines:
The axle nuts of the rear wheel must be loosened.
Shift the rear wheel forwards or backwards as required.
A
B
C
NOTE: Ensure the rear wheel is in the
centre of the bicycle frame.
Maintain the wheel in this position and
tighten securely.
6mm/0.23’’
D
