3 Setting up your device
The recorder can pair up to 4 cameras.
To pair the camera with the recorder, make sure it is within a 1m range.
a) Install the antennas onto the four cameras.
b) Connect the camera to the AC adapter.
c) Right click the mouse.
d) Press ‘Wireless add’; the NVR will now search the camera automatically.
e) Press the reset button on the camera for 5 seconds, it will match with the NVR
automatically.
f) After matching click ‘exit’ on the screen, matching is now complete.
NOTE: default valid time is within 10 minutes after the camera starts. If matching
exceeds this time, it will exit matching mode automatically. Press the reset button
on the camera for 10 seconds and go back to step A.
ð Repeat above steps for all four cameras.

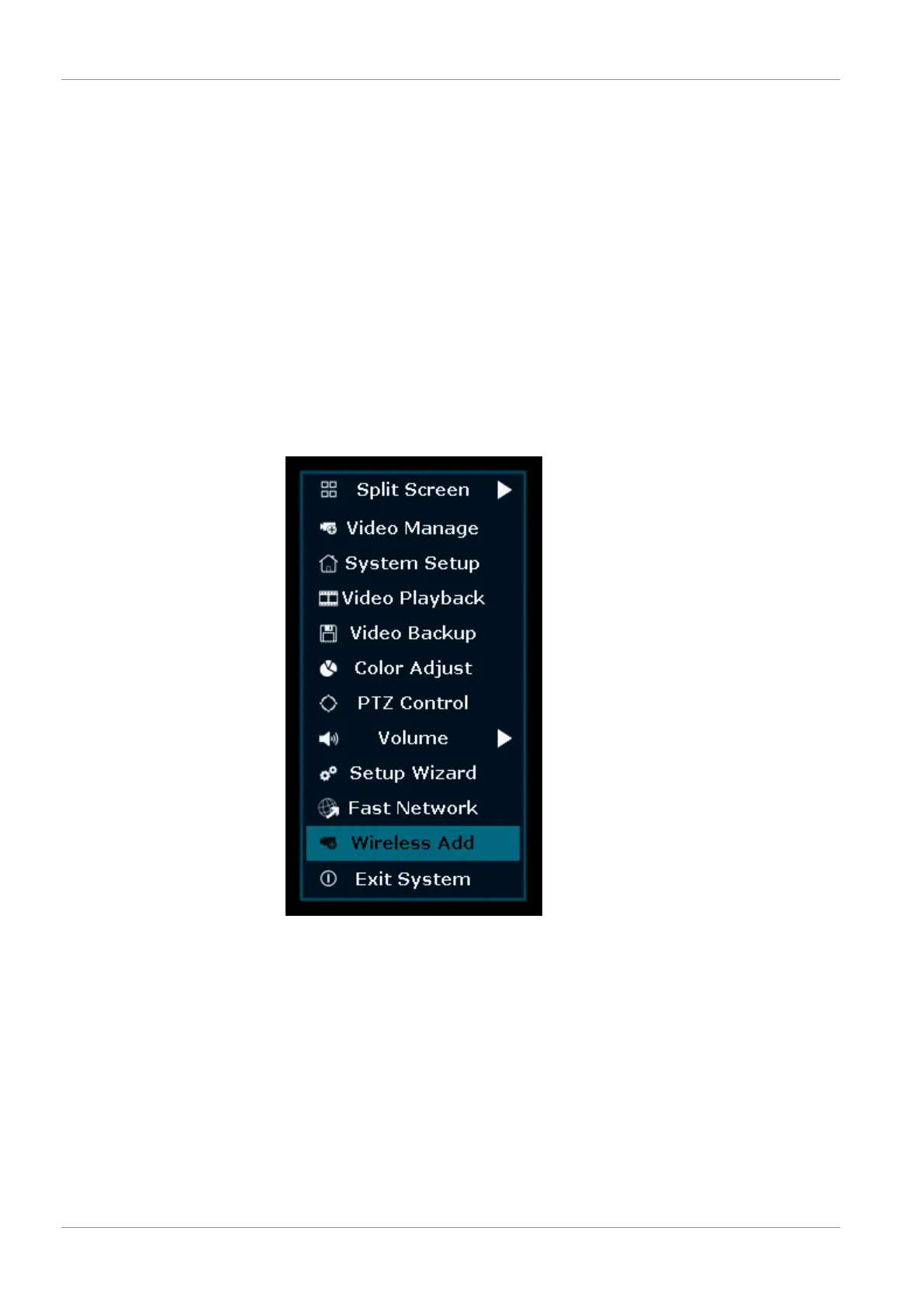

Illustration4: Menu overview- Wireless add
