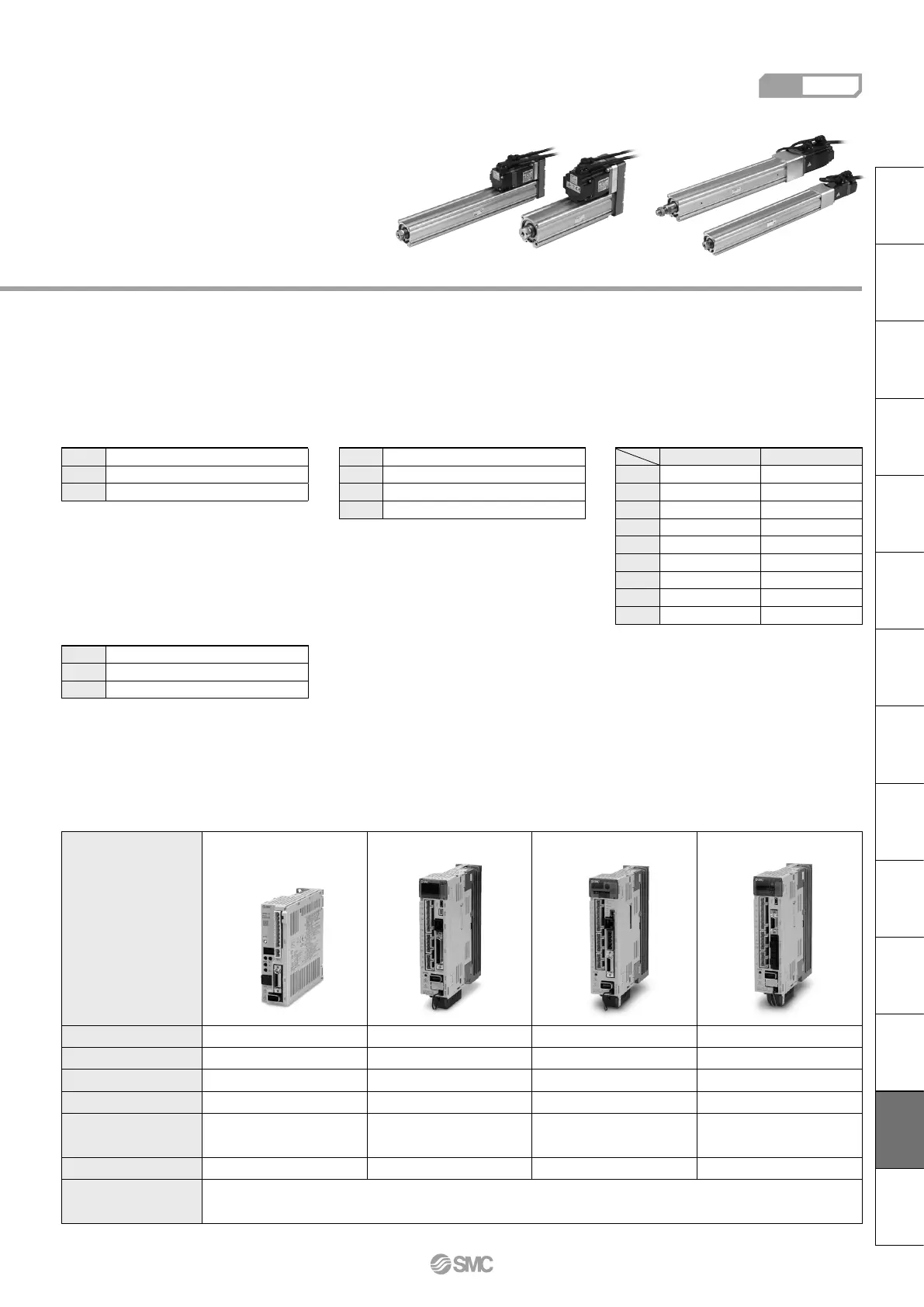

Electric Actuator/Rod Type
Series 25A-LEY
Motor mounting position:
Top/Parallel
Motor mounting position:
In-line
* The motor and encoder cables are included.
(The lock cable is also included when the
motor with lock option is selected.)
* Standard cable entry direction is
· Top/Parallel: (A) Axis side
· In-line: (B) Counter axis side
!0 Cable type
*
* The length of the encoder, motor and lock
cables are the same.
!1 Cable length
*
[m]
Compatible Drivers
!2 Driver type
*
* When the driver type is selected, the cable is
included. Select cable type and cable length.
Example)
S2S2:
Standard cable (2 m) + Driver (LECSS2)
S2 : Standard cable (2 m)
Nil : Without cable and driver
25, 32
Size
Compatible drivers Power supply voltage (V)
Nil
Without driver —
A1
LECSA1-S 100 to 120
A2
LECSA2-S 200 to 230
B1
LECSB1-S 100 to 120
B2
LECSB2-S 200 to 230
C1
LECSC1-S 100 to 120
C2
LECSC2-S 200 to 230
S1
LECSS1-S 100 to 120
S2
LECSS2-S 200 to 230
Driver type
Pulse input type/
Positioning type
Pulse input type CC-Link direct
input type
SSCNET
#
type
Series
LECSA LECSB LECSC LECSS
Number of point tables Up to 7 — Up to 255 (2 stations occupied) —
Pulse input
 
— —
Applicable network — — CC-Link SSCNET3
Control encoder
Incremental
17-bit encoder
Absolute
18-bit encoder
Absolute
18-bit encoder
Absolute
18-bit encoder
Communication function USB communication USB communication, RS422 communication USB communication, RS422 communication USB communication
Power supply voltage (V)
100 to 120 VAC (50/60 Hz)
200 to 230 VAC (50/60 Hz)
* Copper and zinc materials are used for the motors, cables, controllers/drivers.
Nil
Without cable
2
2
5
5
A
10
Nil
Without cable
S
Standard cable
R
Robotic cable (Flexible cable)
!3 I/O cable length [m]
*
Nil
Without cable
H
Without cable (Connector only)
1
1.5
* When “Without driver” is selected for driver
type, only “Nil: Without cable” can be selected.
Refer to the WEB catalog if I/O cable is
required.
