Installing the SMC6624M Switch
Installation Procedures
Installing the SMC6624M
Switch
4. Mount the Switch
After you have verified that the switch passes self test, you are ready to mount
the switch in a stable location. The SMC6624M switch can be mounted in these
ways:
■ in a rack or cabinet
■ on a horizontal surface
■ on a wall
Rack or Cabinet Mounting
The SMC6624M switch is designed to be mounted in any EIA-standard 19-inch
telco rack or communication equipment cabinet.
Warning For safe operation, please read the mounting precautions on
page 2-3, before mounting a switch.

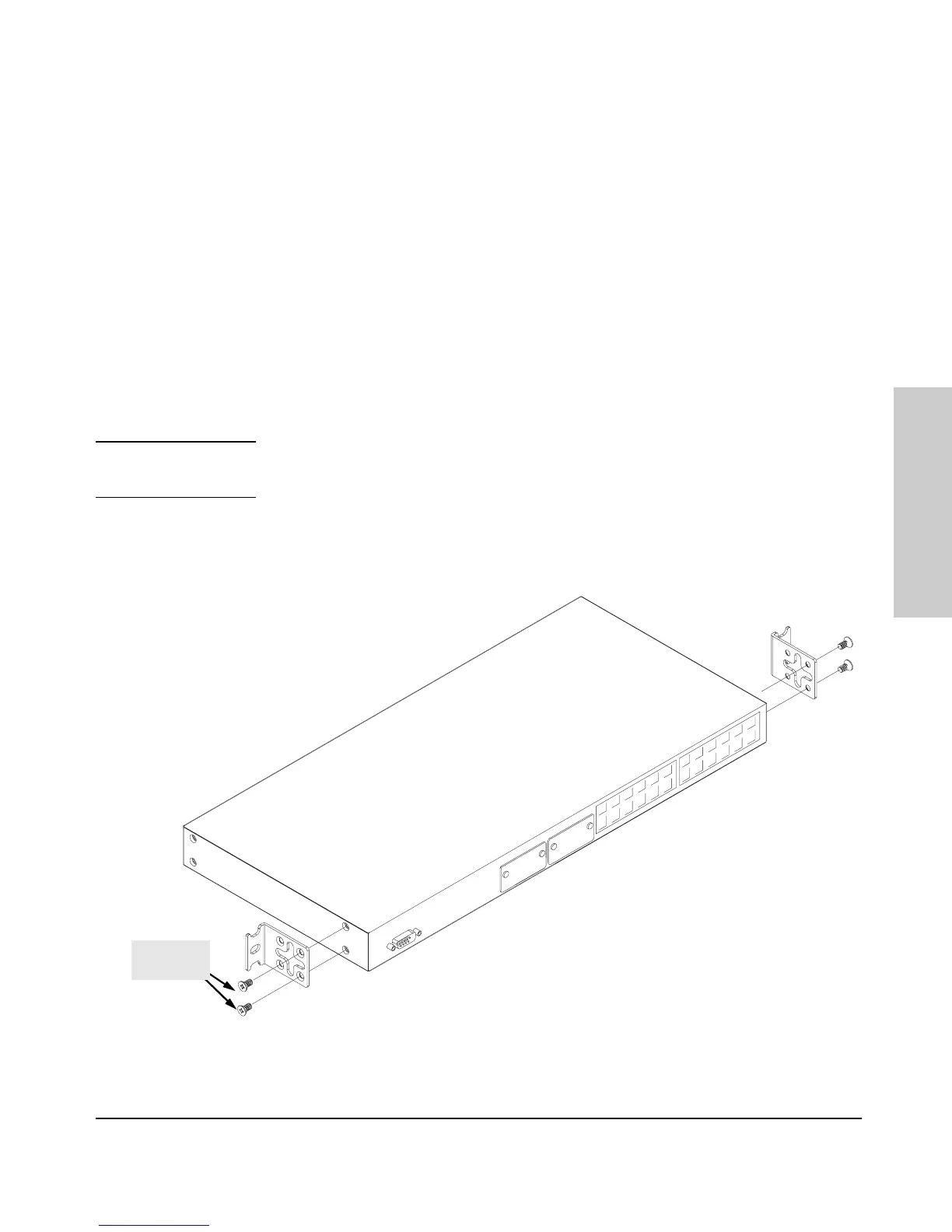

1. Use a number 1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
8 mm
M4 screws
