Installing the SMC6624M Switch
Installation Procedures
Installing the SMC6624M
Switch
3. Place the switch in the rack and lower it so the notches in the bottom of
the bracket slide onto the screws, then tighten these screws.
.
4. Install the other number 12-24 screw through the hole in each bracket.
Tighten these screws.

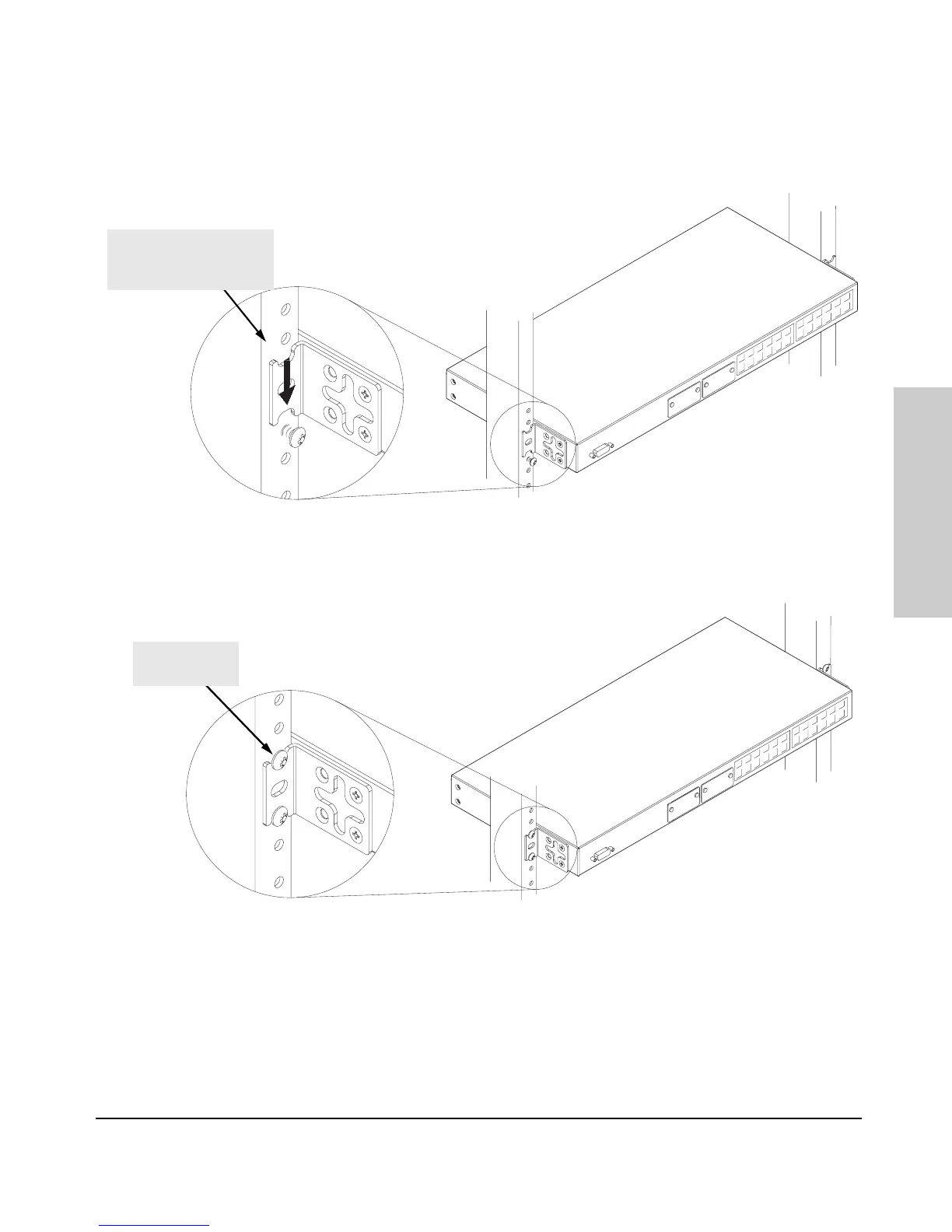

lower switch with mounting
brackets onto the partially
installed screw
install additional
screw
