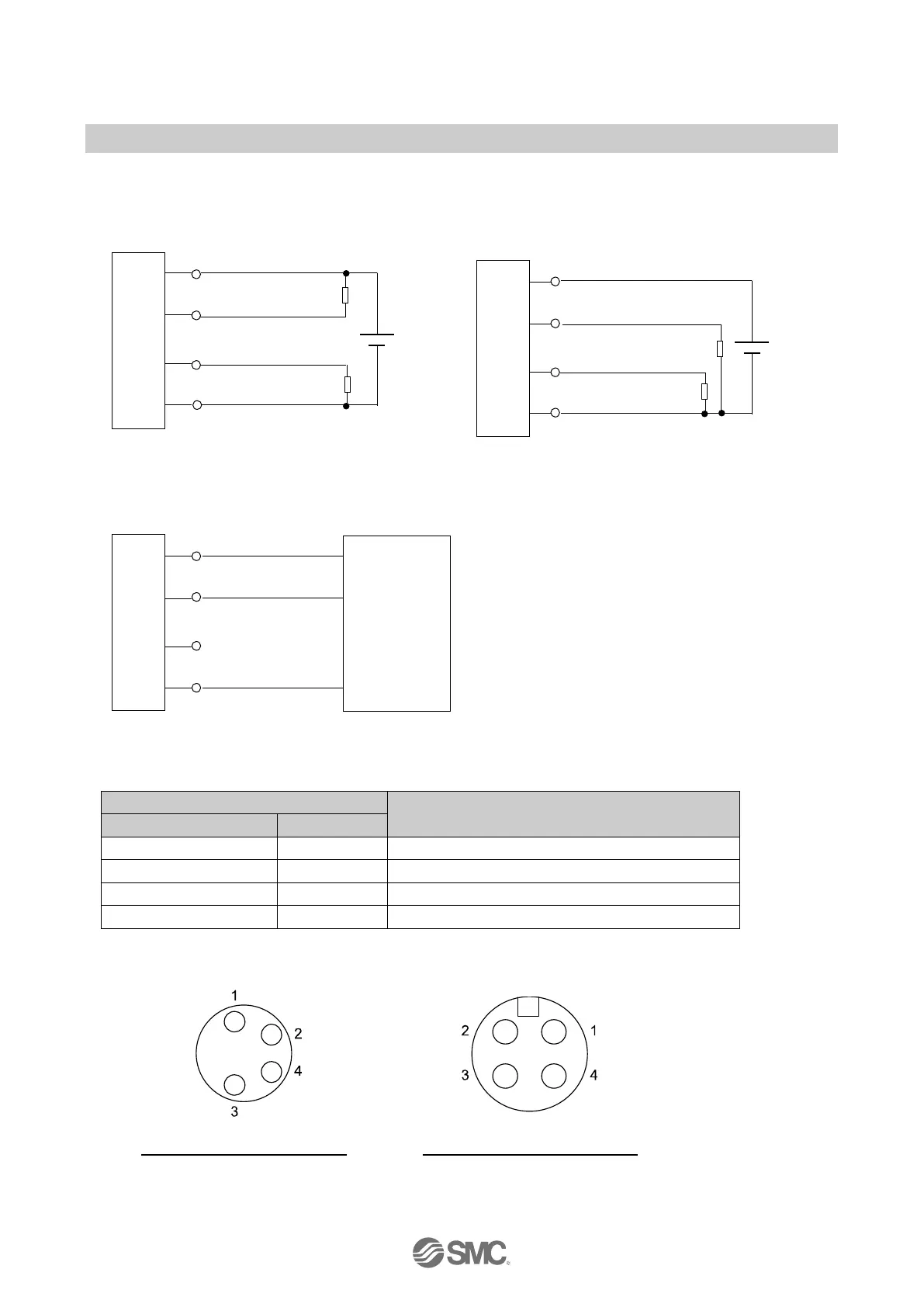

■Wiring
SIO mode
NPN output PNP output
IO-Link mode
Analogue output (white) is disabled when the IO-Link mode is selected.
Wiring
Meaning
Connector pin number
Wiring colour
1
Brown
Power supply DC(+)
2
White
Analogue current output/Analogue voltage output
3
Blue
Power supply DC(-)
4
Black
IO-Link/Switch output (C/Q)
Wiring specifications
M8 Connector pin assignment
M12 Connector pin assignment
Main circuit
Brown (No.1)
Black (No.4)
White (No.2)
Power supply
15 to 30 VDC
Blue (No.3)
Main circuit
Brown (No.1)
Black (No.4)
White (No.2)
Connector pin numbers shown in brackets.
Blue (No.3)
Power supply
15 to 30 VDC
Main circuit
Brown (No.1) L+
Black (No.4) C/Q
White (No.2)
Blue (No.3) L-
IO-Link
master
Load
Load
Load
Load
