Mounting and Installation
■Installation
When mounting an actuator position sensor, use a mounting bracket appropriate for the cylinder/actuator.
The mounting method differs according to the type of actuator and the inner diameter of the tube.
When mounting a sensor for the first time, check that the cylinder/actuator has a built-in magnet and use
an appropriate bracket for the cylinder/actuator. There are also cases when a bracket is not needed.
Proper tightening torque
When tightening mounting screws, use a suitable hexagon wrench (1.5).
Mounting torque should be 0.2 to 0.4 Nm.
Over-tightening can damage the cylinder/actuator and sensor.
Loose screws can cause misalignment or a reduction in accuracy during operation.

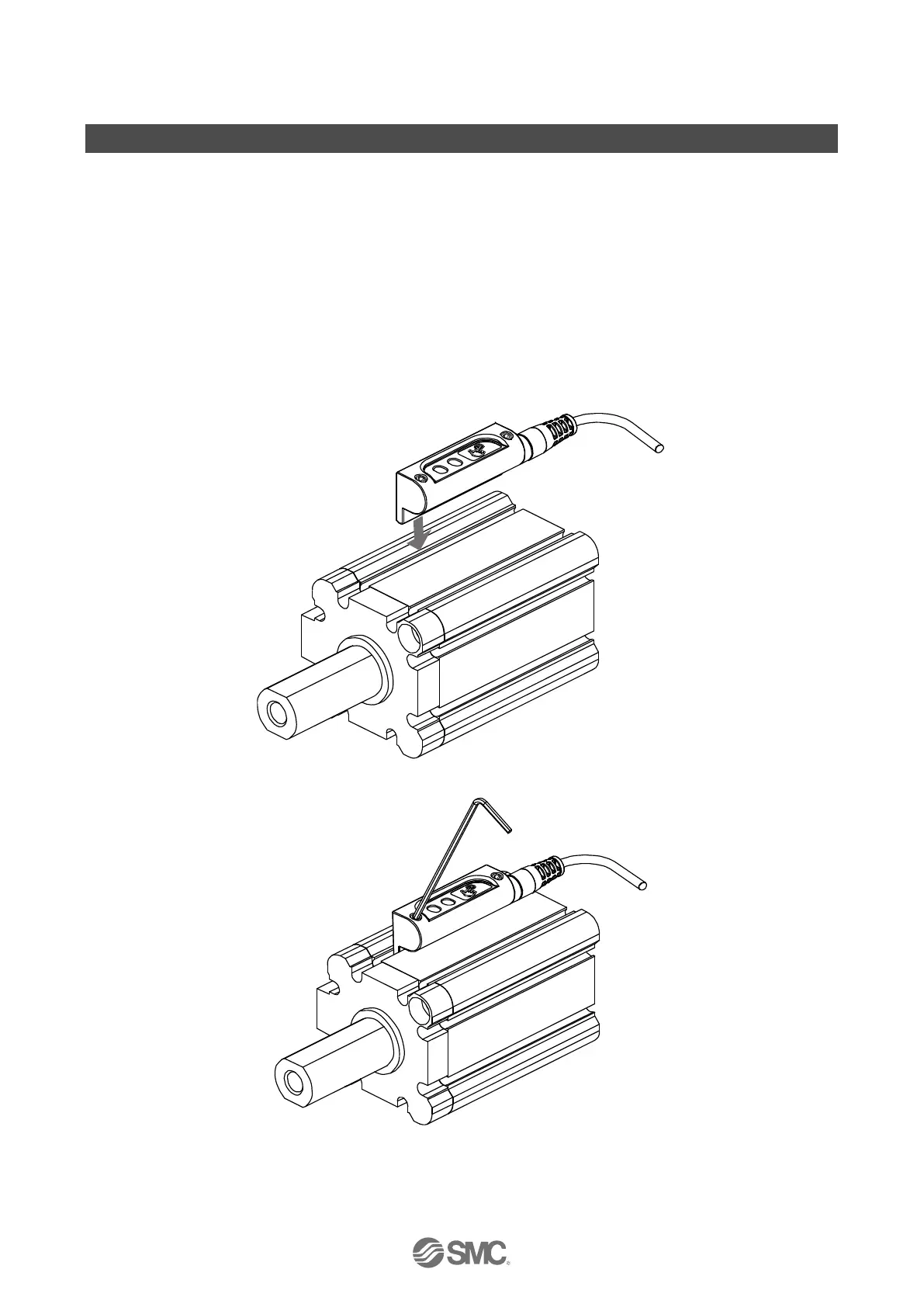

Fit the switch down into the
cylinder/actuator’s switch mounting
groove.
Tighten the mounting screws evenly.
