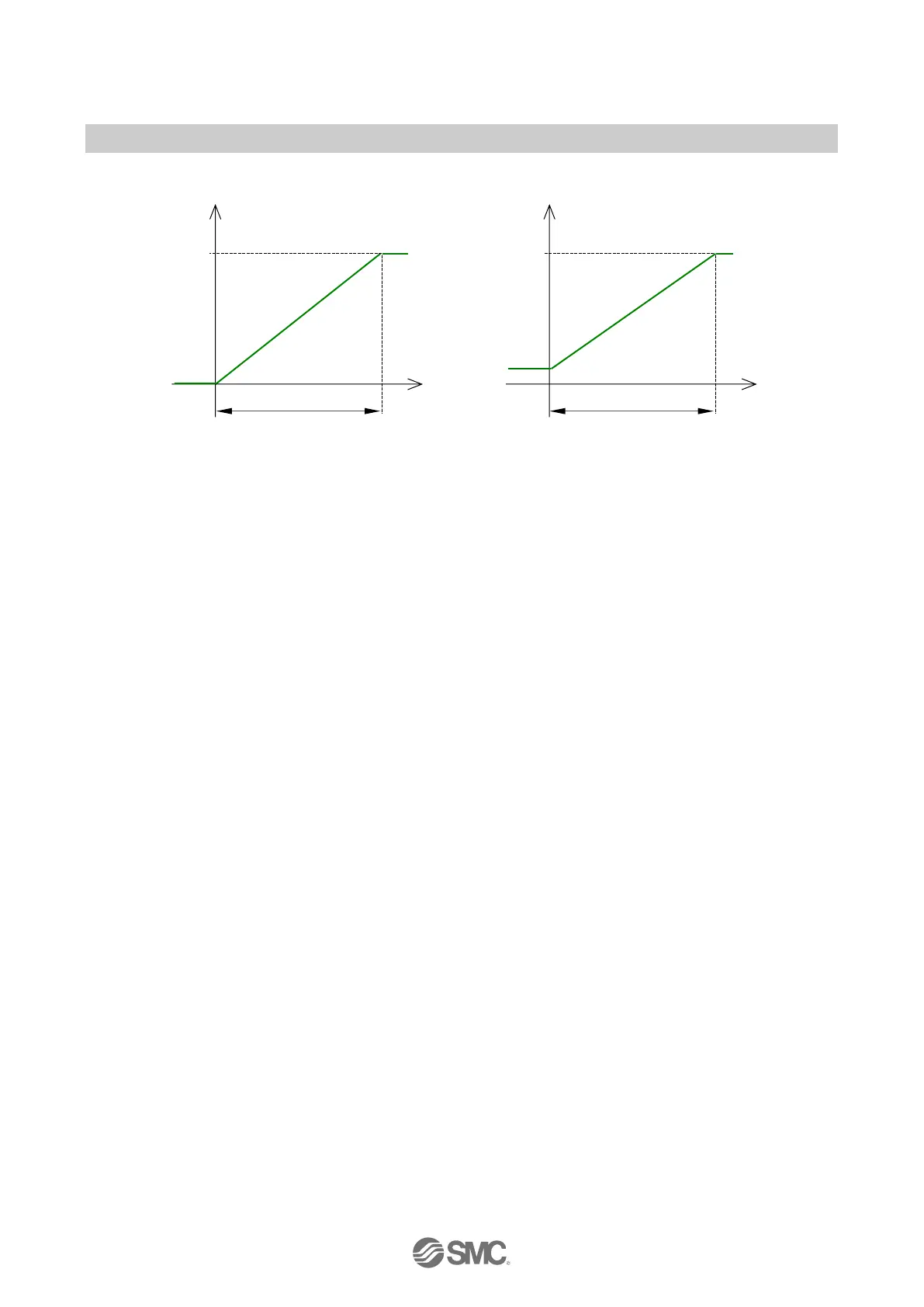

○Analogue output
●Analogue output function
•Measuring range can be changed by setting.
•Whole measuring range can be reset using the reset function.
•Analogue current output and analogue voltage output can be selected.
•Analogue output can be reversed.
Example) 4-20 mA  20-4 mA
0-10 V  10-0 V
: If teaching is performed with the conditions below, the setting might be interrupted and the orange LED flashes 4 times.
•If teaching is performed at the start or end of the measuring range, magnet force is not detected.
•Minimum set measuring range: 1 mm
0
10
Set measuring range
Voltage [V]
0
20
4
Set measuring range
Current [mA]
