SMC-EZ1026DT V.2
11
4. Apply the Rubber Feet to each corner on the bottom of the Switch.
These footpads can prevent the Switch from shock/vibrations.
Caution: Do not place objects on top of the Switch.
Rack-mounted Installation
The SMC-EZ1026DT V.2 Switch come with a rack-mounted kit and
can be mounted in an EIA standard size, 19-inch Rack. The Switch
can be placed in a wiring closet with other equipment.
Perform the following steps to rack mount the Switch:
A. Position one bracket to align with the holes on one side of the
Switch and secure it with the smaller bracket screws. Then attach
the remaining bracket to the other side of the Switch.

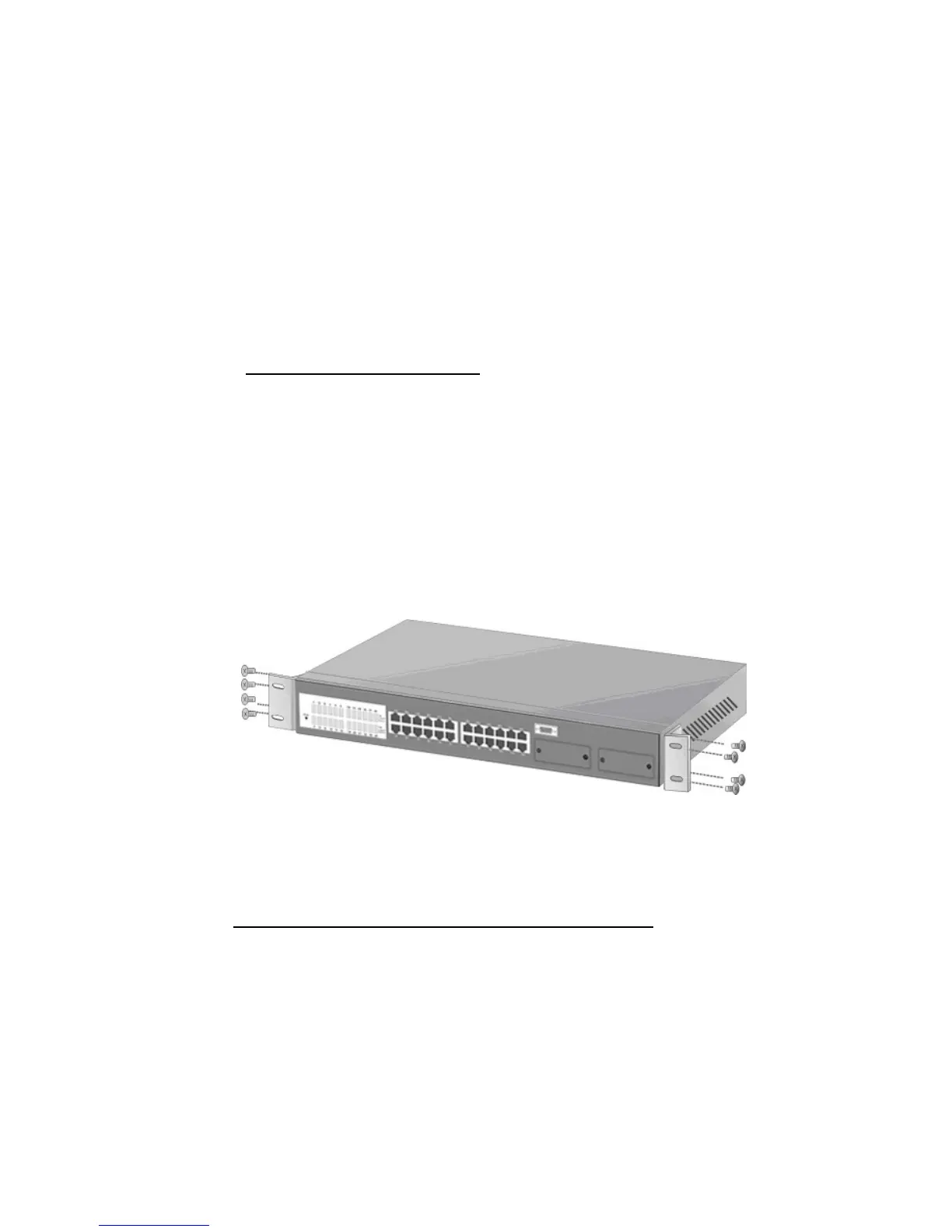

Figure 3-2. Attach mounting brackets with screws
B. After attached both mounting brackets, position the
SMC-EZ1026DT V.2 Switch ( UTP/MT-RJ/VF-45 ) in the rack by
lining up the holes in the brackets with the appropriate holes on
the rack. Secure the Switch to the rack with a screwdriver and the
rack-mounting screws.
