SMC-EZ1026DT V.2
19
Multiple links between switches can be grouped (trunk) to work as one
virtual, aggregate link. You can create 4 trunks at a time; each trunk can
hold up to 8 ports - only ports of the same speed can belong to a single
trunk.

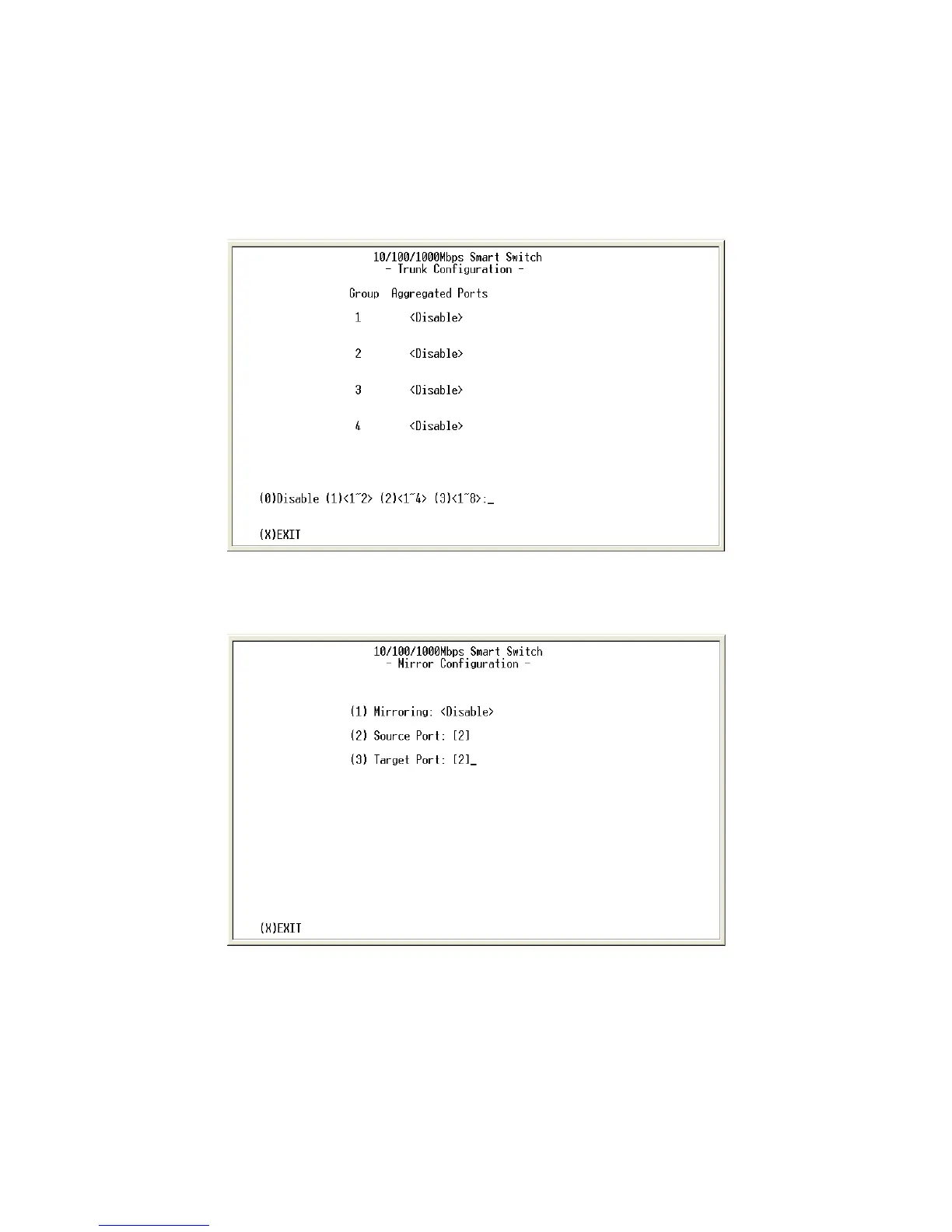

Figure 3-14. The Trunk Configuration selection Menu
F. Mirror Configuration
Figure 3-15. The Mirror Configuration Menu
By enabling port mirroring, traffic to and from the source port will be
forwarded to the target port. You can select any of the 26 port as either
the Source port or the Target port by using <Space Bar> to scroll though
the desired port number
.
