SMC-EZ1026DT V.2
26

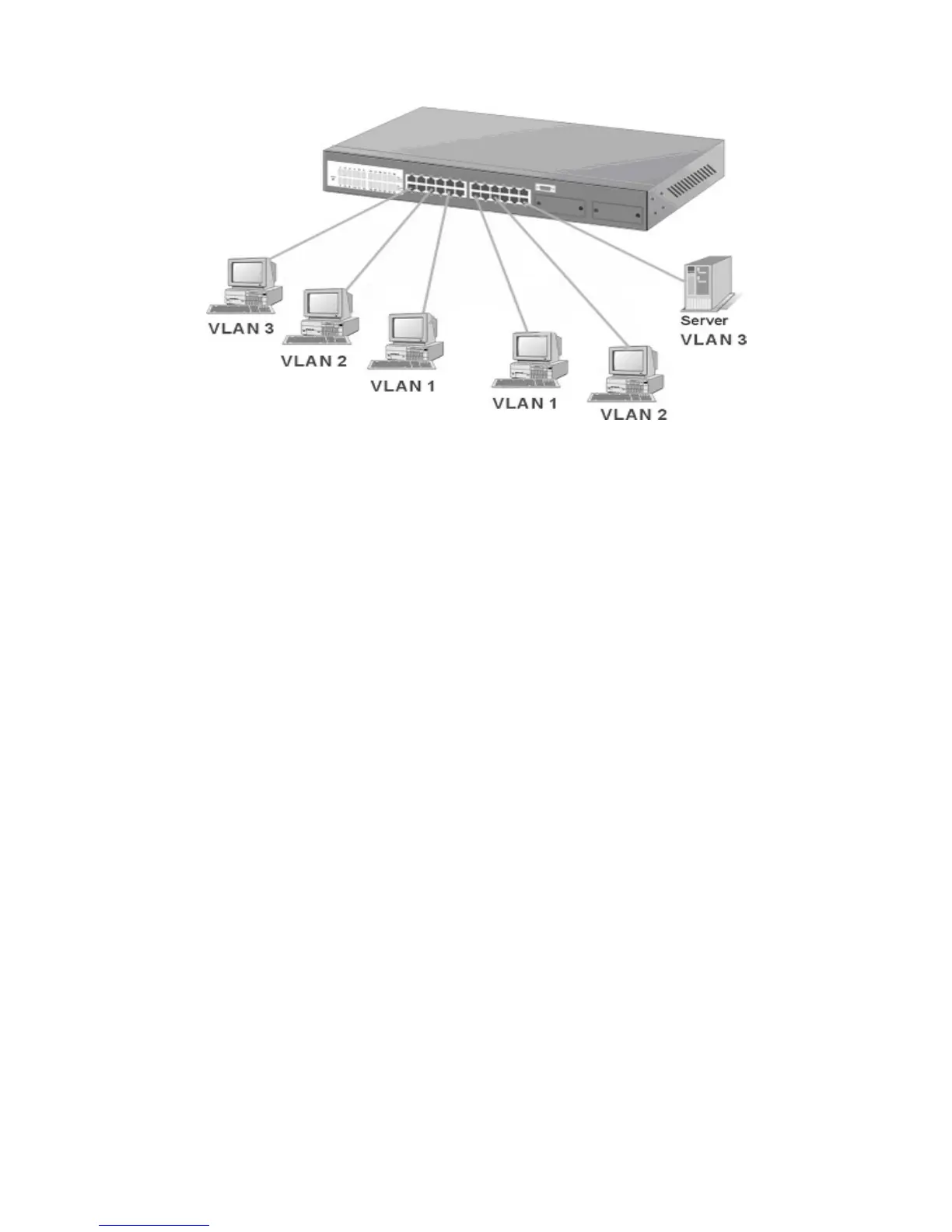

Figure 4-5: Shared Server
In this example, stations on different VLANs share resources. As a
result, VLAN 1 and VLAN 2 can access VLAN 3 for printing. The
broadcasts from ports configured in VLAN3 can be seen by all VLAN
port members of VLAN3.
