10 Specification for Option L
10 - 1
10 Specification for Option L
10-1 Safety instructions
When handling the product, take care of the following precautions.
10-2 Specification
The specification of this product is dryer with heavy duty Auto drain .The heavy duty auto drain will
be assembled by the customer.

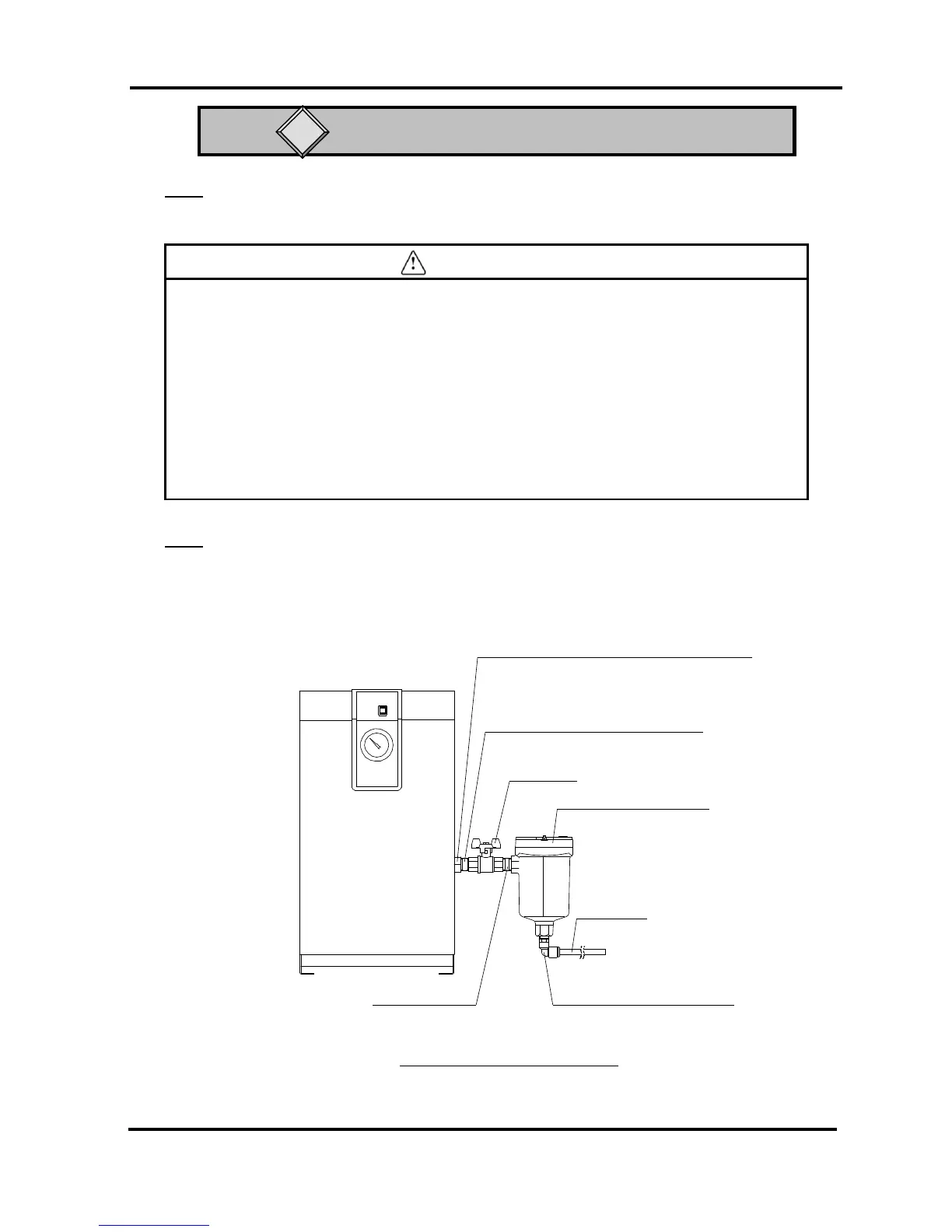

Heavy duty auto drain assembly
1. Do not remove the auto drain if air pressure remains in the product. When removing the
auto drain, stop the supply of air to the primary side of the product, exhaust the air from the
secondary side and ensure there is no residual pressure. If the air pressure is left inside of
the product, parts could suddenly pop out and cause accident when loosened.
2. Put gloves to prevent injury when removing the auto drain.
3. Operator could touch the drain waste from repalced auto drain. Follow the procedures
prepared by the customer to ensure the safety of the operators. (Ex. Put protective goggles,
apron and/or gloves to protect body from toucing the drain waste when performing
maintance on the product.)
Connection port(Rc3/4：IDFA15E)
width across flats:32
Heavy duty auto drain
Nipple (R1/2：IDFA3E to 11E)
Ball valve
Nipple (R1/2)
Drain tube
One-touch fitting(Elbow)
Connection port(Rc1/2：IDFA3E to 11E)
width across flats:25
Nipple (R3/4 X R1/2：IDFA15E)
To Next Page
