HEC-OM-S002
Chapter 2 Description and Function of Each Part
1.7 Safety Interlocks
2-1
Chapter 2 Description and Function of
Each Part

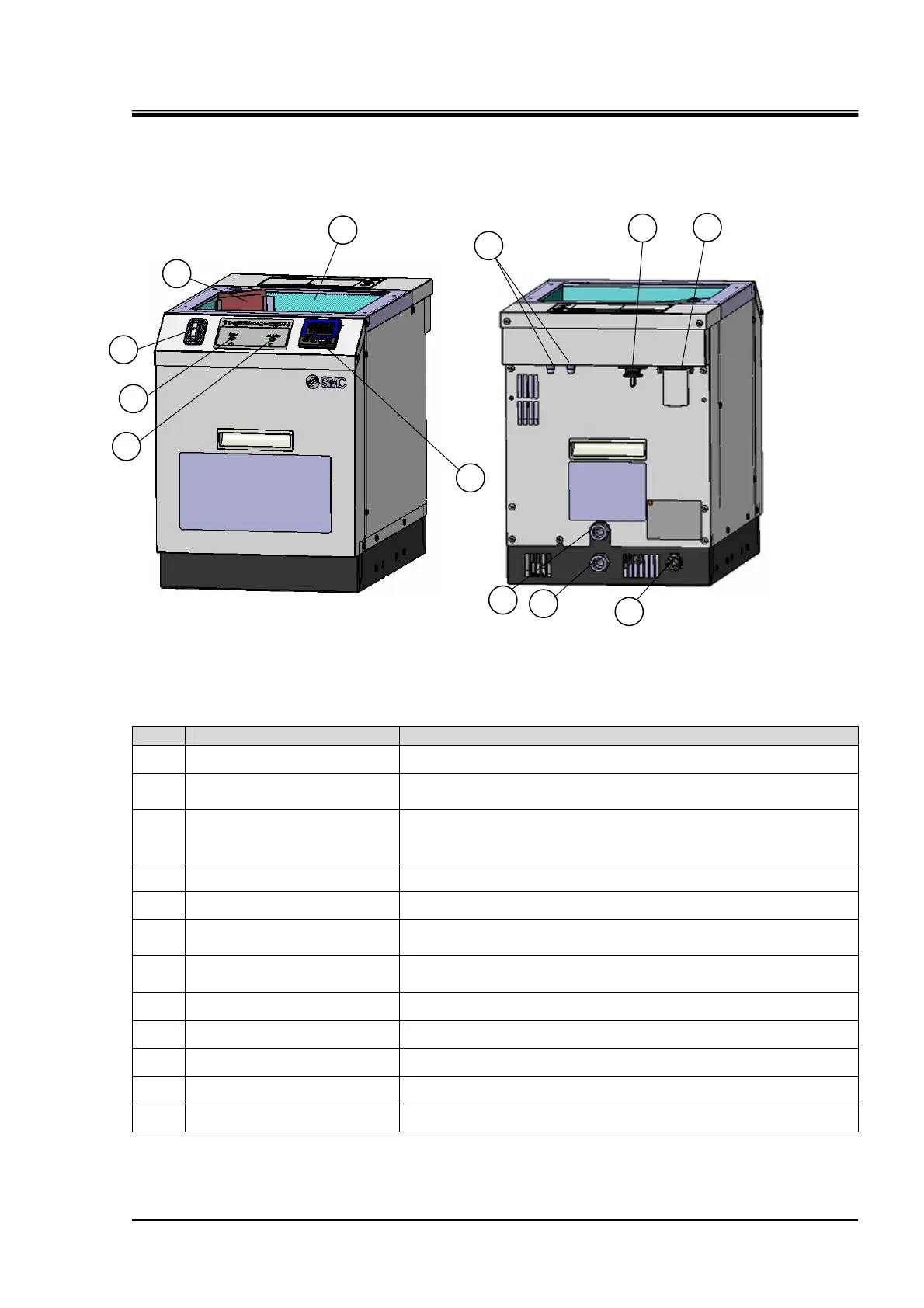

Fig. 2-1 Thermo Electric Bath
Table 2-1 Thermo Electric Bath
No. Description Function
Contoroller Various displays are shown and settings are input.
Main power switch
(Circuit protector)
Main power ON/OFF of product.
ALARM LEDRed
Lights up when an alarm occurred.
For details, refer to page 5-12 “5.2.1 Content of Alarms”, Table
5-3.
RUN LEDGreen
Lights up while the product is running.
Bath Vessel to store the bath liquid.
Power supply connector
(AC)
IEC 60320 C14 connector.
Communication connector
(COMMUNICATION)
Connector for EtherCAT.
Facility Water outlet port Facility water outlet port, connection size is Rc3/8.
Facility Water inlet port Facility Water inlet port, connection size is Rc3/8.
Drain port CPC coupling PLCD 16004
Strainer Prevents clogging the pump suction port.
Level switch connector Use to connect level switch.
8
9
10
6
12
7
11
1
5
2
4
3
