Chapter 5 Operation
5.1 Operation of Controller
5-8
5.1.8 Selection of Control Setting Mode
Selecting “04” in the setting mode “ ” activates the control setting mode.

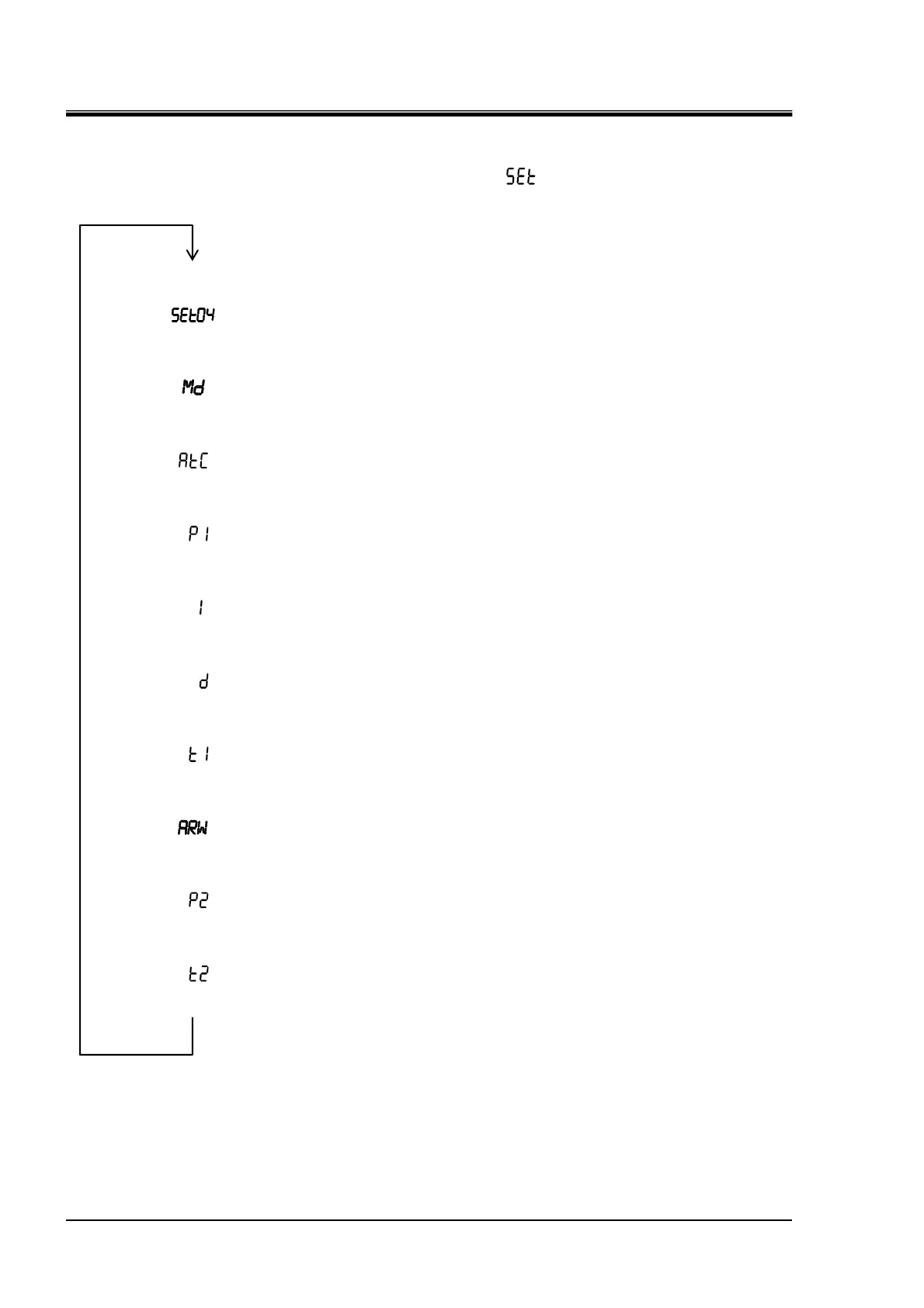

Each press of the [MODE] key changes the operating mode as follows.
Mode indicator
Indicates that the control setting mode is activated.
↓
[MODE] key
<1> Control Mode Setting
↓
[MODE] key
(Not used for this product)
↓ [MODE] key
<2>
Heating Proportional Band Setting
↓
[MODE] key
<3>
Integral Time Setting
↓
[MODE] key
<4>
Derivative Time Setting
↓
[MODE] key
<5>
Heating Proportional Cycle Setting
↓ [MODE] key
<6> ARW Setting
↓
[MODE] key
<7>
Cooling Propotional Band setting
↓
[MODE] key
<8>
Cooling Proportional Cycle setting
