HEC-OM-S002
Chapter 3 Transporting and Installation
3.4 Installation of Facility Water Piping
3-8
3.4 Installation of Facility Water Piping
z
Confirm that the tube is not bent to the point where it is kinked and may
prevent facility water flow.
z
Connect fittings to the ports marked “IN” and “OUT” on the product to
provide piping for the inlet and outlet of Facility Water, respectively.
z
When you install fittings in the facility water inlet/outlet port, please use
the thread sealing tape or other methods so that there’s no leakage.
z
To avoid applying fixing force to the facility water inlet/outlet port directly,
fix fitting to the port while holding the port with a wrench steady.
Recommended tightening torque: 22~24N･m

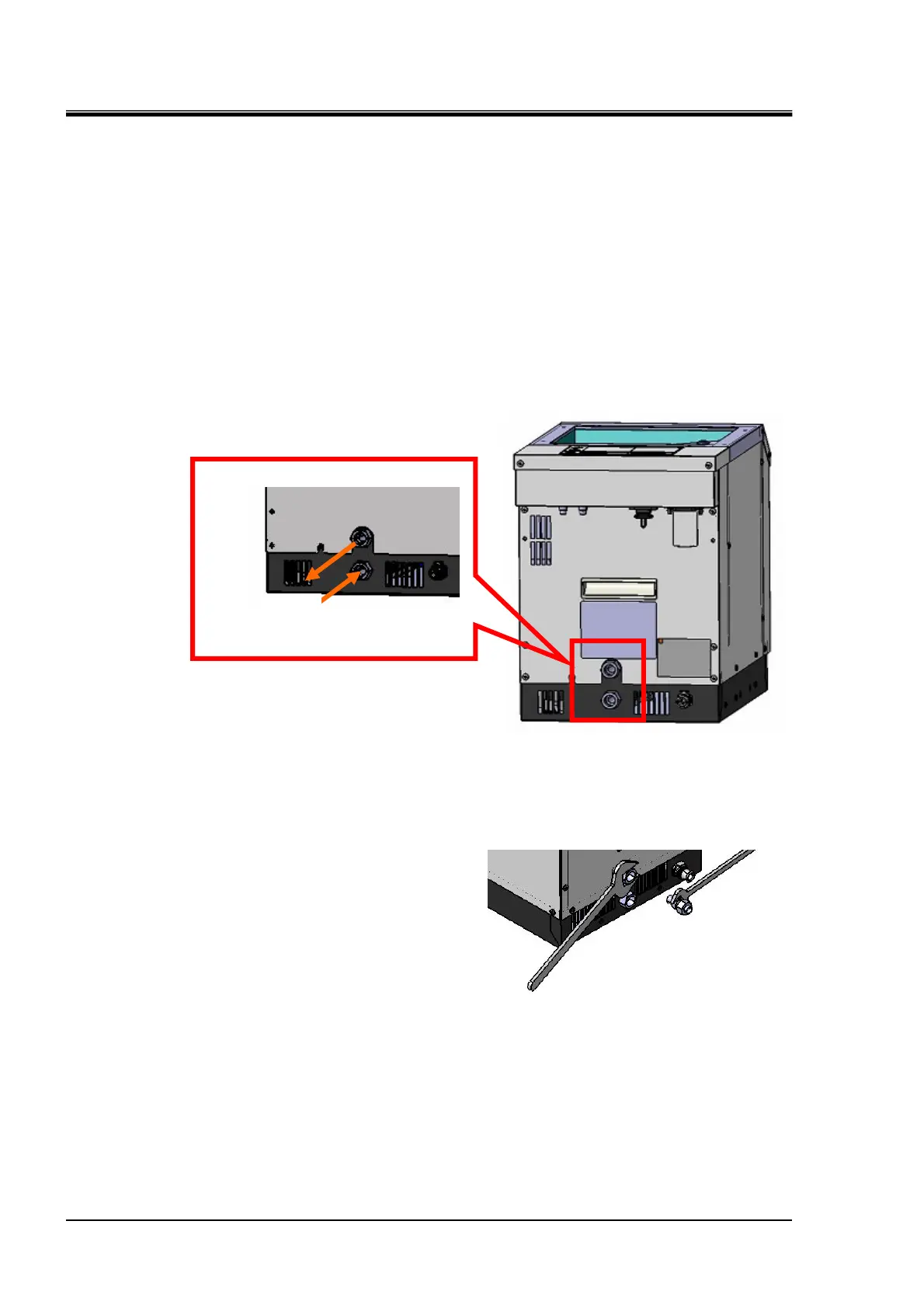

Fig. 3-4 Facility water ports
Fig. 3-5 Fixing the fittings to the ports
OUT
IN
To Next Page
