SMC Networks ITV SEN DUX02357 Series

IN19856
- 37 - Rev 2

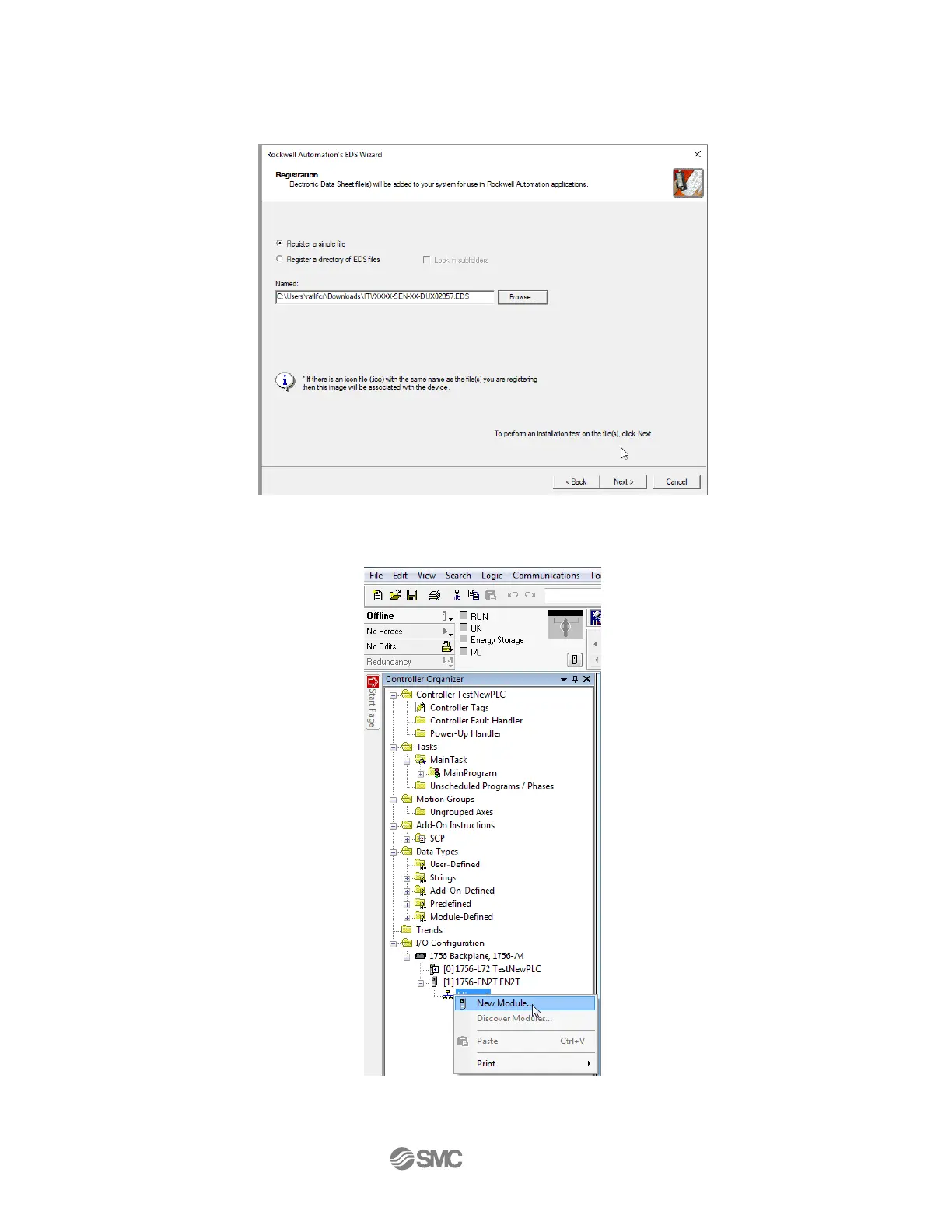

Select the EDS file to be installed and select [Next].
Figure 21 - Select EDS File to Install
Right click on the selection [Ethernet] in the [I/O Configuration] folder and select [New Module].
Figure 22 - New Module Selection
