Figure 26 - Select (Register) Module Type
The [Module Properties] screen is displayed, to perform setup.
(1) Name: Enter the required unit name.
(2) Select the data format of Comm: Connection Parameters.
(3) IP Address: Enter the IP address setting for the SI unit.
(4) Assembly Instance: Perform setting as shown below.
Description
Decimal
Input
150
Output
100
Configuration
105
(5) Size: Perform setting as shown below.
Description
Decimal
Common Format
“Data-INT”
“Data-SINT”
Input
2
4
Output
1
2
Configuration
4
4

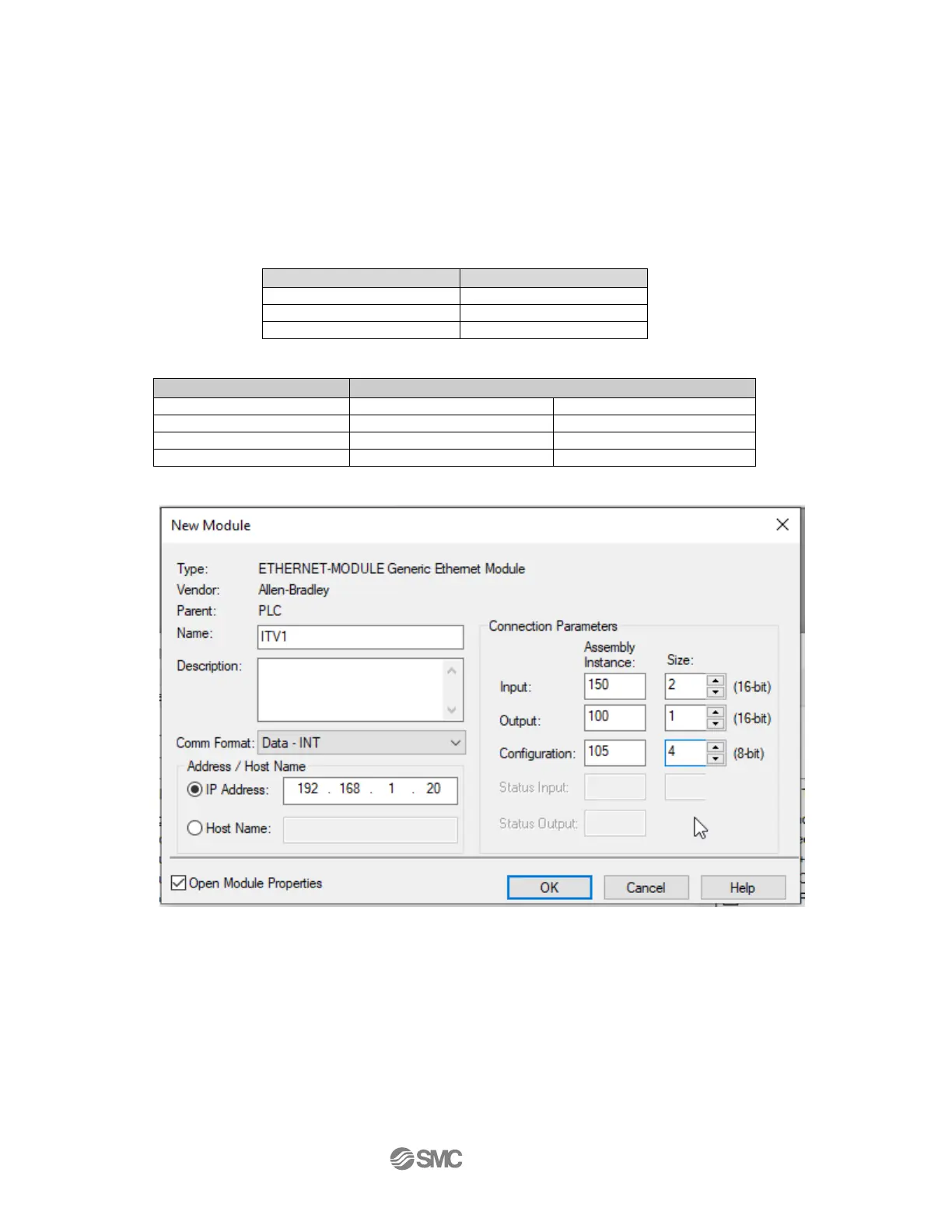

Figure 27 - Module Properties
