SMC Networks ITV SEN DUX02357 Series

IN19856
- 39 - Rev 2

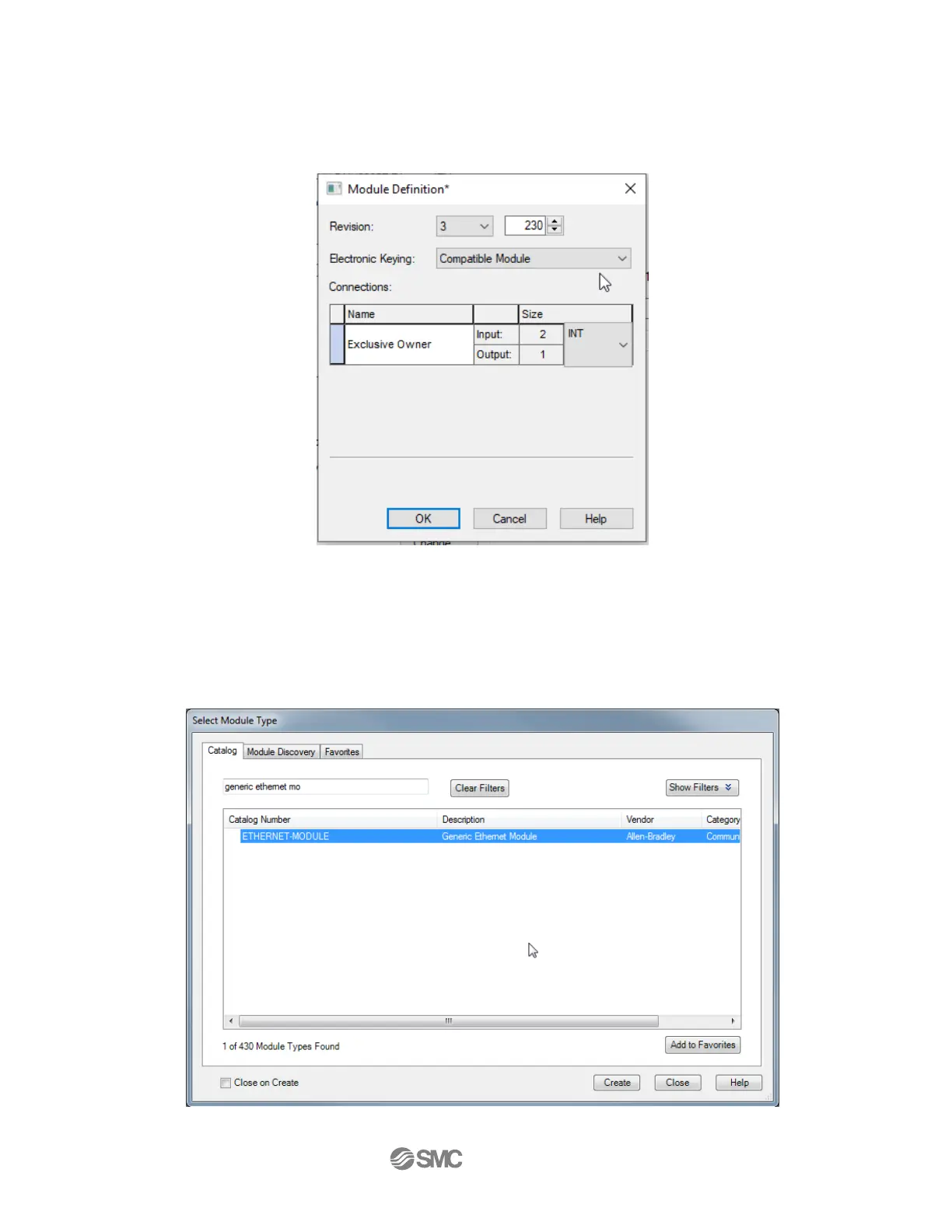

Figure 24 - New Module Screen
Figure 25 – Module Definition Screen
2. Example of setting using the Generic Ethernet Module
Right-click on the selection [Ethernet] in the [I/O Configuration] folder and select [New Module].
The [Select Module Type] screen is displayed. Select [Generic Ethernet Module] and select [Create]
