Hardware Description
5
• One RJ-45 port for connection to a DSL or cable modem
(WAN). This port also auto-negotiates operating speed to
10/100 Mbps, the mode to half/full duplex, and the pin signals
to MDI/MDI-X.
The following figures show the components of the Router:

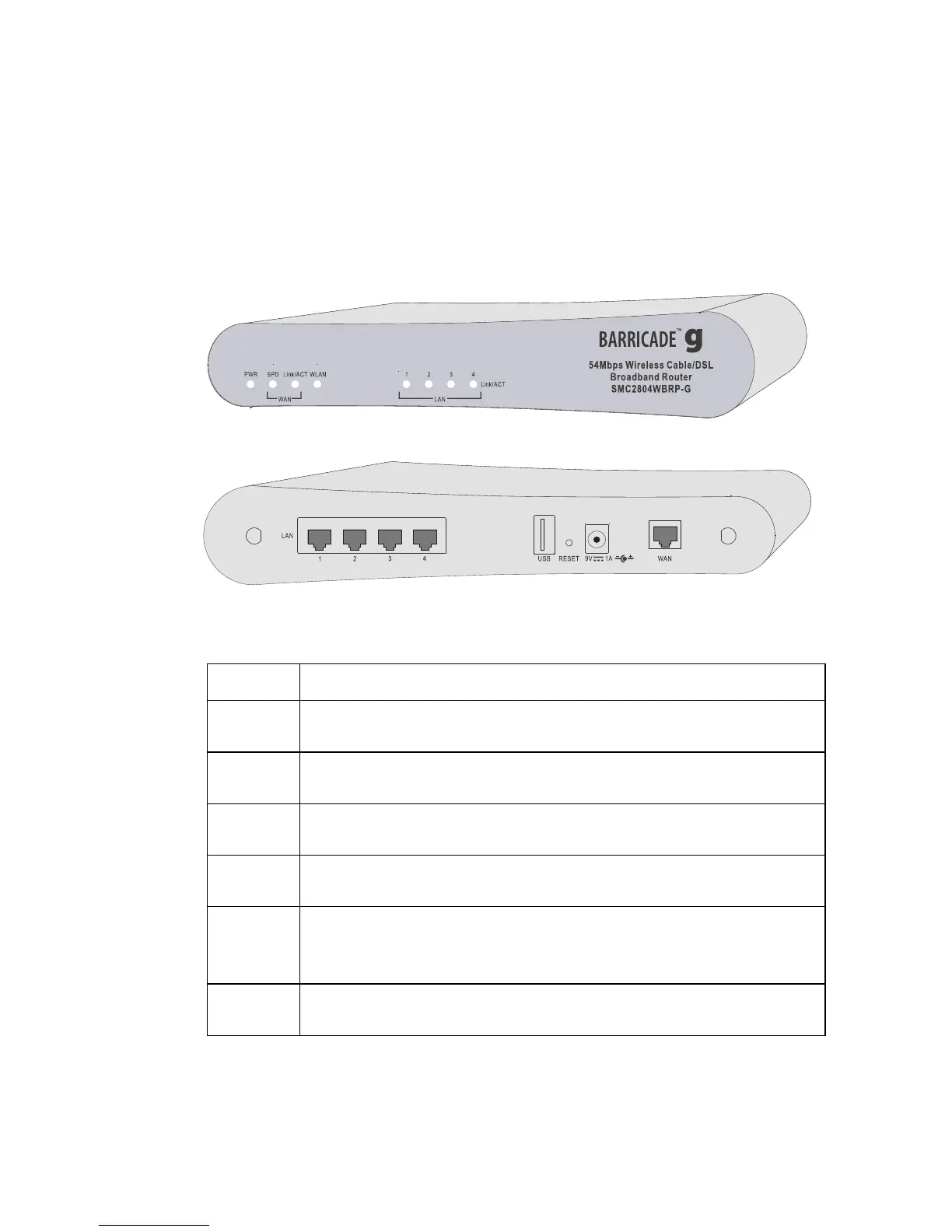

Figure 1. Front and Rear Panels
Item Description
LEDs PWR, SPD, Link/ACT, WLAN and LAN port status indicators.
(See “LED Indicators” on page 1.)
LAN
Ports
Use this port to connect to your PC.
UBS
Port
Use this port to connect to your printer.
Reset
Button
Use this button to reboot the router or restore the default factory
settings.
Power
Inlet
Connect the included power adapter to this inlet.
Warning: Using the wrong type of power adapter may damage
your router.
WAN
Port
Connect your ethernet cable, or xDSL modem to this port.
