Connect the System
11
Attach the Wireless Barricade g Router to the Internet
If Internet services are provided through an xDSL or cable
modem, use unshielded or shielded twisted-pair Ethernet cable
(Category 3 or greater) with RJ-45 plugs to connect the
broadband modem directly to the WAN port on the Router.

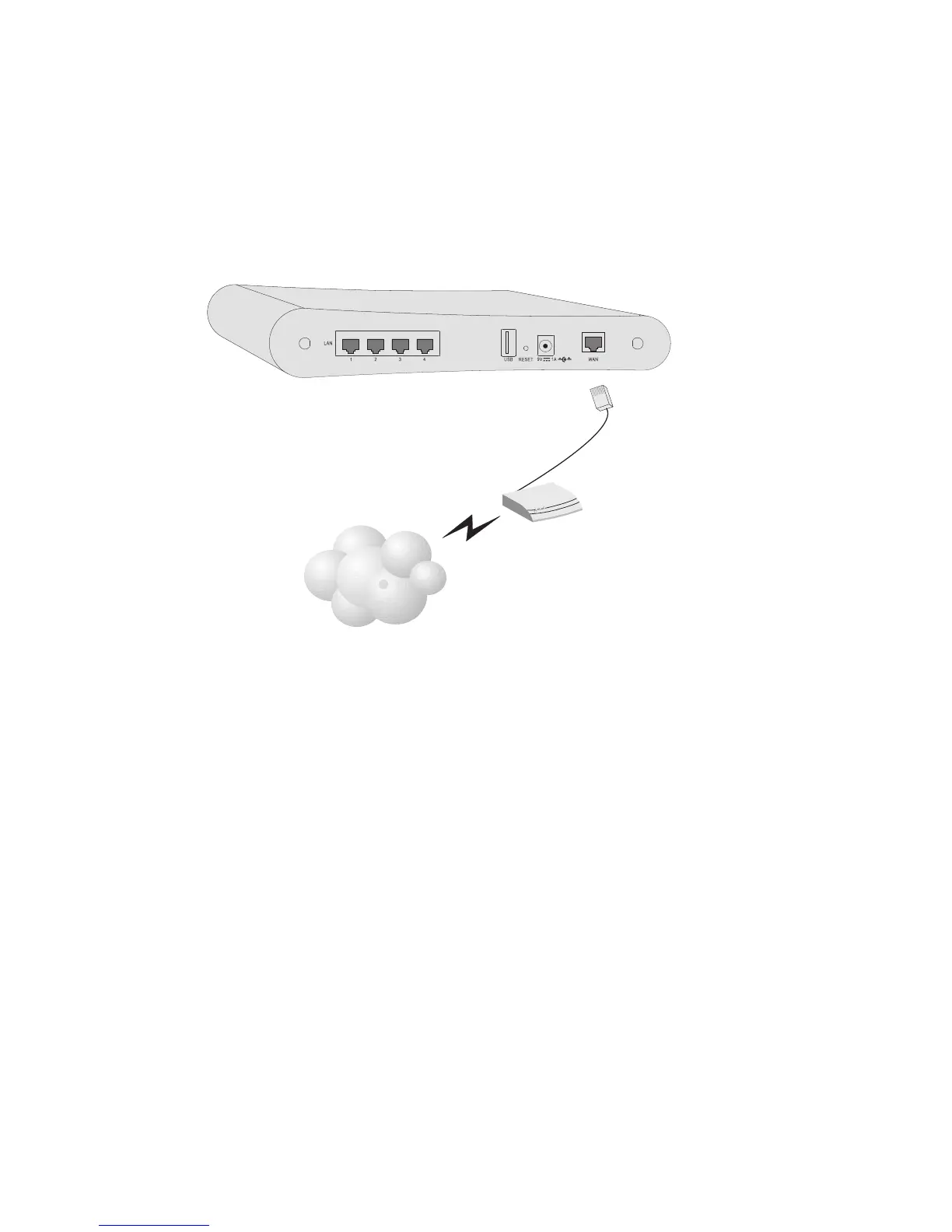

Figure 5. Making the WAN Connection
Note: When connecting to the WAN port, use 100-ohm
Category 3, 4, or 5 shielded or unshielded twisted-pair
cable with RJ-45 connectors at both ends for all
connections.
Connecting the Power Adapter
Plug the power adapter into the power socket on the Router, and
the other end into a power outlet. Check the indicator marked
“PWR” on the front panel to be sure it is on. If the power i
ndicator
does not light, refer to
“Troubleshooting” on page 95
.
