4 x R2 or less
31
0
−0.4
31
0 −0.4
31 x n pcs. + 3.5 x (n pcs.−1)
4 x R2 or less
24 or more 31
0 −0.4
24 or more
31 x n pcs. + 3.5 x (n pcs.−1)
4 x R2 or less
31
0
−0.4

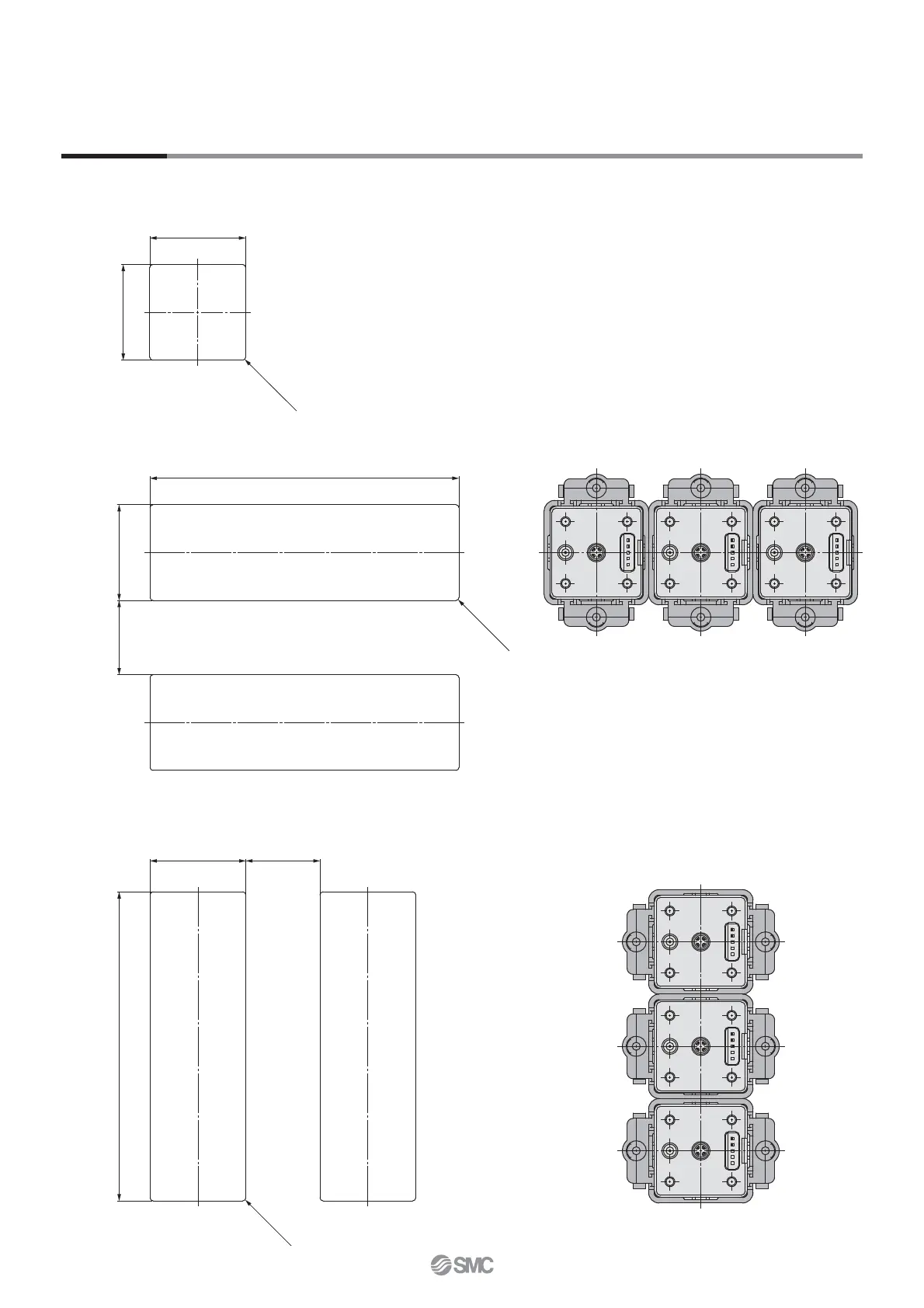

Dimensions
Multiple (2 pcs. or more) secure mounting
<Horizontal>
Panel mount example
<Horizontal>
Panel mount example
<Vertical><Vertical>
Panel fi tting dimensions
Individual mounting
11
Series ZSE20(F)/ISE20
