SMC Networks ZSE20 User Manual

M5 Female thread
M5 Female thread
17.5 mm

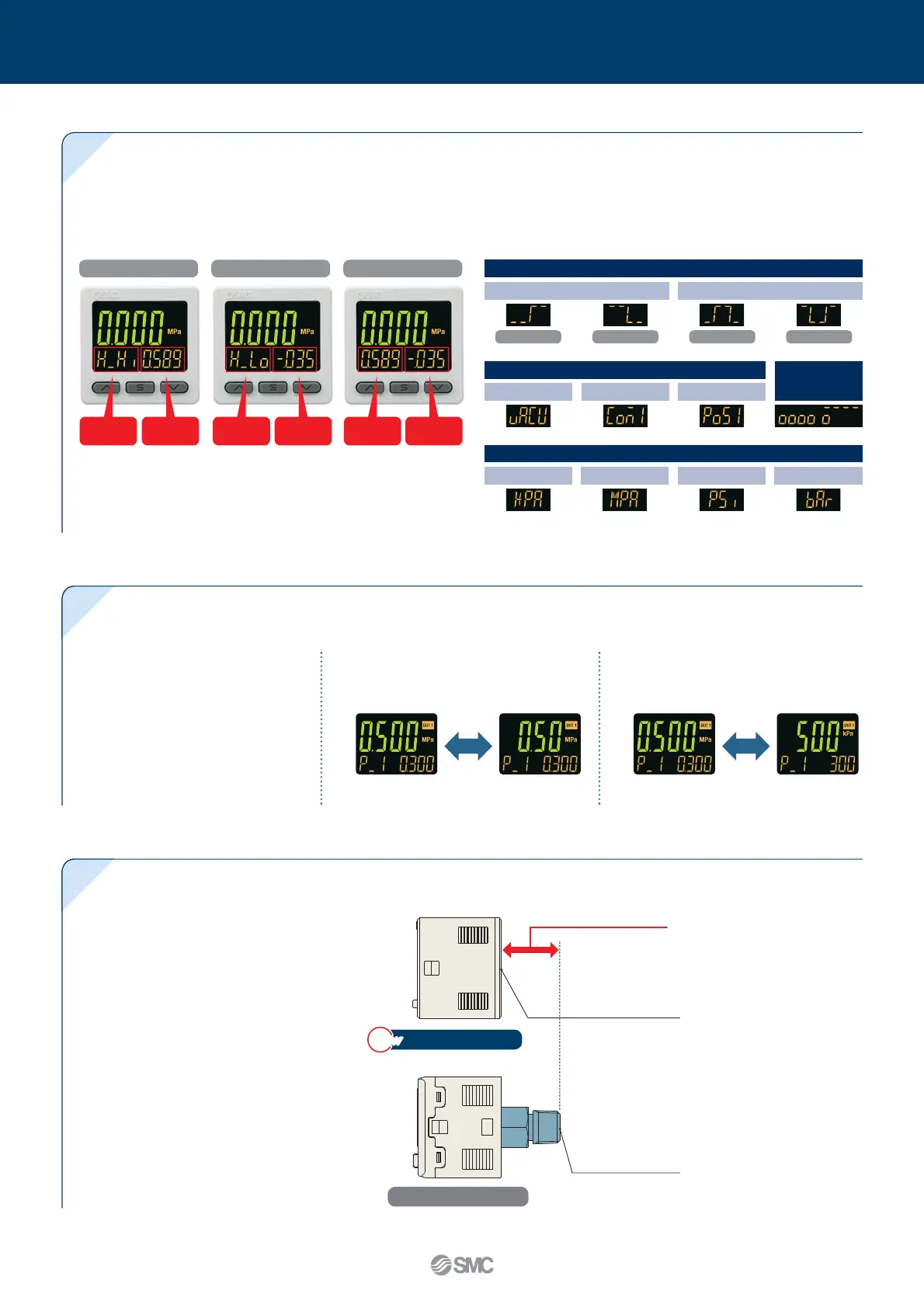

Convenient Functions
Compact & Lightweight
Other Sub Screen Display
Peak value or bottom value; or both values can be displayed in one screen!
∗Peak and bottom values are maintained even if the power supply is cut.
∗ Combination of the displays shown above and the set values can be displayed
on the sub screens on both sides.
Level bar
display
Positive pressure range Compound pressure range Vacuum pressure range
Rated range display
psi barMPa
Pressure unit display
kPa
Hysteresis mode Window comparator mode
Output mode/Output type display
Normal outputNormal output Reversed outputReversed output
Peak value Bottom value Peak/Bottom value
Label
(Peak)
Peak
value
Label
(Bottom)
Bottom
value
Peak
value
Bottom
value
앬 Compact: 17.5 mm shorter (When M5 female thread is used.)
앬 Lightweight: 21 g lighter (When M5 female thread is used.)
13 g lighter (When R 1/8 is used.)
앬 Secret code setting function
The key locking function keeps unauthorised
persons from tampering with buttons.
앬 Power saving function
Power consumption is reduced by turning off the monitor.
(Reduce power consumption by approx. 60 %.)
앬 MPa/kPa switch function
Vacuum, compound and/or positive pressure can
be displayed in MPa or kPa.
(Accuracy is not changed, only the displayed values.)
1/1000 1/100
앬 Resolution switch function
It reduces the monitor to fl icker.
ZSE20(F)/ISE20
NewNew
ZSE30A(F)/ISE30A
3
Series ZSE20(F)/ISE20

SMC Networks ZSE20 Specifications

General

Brand	SMC Networks
Model	ZSE20
Category	Switch
Language	English
