Series ZSE20(F)/ISE20
Function Details

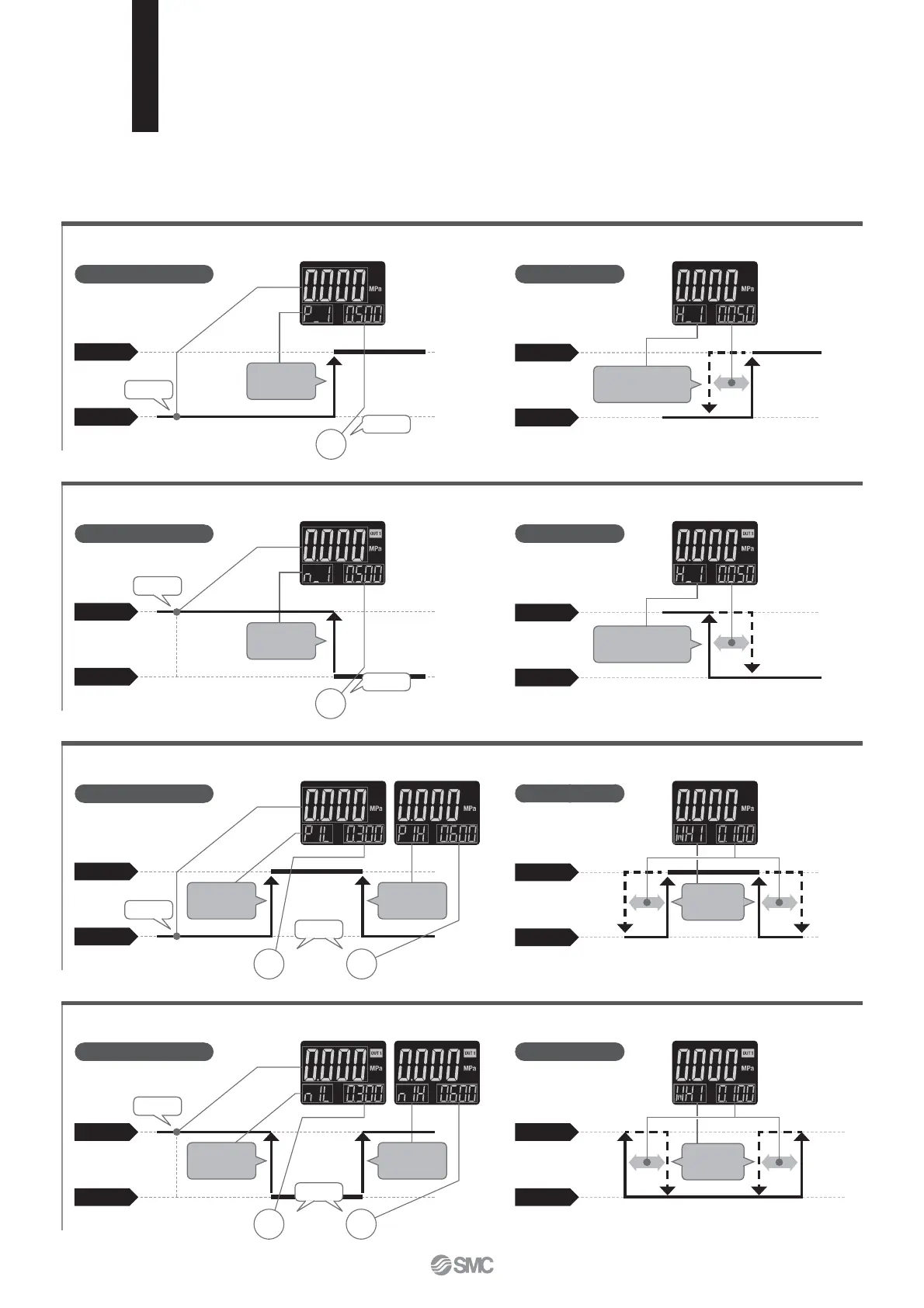

Display examples of the main and sub (set value) screens of each mode. (For ISE20 (for Positive pressure))
Hysteresis mode Normal output
Threshold value setting
Hysteresis setting
Hysteresis setting
Hysteresis setting
Hysteresis mode Reversed output
Threshold value setting
Window comparator mode Normal output
Threshold value setting
Window comparator mode Reversed output
Threshold value setting
Switch ON
Switch OFF
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 [MPa]
Switch ON
Switch OFF
Measured value
Turns ON at the
set value or more.
Turns ON at the
set value or less.
Switch ON
Switch OFF
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 [MPa]
Measured value
Measured value
Turns ON at the
set value or less.
Turns ON at the
set value or more.
Difference between
ON and OFF
0.45 0.50 0.55 0.60 [MPa]
Switch ON
Switch OFF
Difference between
ON 쑺 OFF and OFF 쑺 ON
0.40 0.45 0.50 0.55 [MPa]
Switch ON
Switch OFF
Difference between
OFF
쑺 ON and ON 쑺 OFF
0.2 0.3 ……… 0.6 0.7 [MPa]
Switch ON
Switch OFF
Difference between
ON and OFF
Measured value
Switch ON
Switch OFF
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 [MPa]
Turns ON at the
set value or less.
Switch ON
Switch OFF
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 [MPa]
Turns ON at the
set value or more.
Set value
Set value
Set value
Set value
0.3 0.4 ……… 0.5 0.6 [MPa]
Hysteresis setting
