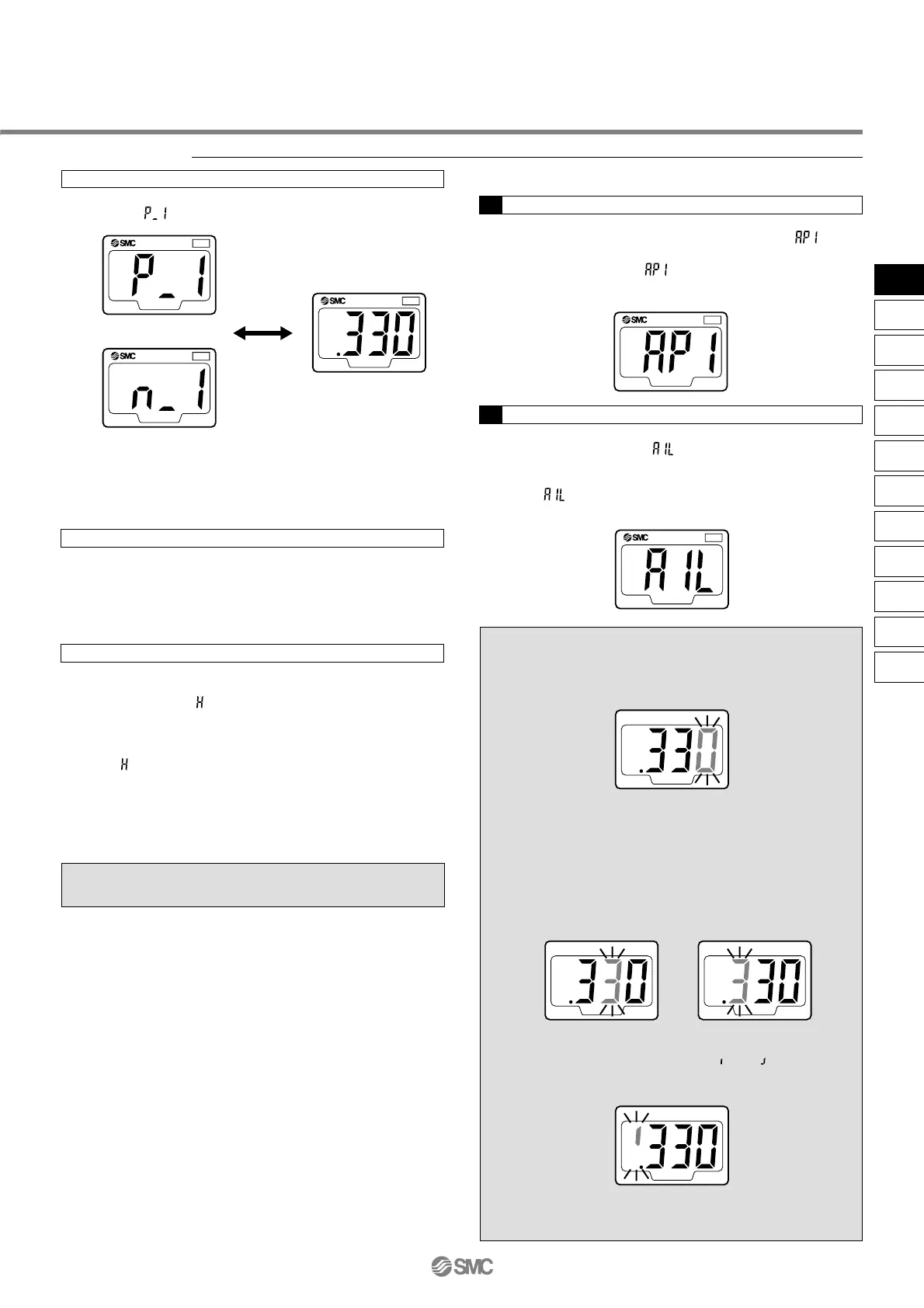

Pressure setting
Manual setting
Press the SET button in the measuring mode to display the
set value. and the current set value blink alternately.
Press the SET button to display the next set value. Press the
UP or DOWN button to change the value. (Refer to “How
to Set Value” on the lower right hand corner of this page.)
Hysteresis mode
In this mode, hysteresis (H) and the set value for hysteresis
are displayed alternately after setting P1. Press the SET
button to return to the normal measuring mode. Press the
UP or DOWN button to change the value.
(Refer to “How to Set Value” below right.)
Window comparator mode
In this mode, P2 and the current set value are displayed
alternately after setting P1. Press the SET button to display
the next set value ( : hysteresis). Press the UP or DOWN
button to change the value.
(Refer to “How to Set Value” at right.)
Next, and the set value for hysteresis will be displayed
alternately. Press the SET button to return to the normal
measuring mode. Press the UP or DOWN button to
change the value.
(Refer to “How to Set Value” at right.)
1. Auto preset preparation mode
While in the measuring mode, press the SET button to
activate the auto preset preparation mode, and will be
displayed. Proceed to prepare the devices to perform the
pressure setting. While is still displayed, press both the
UP and DOWN buttons simultaneously to return to the
measuring mode.
2. Auto preset setting
Press the SET button to activate the mode to execute auto
preset functions. When is displayed, start the system
operation and change the pressure. The set value will be
automatically detected and stored.
While is still displayed, press the SET button to complete
the setting and return to the normal measuring mode.
PRESSURE
OUT
Alternately
displayed
PRESSURE
OUT
Normally Open
Normally Closed
PRESSURE
OUT
PRESSURE
OUT
PRESSURE
OUT
1. Press the UP or DOWN button to change the set
value. The first digit blinks.
2. Press the UP or DOWN button to set the value
arbitrarily. (If there is no button operation for more than
10 seconds, the current value will be automatically set
and the function will return to the set value display
mode.)
3. With every push of the SET
button, the next (higher)
digit blinks.
When the left-most digit is zero, “ ” or “ ” will blink.
If the SET button is pressed while the left-most digit is
blinking, the right-most digit will now blink.
4. Press and hold the SET button for 1 second or longer
to return to the set value display mode.
How to Set Value
To enter a value such as the one for pressure setting:
1st digit
2nd digit 3rd digit
Auto preset setting
Pressure set value can be verified without holding or stopping
the switch output operation.
To Next Page
