SMC Networks ZSE40A(F)

-22-
No.PS※※-OMM0007-H

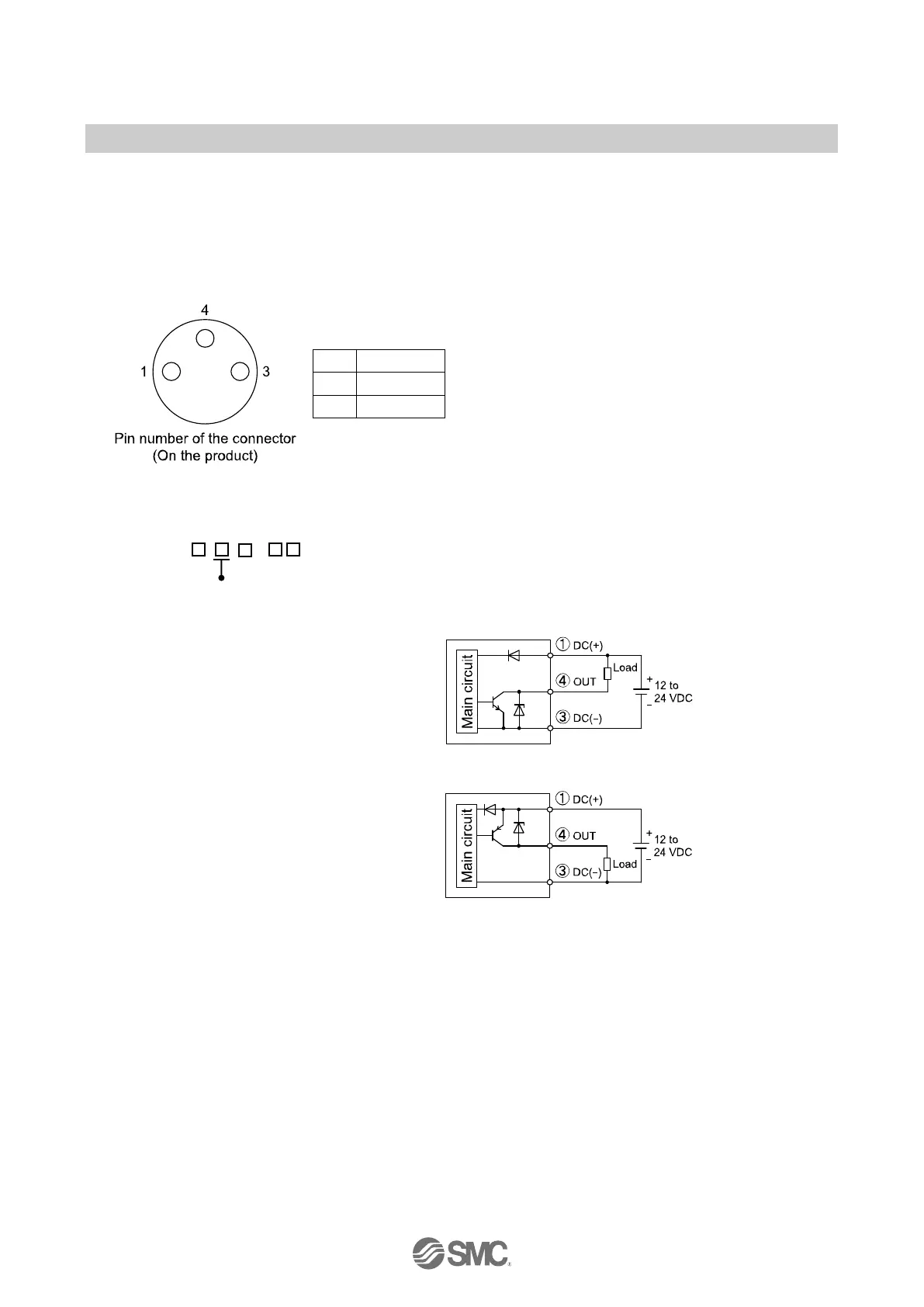

○M8 (3 pin) connector
Wiring of connector
Connections should only be made with the power supply turned off.
Tighten the connector by hand.
Use separate routes for the pressure sensor wiring and any power or high voltage wiring. Otherwise,
malfunction may result due to noise.
1
DC(+)
3
DC(-)
4
OUT
○Internal circuit and wiring example
Z/ISE40A- - - L
Output specification
-N
NPN open collector output type
Max. 28 V, 80 mA
Residual voltage 1 V or less
-P
PNP open collector output type
Max. 80 mA
Residual voltage 1 V or less
: The lead wire with connector is not included with the product. (Refer to page 11)
Please order separately.
