SMC Networks ZSE40A(F)

-31-
No.PS※※-OMM0007-H
■[F 2] Setting of OUT2
Set output method of OUT2.
The display colour is linked to the setting of OUT1, and can not be set for OUT2
The output turns on when the pressure exceeds the set value. The default setting of the output set value is
the central value between atmospheric pressure and the upper limit of the rated pressure range.
For the operation of each setting, refer to "List of output modes" on page 30.

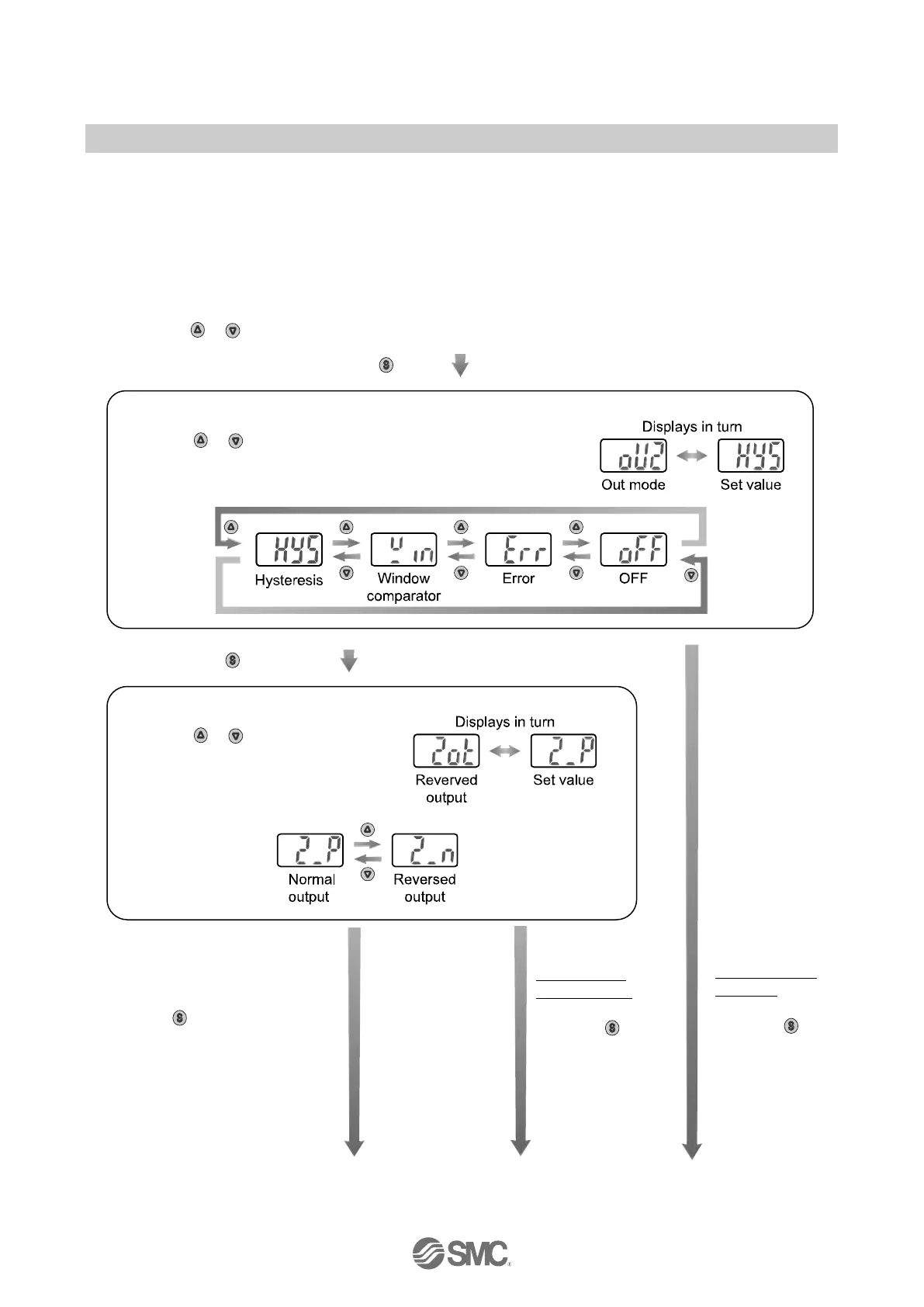

<Operation>
Press the or button in function selection mode to display [F 2].
Press the button. Move on to setting of output mode.
Press the button to set. Move on to setting of reversed output.
Select output mode
Press the
or
button to select output mode.
Select reversed output
Press the
or
button to
select reversed output.
[oFF] (unused)
selected.
Press the button to
set.
Return to
function selection
mode.
Output mode
[Err] selected.
Press the button
to set.
Return to
function selection
mode.

3
Press the button to set.
Move on to setting of pressure.
