SMC Networks ZSE40A(F)

-25-
No.PS※※-OMM0007-H

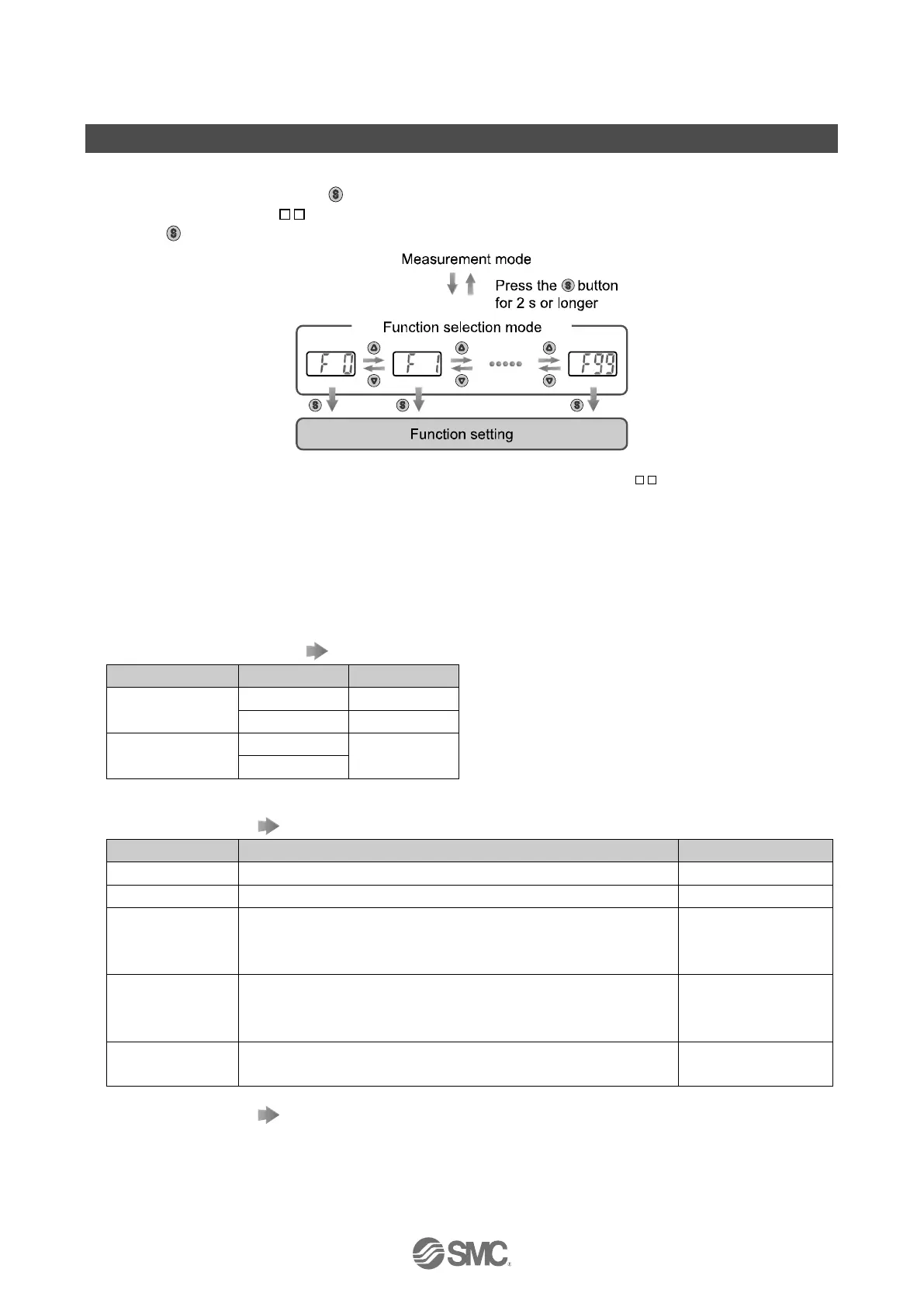

Function Setting
■Function selection mode
In measurement mode, press the button for 2 seconds or longer to display [F 0]. Select to display the
function to be changed, [F ].
Press the button for 2 seconds or longer in function selection mode to return to measurement mode.
: Some functions are not available depending on part number. All functions are displayed with [F ] followed by the function
description. If a function is not available, the function is displayed as [---].
■Default setting
At the time of shipment, the following settings are provided.
If this condition is acceptable, then keep these settings.
To change setting, enter function selection mode.
[F 0] Units selection function Page 27
Symbol
Model
Default setting
Nil or M
ISE40A
MPa
ZSE40A(F)
kPa
P
ISE40A
psi
ZSE40A(F)
[F 1] Setting of OUT1 Page 28
Item
Description
Default setting
Output mode
Select hysteresis mode window comparator mode or OFF mode.
Hysteresis mode
Reversed output
Select reversed output.
Normal output
Pressure setting
Set the ON or OFF value of the switch output.
ISE40A: 0.500 MPa
ZSE40A: -50.7 kPa
ZSE40AF: 50.0 kPa
Hysteresis
Set the hysteresis to prevent chattering.
ISE40A: 0.050 MPa
ZSE40A: 5.1 kPa
ZSE40AF: 5.0 kPa
Display colour
Select the display colour.
ON: Green
OFF: Red
[F 2] Setting of OUT2 Page 31
Same setting as for [F 1] OUT1.
At the output mode, the error detection mode can also be selected.
The display colour is linked to the setting of OUT1, and can not be set for OUT2.
