SMC Networks ZSE40A User Manual

-32-
No.PS※※-OMM0007-H
Pressure Setting
Set the pressure based on the setting procedure
on page 24.
"P" becomes "n" when reversed output is selected.
([P_2]  [n_2])
Hysteresis mode: [P_2]
Window comparator mode: [P2L][P2H]
Press the button to set.
Press the button to set.
Setting of [F 2] operation of OUT2 completed
1: The selected parameter becomes effective after pressing the button.
2: After setting, it is possible to move to measurement mode by pressing the button for 2 seconds or longer.
3: When "Err" is selected in output mode, after normal and reversed display function, the display will return to [F 2].
When "Err" is displayed except for Er2 and 3, switch output.
4: When using with OUT2 turned off, select "OFF" in output mode.

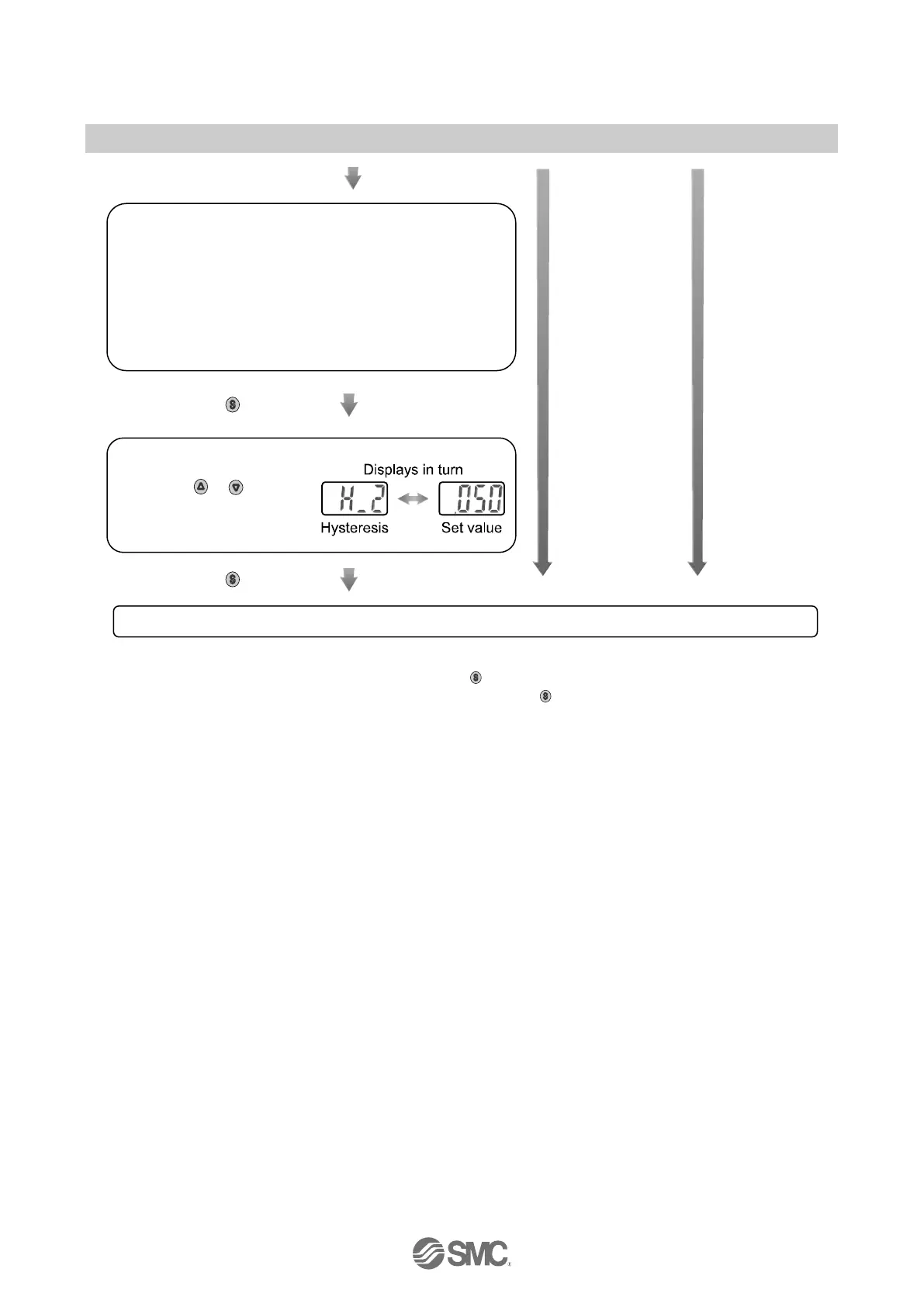

Setting of Hysteresis
Press the
or
button to
select hysteresis.
Move on to setting of
hysteresis.
Return to function
selection mode.
