-62-
No.PS※※-OMM0007-H

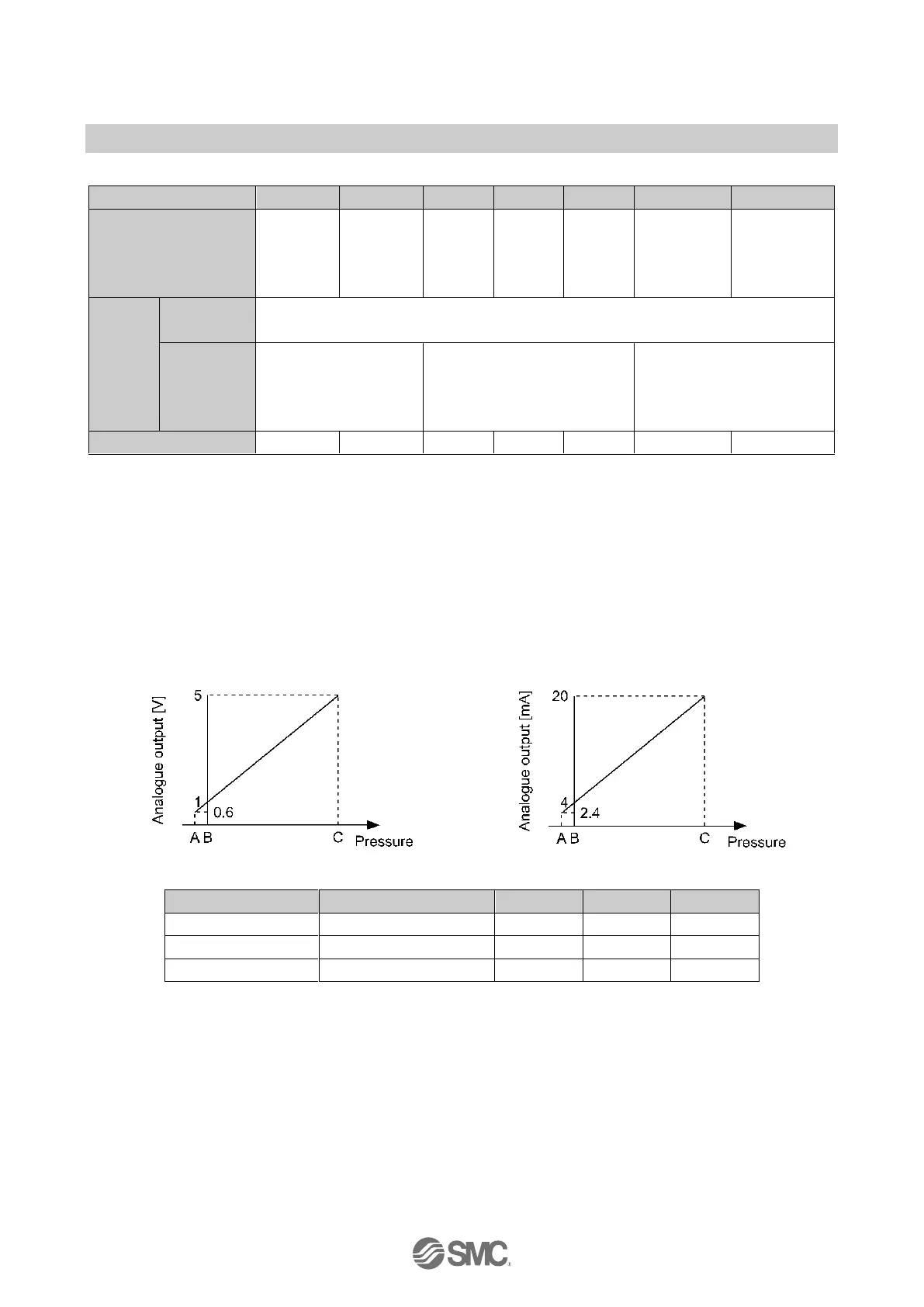

○Piping specifications
Model No.
01
N01
W1
WF1
M5
C4
C6
Port size
R1/8
(with M5
female
thread)
NPT1/8
(with M5
female
thread)
Rc1/8
G1/8
M50.8
(female)
One-touch
fitting 4
One-touch
fitting 6
Material
of
wetted
parts
Pressure
sensing part
Silicone
Piping port
C3602
(electroless nickel
plating)
O-ring: HNBR
ZDC2
O-ring: HNBR
ZDC2, POM, SUS304,
C3604
(electroless nickel plating)
O-ring: HNBR, NBR
Weight
78 g
79 g
97 g
97 g
104 g
101 g
101 g
: The form of the G thread (including the major and minor diameter and pitch of the internal thread) is based on JIS B0202 (ISO228-1).
Products indicated as ISO1179-1 (G thread for hydraulics) or ISO16030 (G thread for pneumatics) are based on JIS B0202
(ISO228-1) for effective depth of thread, seat surface area, surface roughness and squareness.
For ISO1179-1 (G thread for hydraulics), the withstand pressure is specified for each product. SMC do not guarantee the withstand
pressure specified in ISO1179-1, ISO1179-2, ISO1179-3, or ISO1179-4.
For ISO16030 (G thread for pneumatics), the withstand pressure is specified for each product. SMC do not guarantee the withstand
pressure specified in ISO16030.
○Analogue output
Voltage output
Current output
Range
Rated pressure range
A
B
C
Vacuum
0.0 to -101.3 kPa
-
0
-101.3 kPa
Compound
-100.0kPa to 100.0 kPa
-
-100 kPa
100 kPa
Positive pressure
-0.100 to 1.000 MPa
-0.1 MPa
0
1 MPa
