3.6.2 COMPACT Display

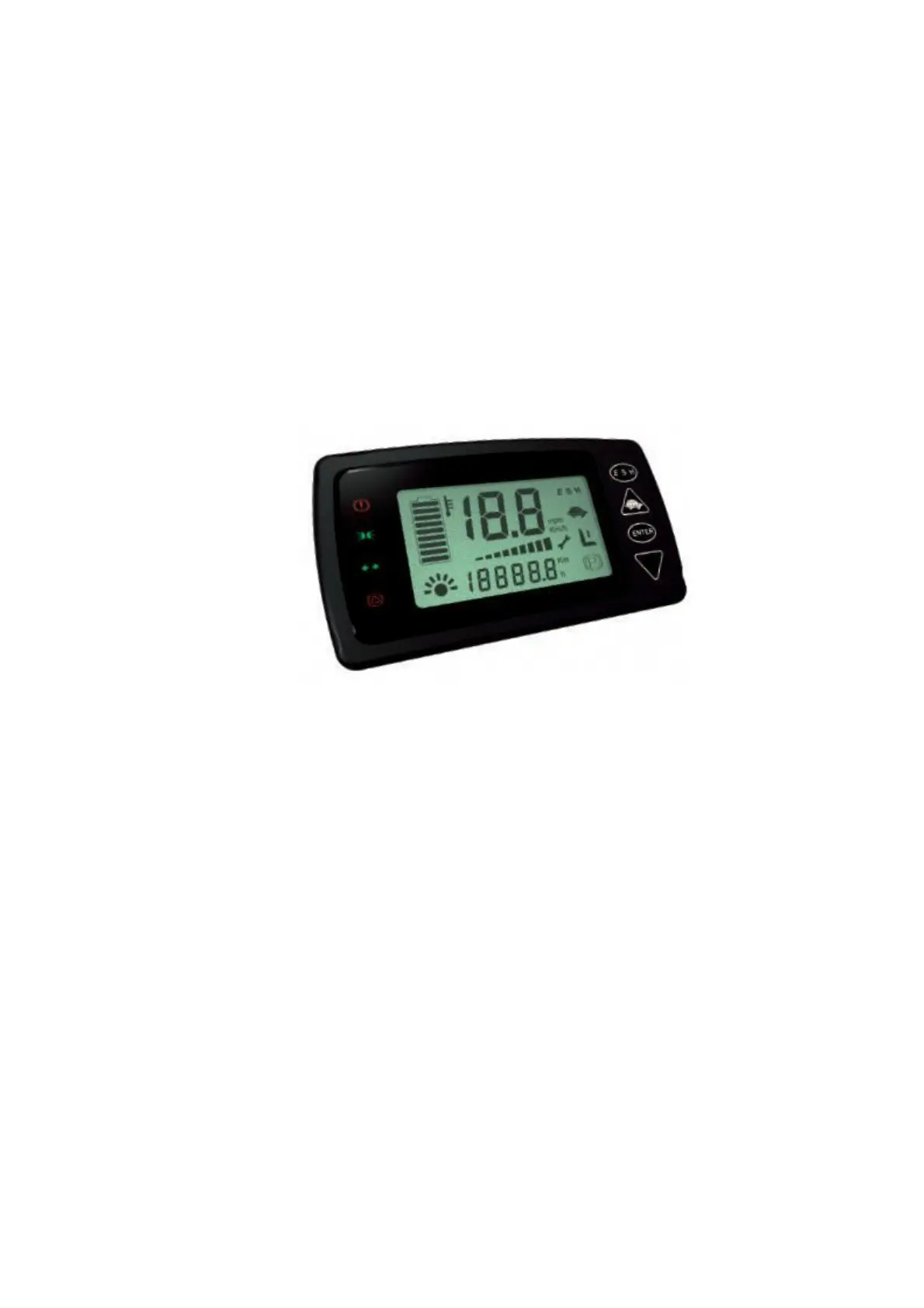

SME manufactures a LCD instrument panel known as COMPACT display.
It is an optional device which shows overall information about the system main analogue
and digital signals (see page 33). It is an optional device, that has to be connected to AC-
M1 board via LIN interface.
Moreover COMPACT display allows operator to calibrate customizable system parameters
(refer to page 25 and page 58)
To find further technical data and useful information about the COMPACT display refer to
its own user manual.
