Installation
82

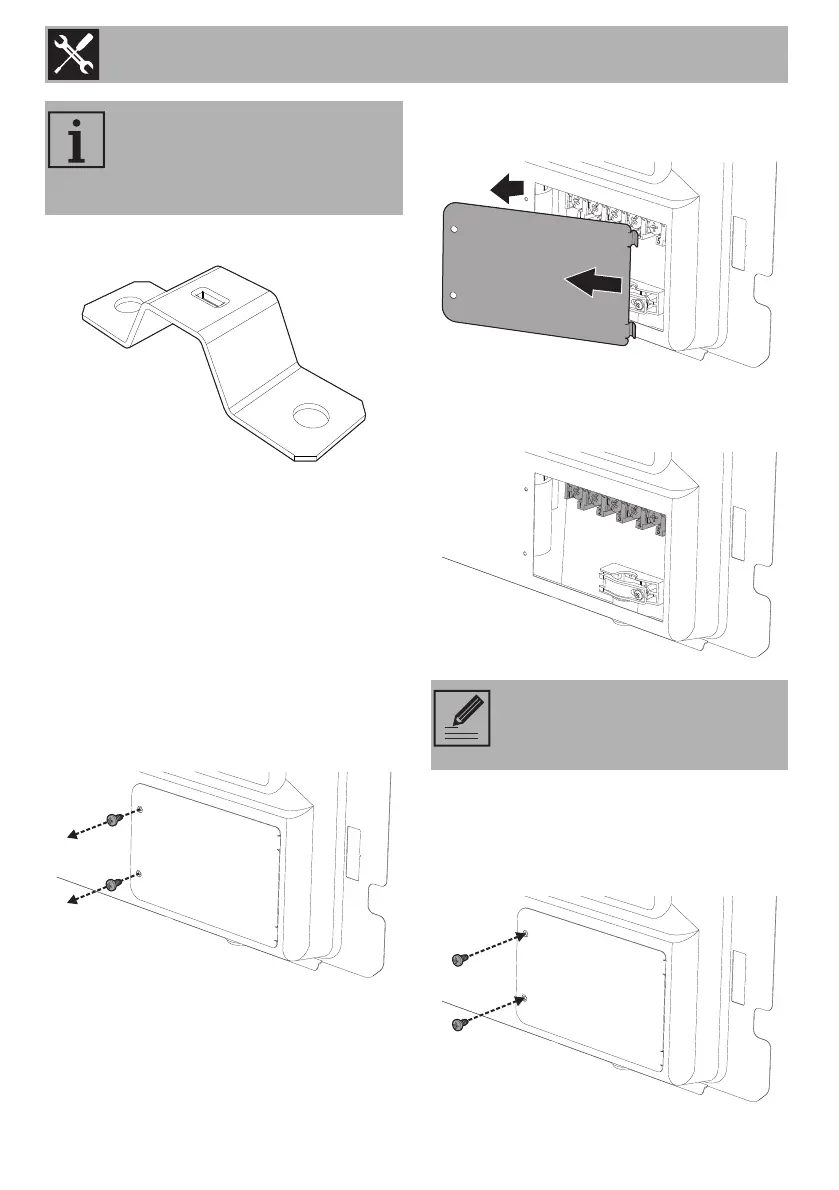

Replacement clamp
In the event of connection to a two- or
three-phase supply, the installed clamp must
be replaced with the one supplied in order
to ensure correct fastening of the cable.
Accessing the terminal board
To connect the power supply cable, you
must access the terminal board on the rear
casing:
1. Remove the screws fastening the plate
to the rear casing.
2. Gently rotate the plate and remove it
from its seat.
3. Proceed with installation of the power
supply cable.
4. When finished, replace the plate on the
rear casing and secure it in place using
the screws that were previously
removed.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
It is recommended to slacken off
the cable clamp screw before
installing the power supply cable.
