Instructions for the Installer
11

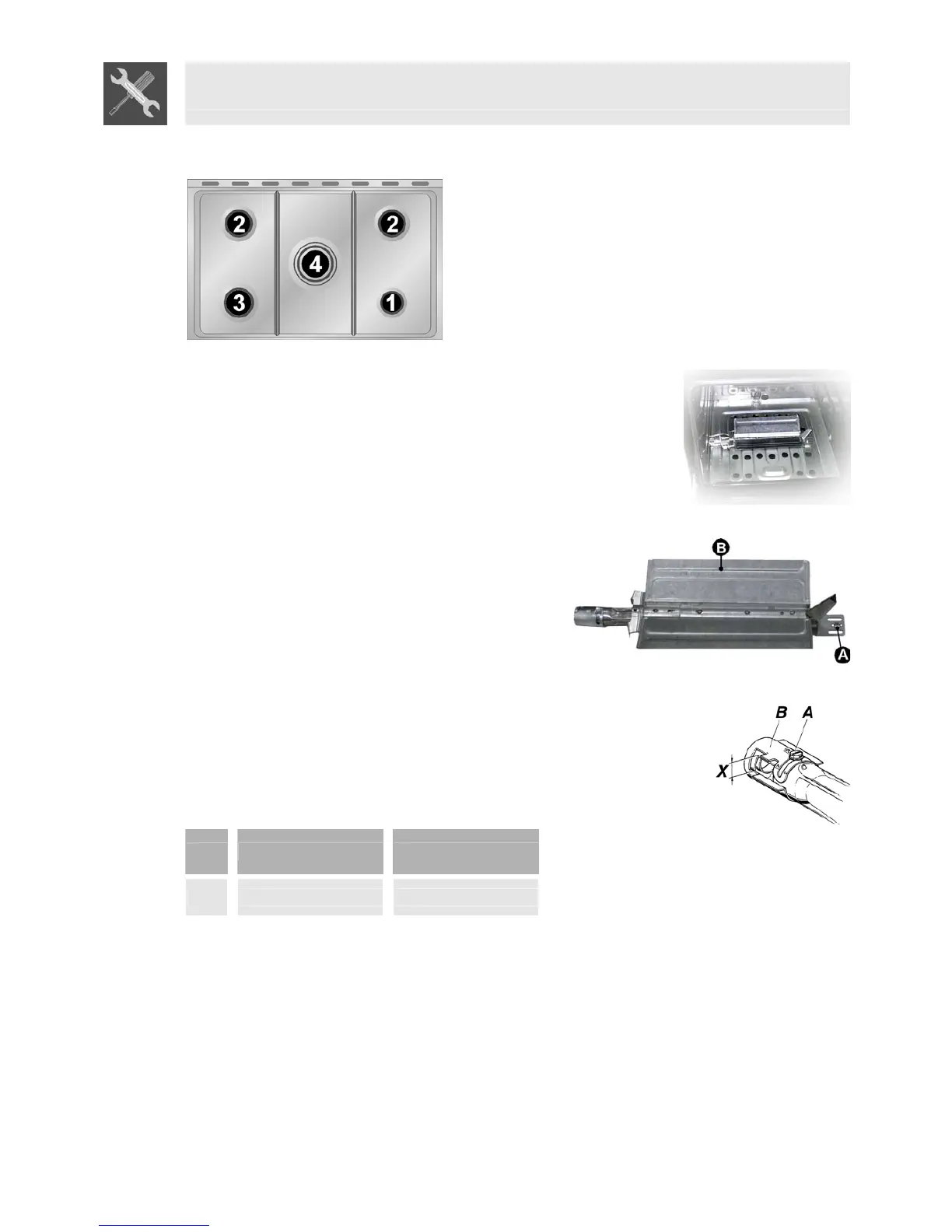

3.3 Hob burner layout
BURNERS
1 Auxiliary
2 Semi-rapid
3 Rapid
4 Triple Flame
3.4 Adjusting the oven burner (for gas oven models only)
To adjust the oven burner, open the oven door and proceed as follows:
• Remove the oven tray and its shelf.
• Lift and extract the oven bottom.
3.4.1 Changing the oven + grill burner nozzle
• Undo the oven burner fixing screw A.
• Push the burner B to the right until the nozzle is
accessible.
• Use a 13 socket wrench to change the nozzle, fitting
the one for the type of gas to be used (see point “3.2
Burner and nozzle characteristics table”).
3.4.2 Adjusting the oven + grill burner primary air flow
• Undo the adjuster screw "A" of the air regulator sleeve.;
• Turn the regulator sleeve "B" into the position for the type of gas to be used,
consulting the table below.
• Tighten the adjuster screw and restore the seals.
• When the operation is complete, reassemble the burner correctly.
NATURAL GAS (N) G30/G31 (LPG)
X =
5 mm 15 mm
