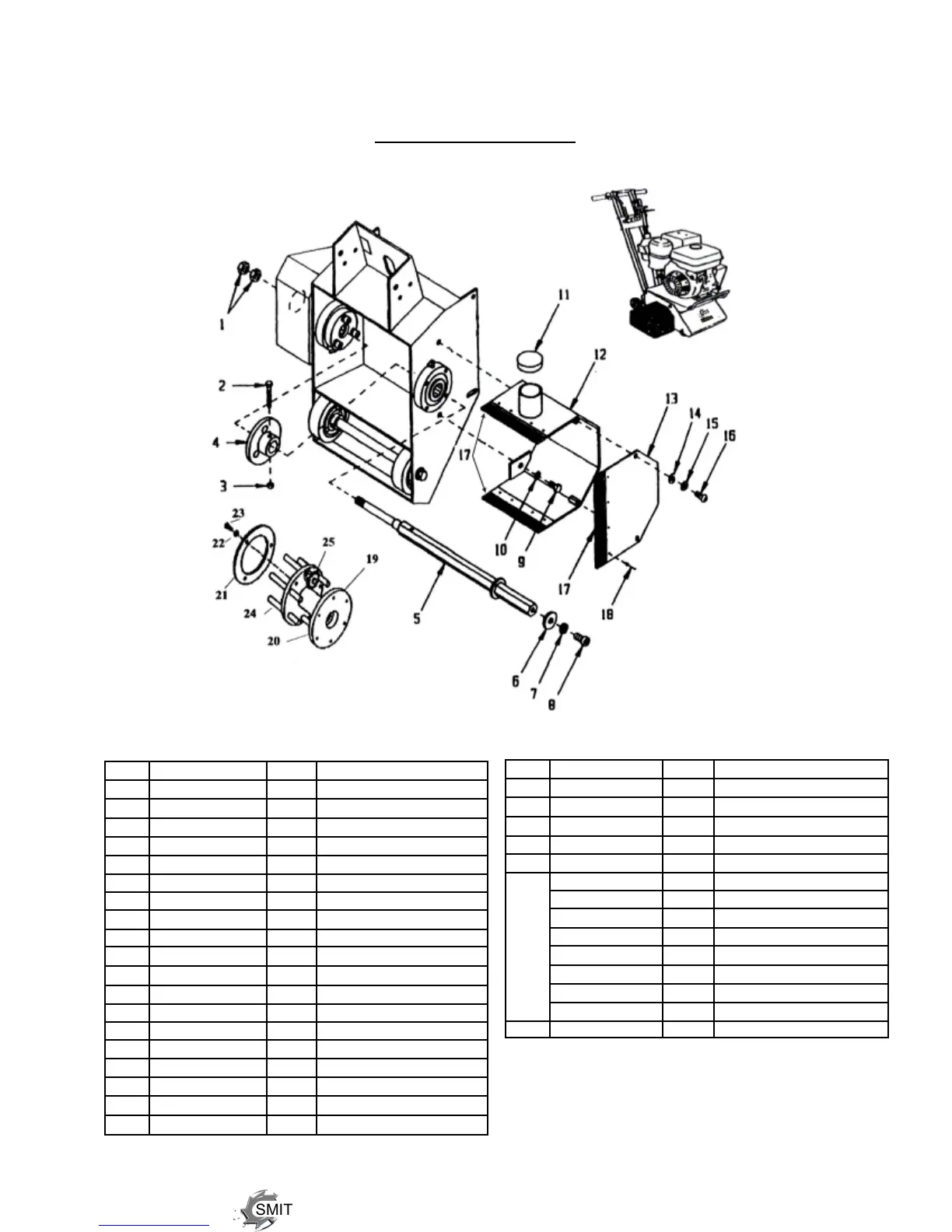

EDGER ASSEMBLY
ILL# P/N Oty. Description ILL# P/N Oty. Description
1 65039  2 JamNut,LH  20 65055  12 Bushing
2 11517 1 Cap Screw 21 65054 2 Retaining Plate
 3 10807  1 LockNut  22 10801  6 LockWasher,5/16
4 65026 1 Driver Flange 23 10053 6 Cap Screw, 5/16
5 65025 1 Edger Shaft 24 66043 6 Cutter Shaft
6 66011 1 Retaining Washer 25 12230 $ Spacer, 1/2”
7 10420 1 Lock Washer HS1000™ $ Steel Beam Cutter
8 10419 1 Socket Head Screw HS1008™ $ Steel Star Cutter
9 10907 2 Cap Screw CF2516™ $ 6 Spike Carbide Cutter
10 10811 2 Lock Washer CF2535™ $ 5 Edge Carbide Scraper
11 65021 1 Cap Plug CF2616™ $ Large 6 Spike Carbide*
12 65023 1 Cover Assembly CF2618™ $ 8 Spike Carbide Cutter*
13 65024 1 Side Access Panel CF2150™ $ 6 Edge Carbide Scraper*
14 10213 2 Flat Washer E6505 1 Edger Drum Complete
15 10801 2 Lock Washer
16 10627 2 Socket Screw $ Refer to cutter set-up on pages 13-14
17 65029 1 Set of 3 Brushes
18 10128 12 Pop Rivet *Use large cutters to remove more than 1/8” per pass.
19 66040 1 Drum Assembly
