Smith SPS8 - Engine & Pulley Assembly

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
1/2009
21
Please note that
due to improvements
and changes in the
equipment, the
illustrations shown
may be different than
the actual machine.

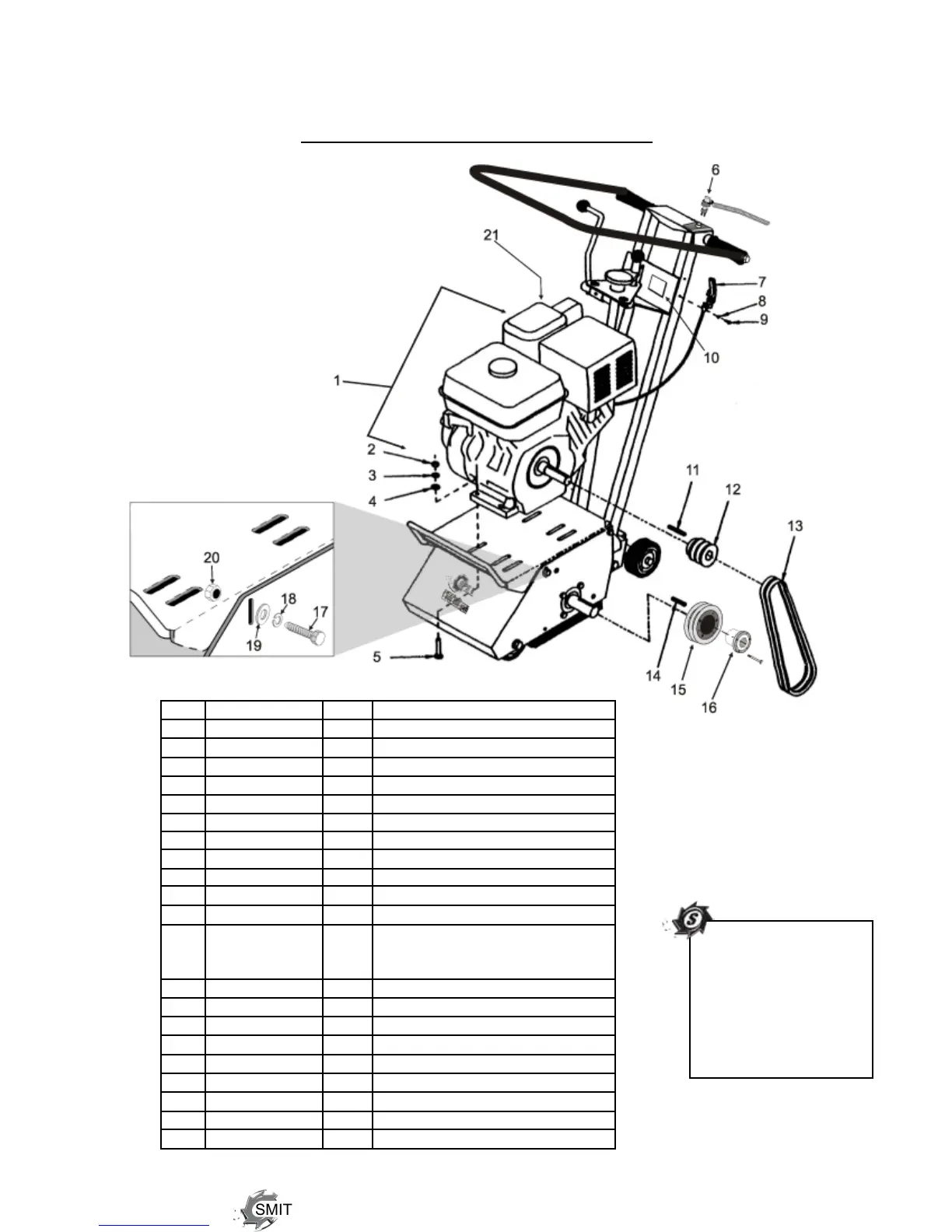

ENGINE AND PULLEY ASSEMBLY
ILL# P/N Oty. Description
1 E-15027 1 Engine, 9 HP Honda
  2 LL.S10C.127 4 NYLock,3/8-16
3 110811 4 Lock Washer, 3/8
4 110025 4 Flat Washer, 3/8
5 1010817.1 4 Carriage Bolt
6 50010 1 Engine Kill Button
7 1036110 1 Throttle Cable
8 10831 2 Washer, Internal #10
9 10828 2 Hex Screw, 10/32 x 1/2
10 68055 1 Engine Meter (optional)
11 10307 1 Key, 2-1/4
12 10553 1 Sheave, Upper
12.1 176025 1 Fender Washer, 12 mm
12.2 176029 1 Hex Bolt, 7/16-20 x 1”
13 81007 2 Belt
14 10307 1 Key 2”
15 65018 1 Sheave, Bottom*
16 10505 1 Bushing Sheave*
17 10802 2 Carriage Bolt
18 10045 2 Lock Washer
19 110025 2 Flat Washer, 3/8
  20 LL.S10C.127 2 LockNut,3/8-16
  21 15028.0 1 Deector
*Must be ordered together.
Engine Mount Plate
Belt Tension
SPS8
