Smith SPS8 - Cutter Set-Up Diagrams

SPS8
SMITH Manufacturing 1-800-653-9311 www.SmithMfg.com
14
1/2009
SPECIAL TUNGSTEN CARBIDE MILLING SCRAPER
CM2535™ CM2150™

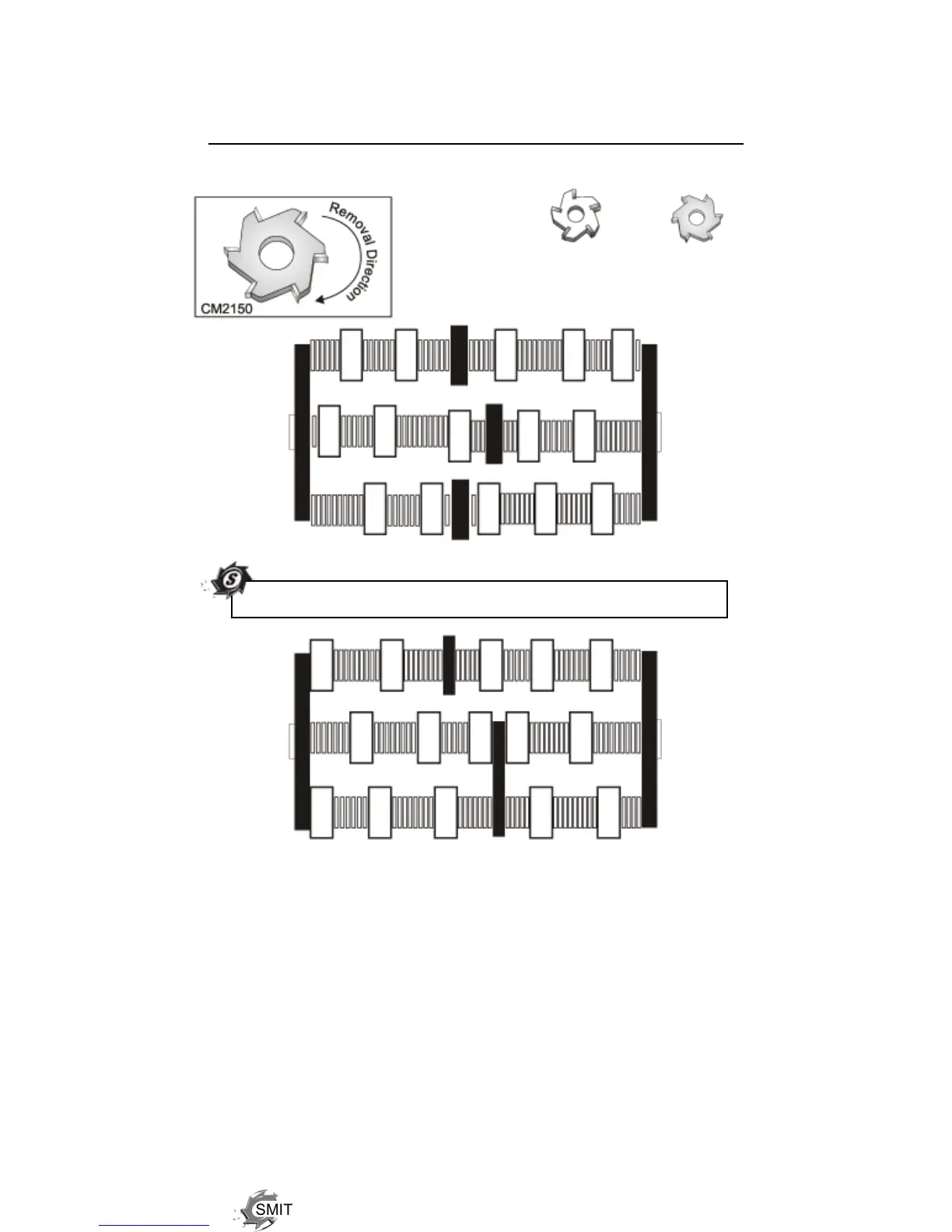

CUTTER SET-UP
      (Note:QuntityofScrapersmayvary).
Bushed Drum
           P/N:65050
Flip Charts upside-down for set-up of other three shafts.
Drum
           P/N:65051
MILLING SCRAPER USE INSTRUCTIONS:
Milling scrapers (CM2150™) are not made for cutting into portland cement surfaces. They are made
forremovingmaterialsinoronsoftasphaltorremovingthicklmcoatingsontopofsmoothconcrete
surfaces only. If you need to cut concrete, please use SMITH’s Ultra-Premium tungsten carbide spike
cutters (CF2616™ and CF2618™). Make certain the special milling scrapers re loaded on the drum
intheproperdirection,wherebytheleadingcarbideedgewillcutrst.Loadingthescrapersback-
wards will damage the cutters and the drum.
USE A FORWARD DIRECTION ONLY.
