ROTO-PEEN ASSEMBLY (optional)
an alternative to shot blasting

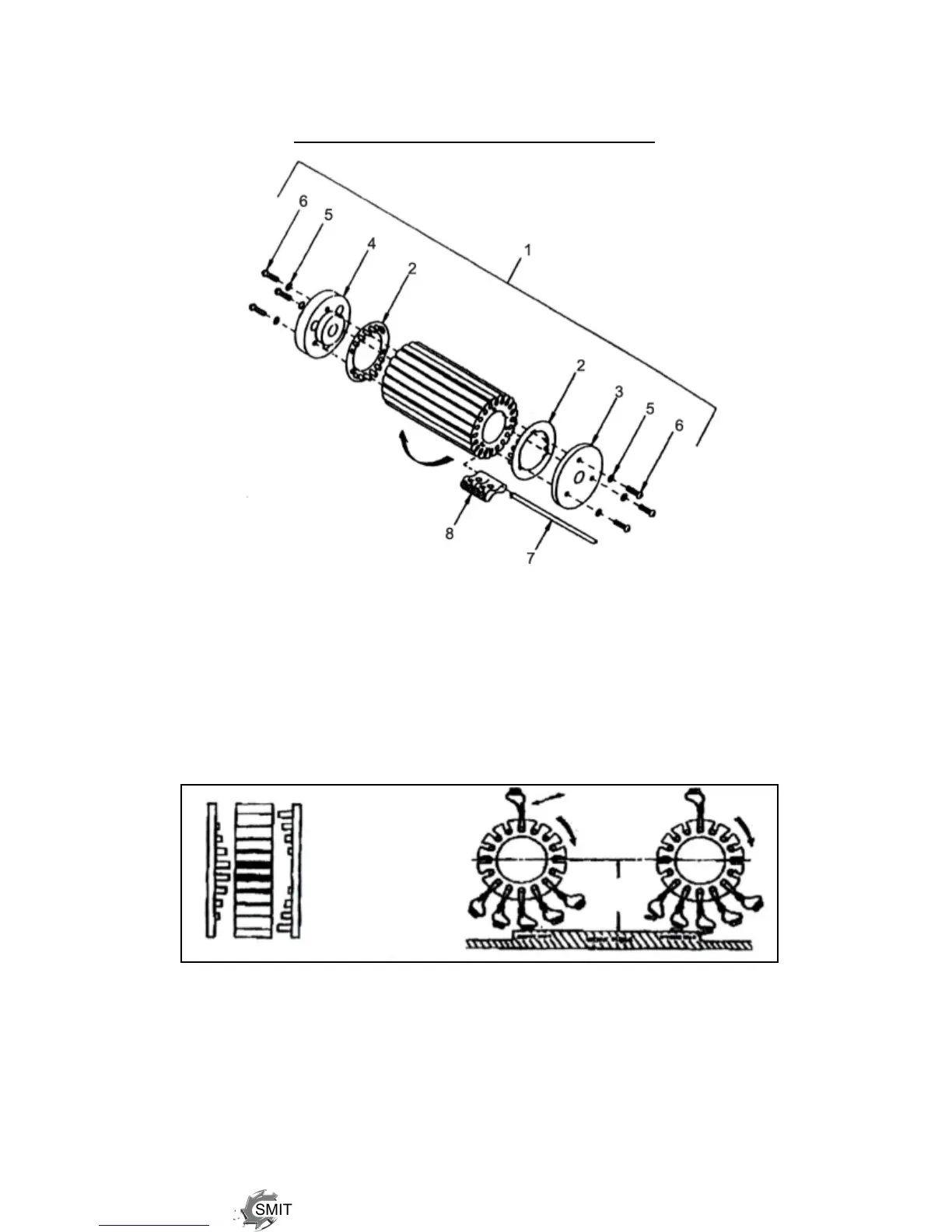

ILL# P/N Qty Description
1 65060 1 Rotopeen hub (1-8)
2 25060 2 Ring Spacer
3 65067 1 End Cap
4 65068 1 Driver Flange
5 10451 6 Washer, Internal 1/4
6 10871 6 Screw, 1/4-20 X 1
7 65065 20 Keeper Pin
8 25022 35 Type D-2” (1/2 loading)
 1.Installtheaponeveryotherslotwiththesidewithprinting(front)facingthedirection
of rotation.
 2.Spacerringsfacingthehubmustbeoppositeeachotherandoffsetaploadingby1/4”.
3. Set the center point of the drum 3-3/8” above the work surface.
4. Recommended RPM is 1725.
 5.Hookupadustsystemtothevacuumporttokeeptheapscleanandcool. 
Hub
3-3/8”
(86mm)
Spacer Ring
Position
Be sure to position
“long studs” on spacer
ring #1 opposite “open
space” on spacer
ring #2.
SPS8
