HANDLE ADJUSTMENT INSTRUCTIONS
The SPS machines may be ordered with optional adjustable handlebars. The handlebars are
equippedwithahigh-densityvibrationsuppressionmaterialtominimizeoperatorfatigueand
increase comfort level when operating equipment.
To adjust the handlebars to a new position for different height operators please follow these steps:

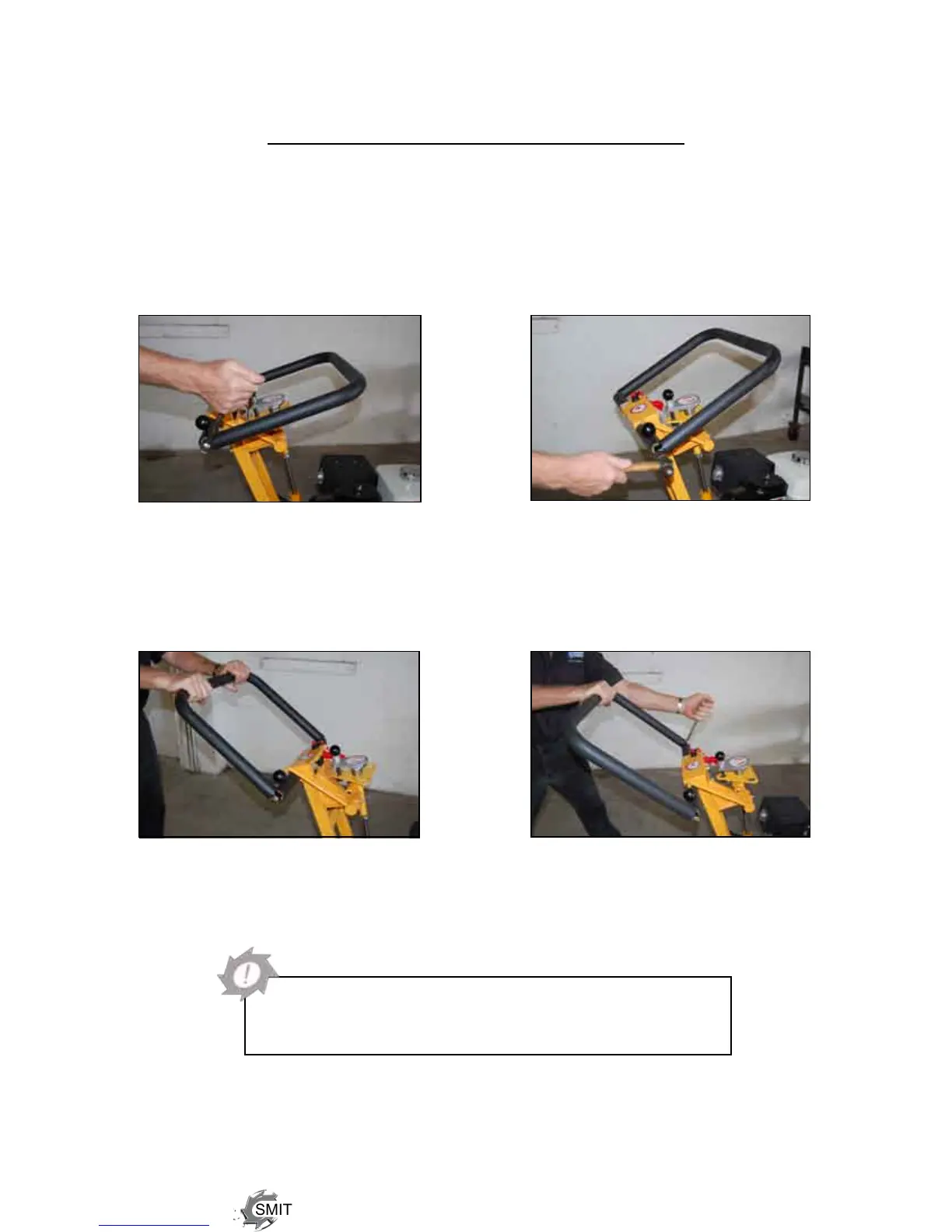

Using a box wrench or socket,
loosen the bolts on both sides
of the handlebars two to three
turns only.
Use a hammer to lightly tap the
end of the bolts to move them
in slightly. (Tapping loosens the
tapered inner plug so they may
be easily re-positioned.)
Stand behind the machine and
set the bars to a comfortable
operating height.
Re-tighten the two bolts to lock
the handlebars in the new posi-
tion.
CAUTION: Neveroperatewithhandlebarsloose.
The bolts must be fastened tightly assuring the handle
is locked into position.
