42
9.6.2.3 Place the bushing HM8210.301.3 on the upper end of the motor drive unit, fix with 4 pieces of
M6×10 set screws, and 4 arcs to avoid 4 bolts. (See Figure-9-8)
9.6.2.4 Put the two shield covers outside of the driving shaft with the gaps at both ends, and the thicker one
(HM8170.301) on the top. Then connect it to the middle of the bevel gear box and motor drive unit
according to the figure on the right. (See Figure-9-9)
9.6.2.5 Place the lower shield cover HM8170.302 outside of the bushing HM8210.301.3, 4 gaps to avoid 4
bolts. (See Figure-9-10)

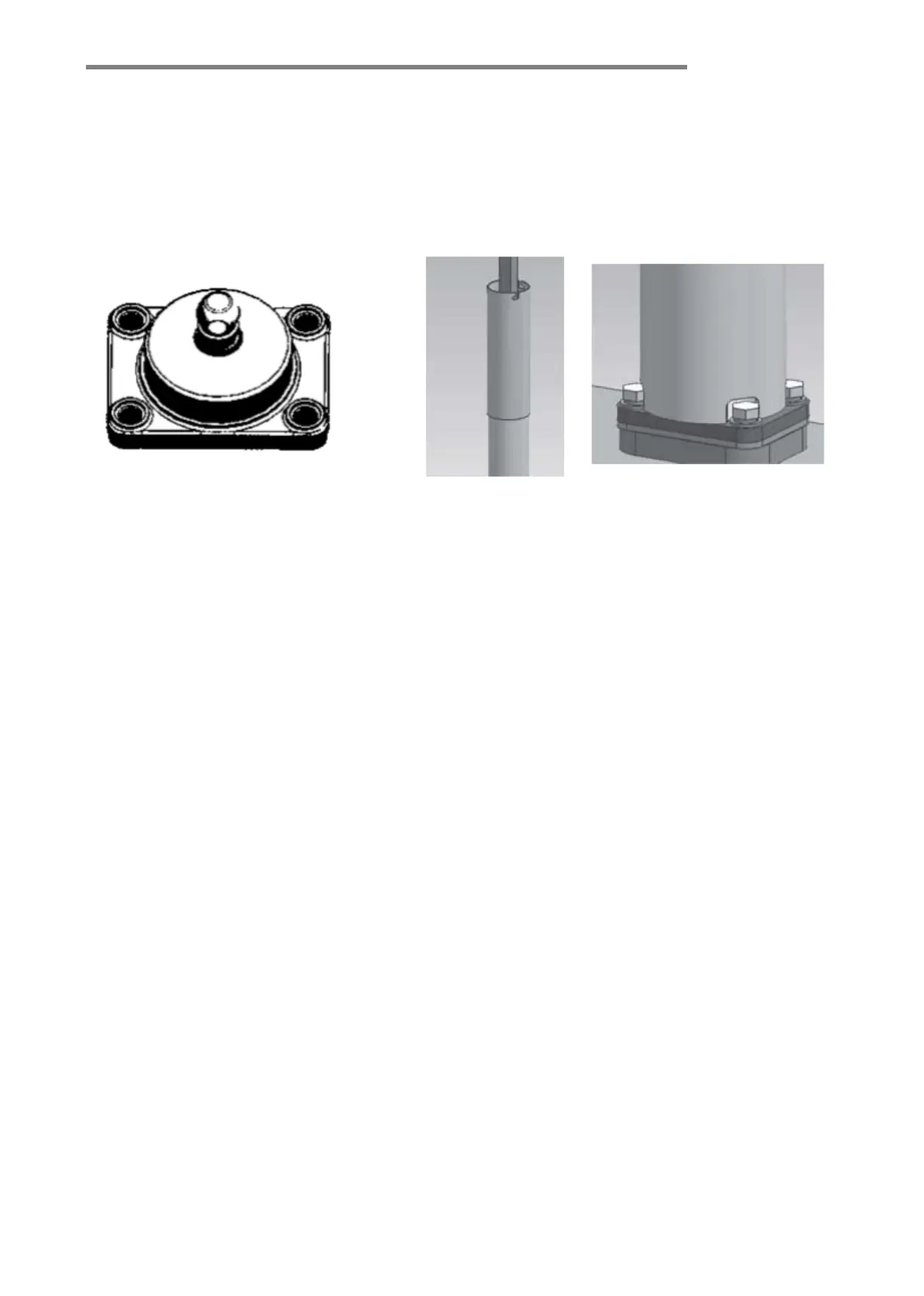

Figure-9-8 Figure-9-9 Figure-9-10
